Inhibitor Switch N & P Positions

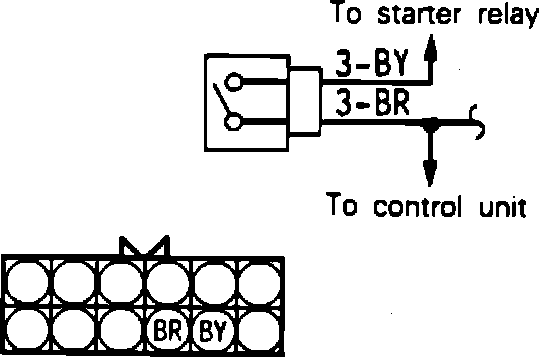

Fig. 15 Inhibitor N & P Position Check. 1989-91 Montero:

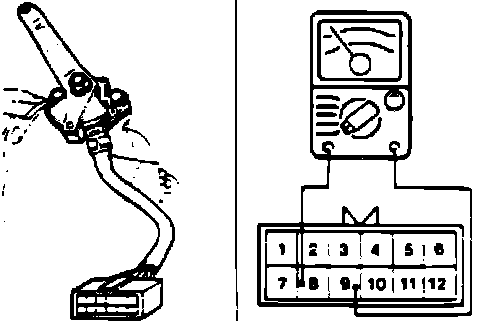

Fig. 16 Inhibitor N & P Position Check. Van:

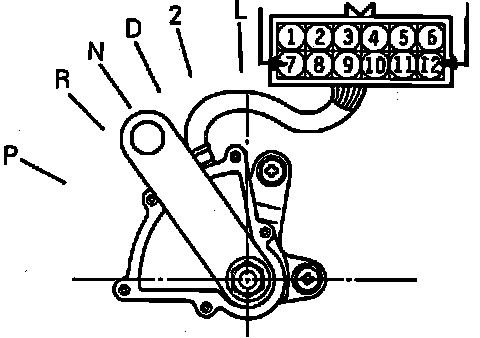

Fig. 17 Inhibitor N & P Position Check. Sigma:

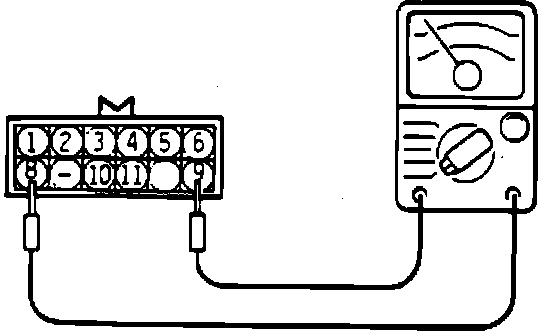

Fig. 18 Inhibitor N & P Position Check. Diamante, Eclipse, Expo, Galant, Mirage, Pickup & 3000GT:

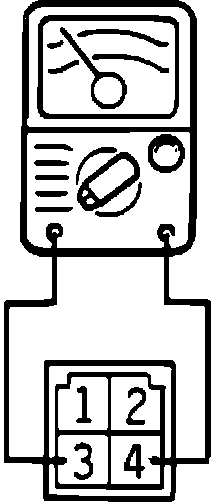

Fig. 19 Inhibitor N & P Position Check. 1992 Montero:

1. Disconnect electrical connector from switch.
2. Place selector lever in the N, then P ranges to check switch. Check continuity between terminals as shown in Figs. 15 through 19.
