Removal and Installation Steps

Camshaft Position Sensor - Removal And Installation:

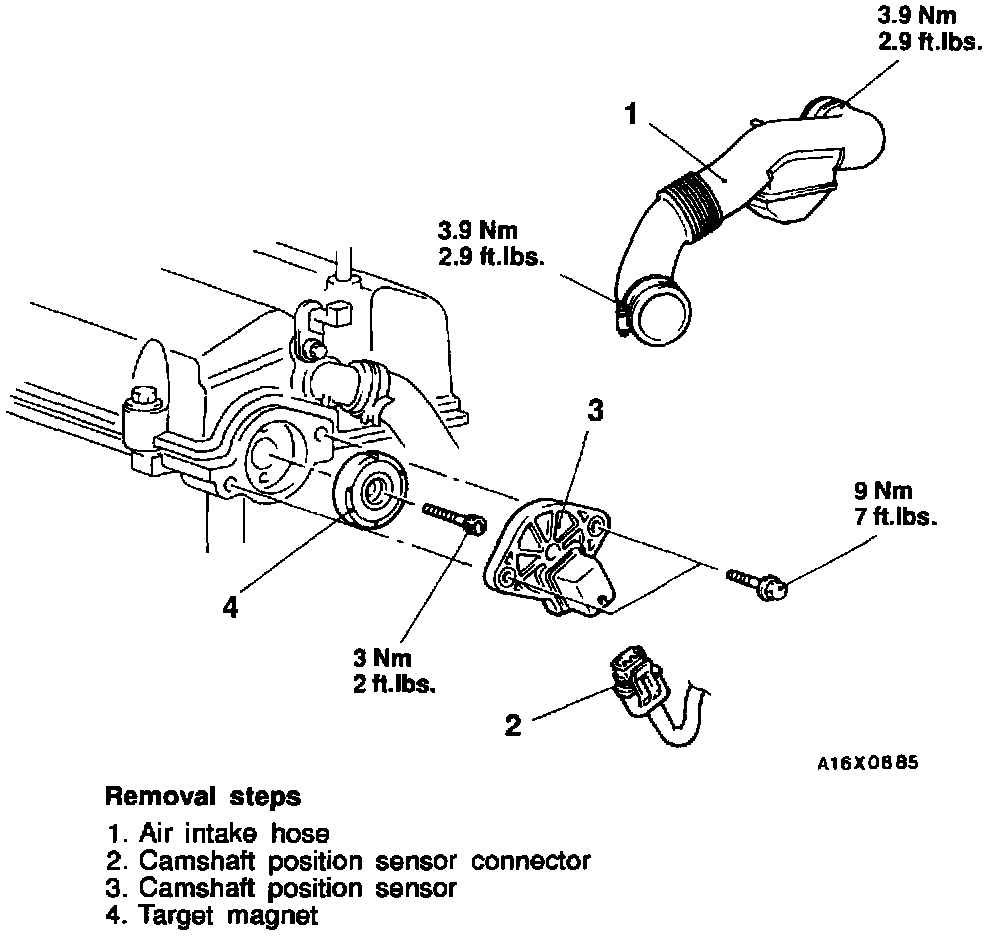

REMOVE
1. Air intake hose
2. Camshaft position sensor connector
3. Camshaft position sensor
4. Target magnet

INSTALL
1. Target magnet
2. Camshaft position sensor
3. Camshaft position sensor connector
4. Air intake hose
