Ignition Cable: Service and Repair

Ignition System - Removal And Installation:

Ignition Cable Replacement
Improper arrangement of ignition cables will induce voltage between the cables, causing mis-firing and development of a surge at acceleration in high-speed operation. Therefore, be careful to arrange the spark plug cables properly by the following procedure:

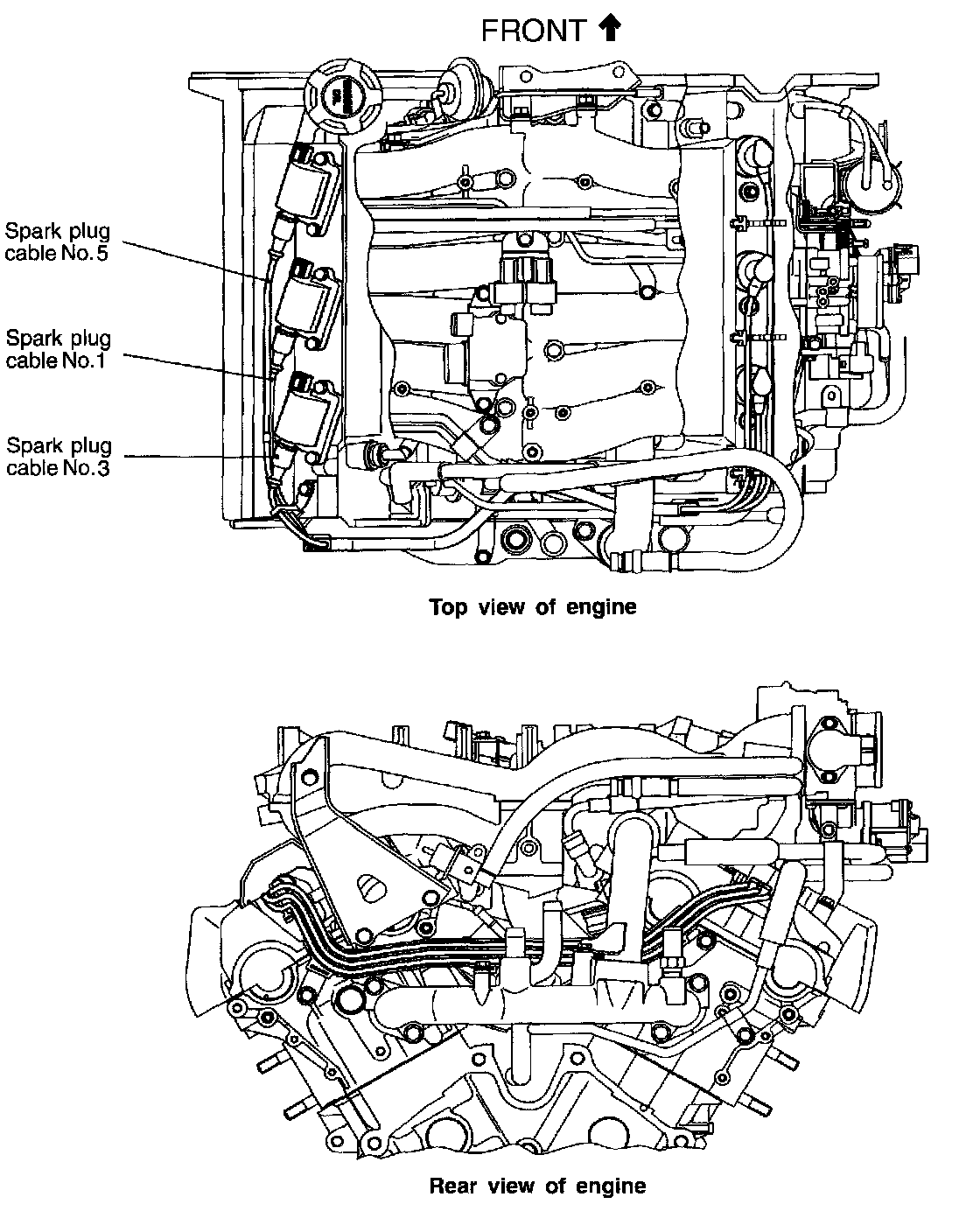

1. Install the ignition cable clamps as shown in the illustration.
2. The numerals on the support and clamp indicate the spark plug cable number.
3. Pay attention to the following items when the spark plug cables are installed.
- Install the cables securely to avoid possible contact with metal parts.
- Install the cables neatly, ensuring they are not too tight, loose, twisted or kinked.
