Engine Control Module: Locations
Passenger Compartment Components:

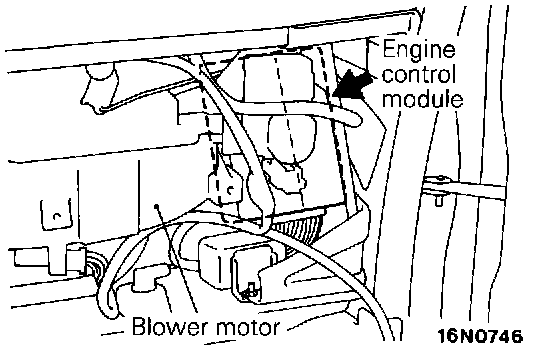

Engine Control Module:

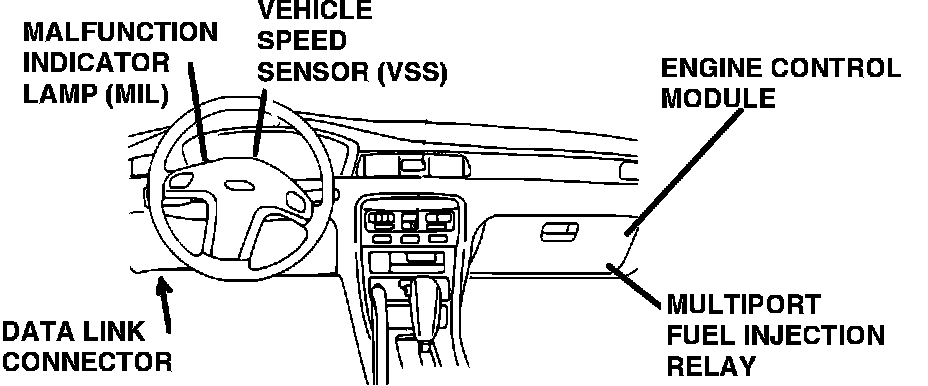

The Engine Control Module (ECM), is located in the right side of the dash, behind the glove box.
