Component Tests and General Diagnostics

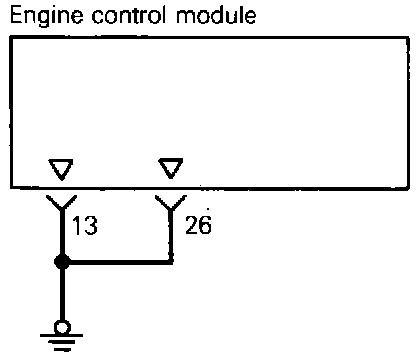

ENGINE CONTROL MODULE POWER GROUND
OPERATION
Grounds the engine control module.

TROUBLESHOOTING HINTS
If the ground wire of the engine control module is not connected securely to ground, the unit will not operate correctly.

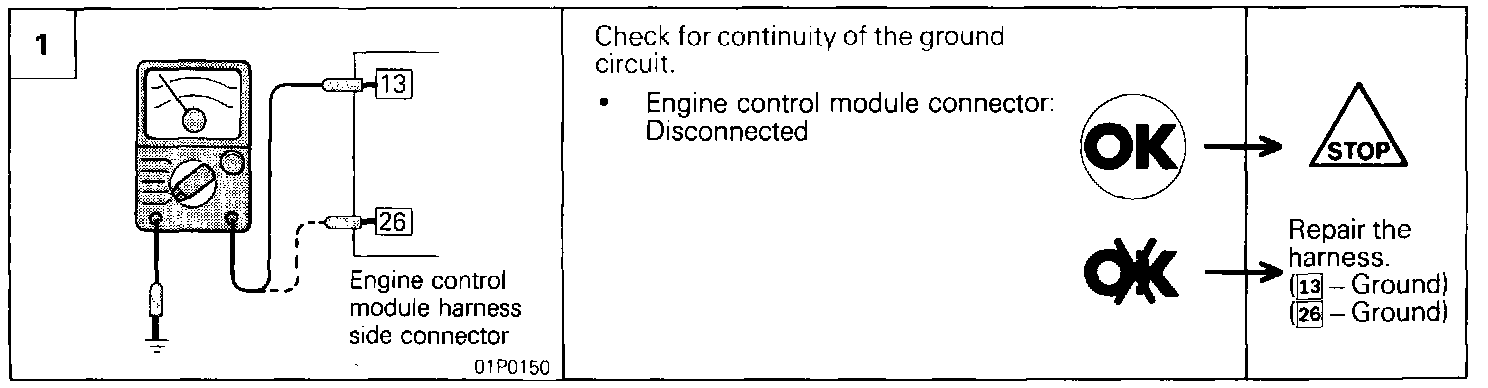

HARNESS INSPECTION
