PCM Connector - Identification Revised

NO: TSB-97-13A-005
DATE: April, 1997
MODEL: 1996 Galant

SUBJECT:
CORRECTED TERMINAL AND CONNECTOR NUMBERS (MFI TROUBLESHOOTING) - SERVICE MANUAL REVISION

[TSB Revision TSB-97-13-05]

PURPOSE
This bulletin revises various terminal and connector numbers in the MFI Troubleshooting section of the 1996 Galant Service Manual, Volume 1.

Write the TSB revision number of this bulletin in the TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1996 Galant

AFFECTED SERVICE MANUAL
1996 Galant Service Manual, Volume 1, Pages 13A-26, 13A-27, and 13A-28

SERVICE MANUAL REVISION

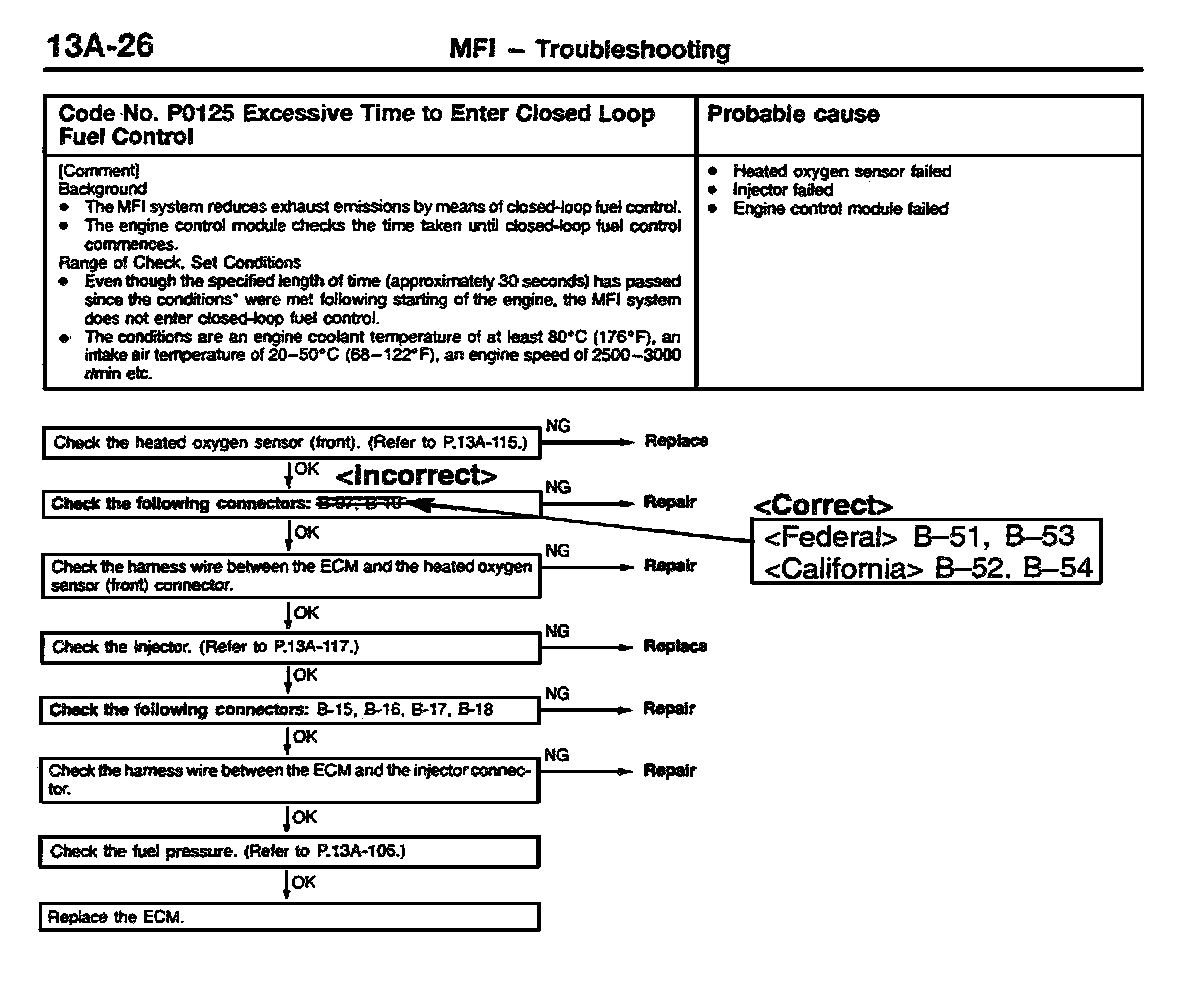

1996 Galant Service Manual, Volume 1, Page 13A-26
Correct the terminal and connector numbers as shown.





1996 Galant Service Manual, Volume 1, Page 13A-27
Correct the terminal and connector numbers as shown.

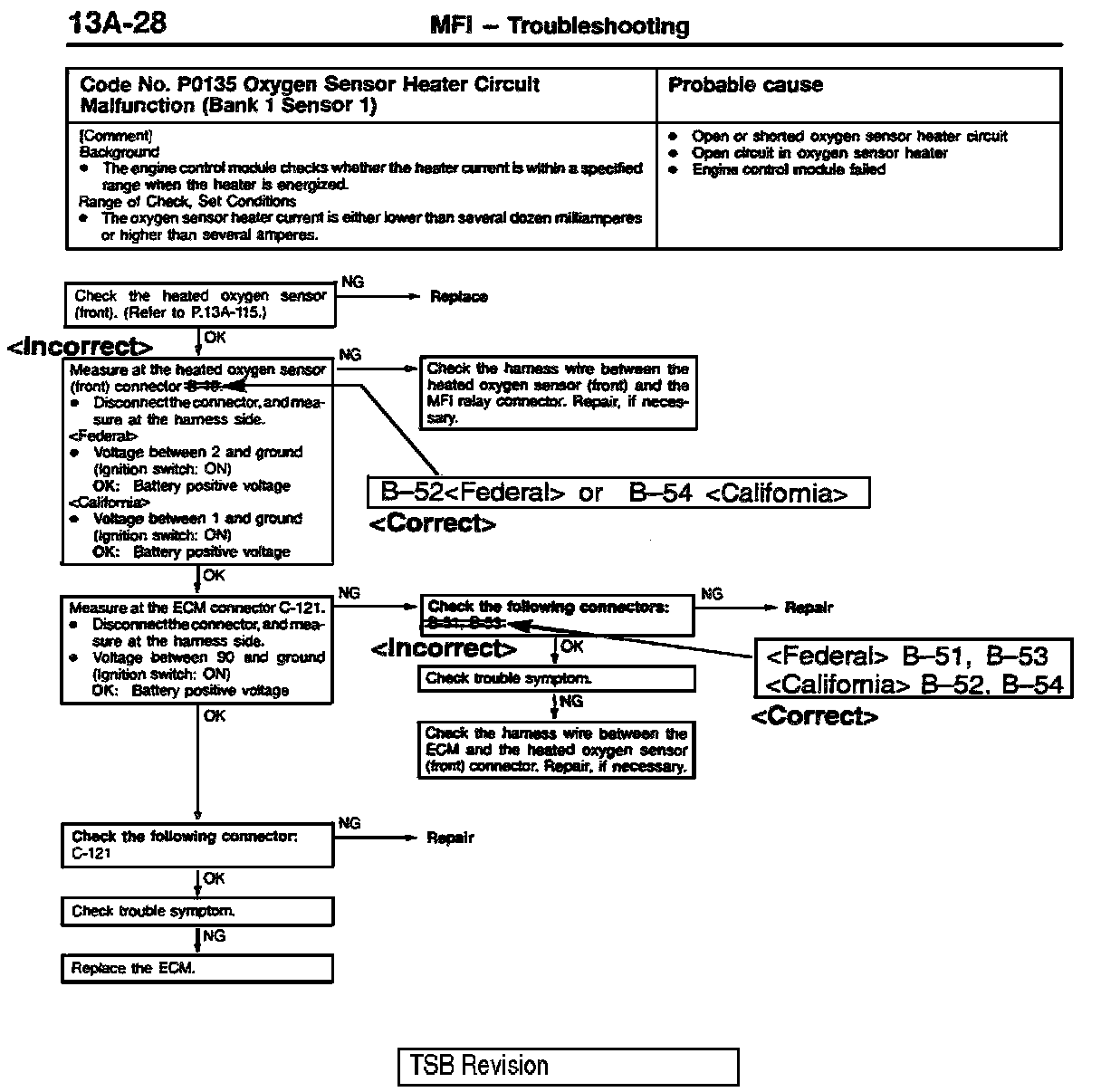

1996 Galant Service Manual, Volume 1, Page 1 3A-28
Correct the terminal and connector numbers as shown.
