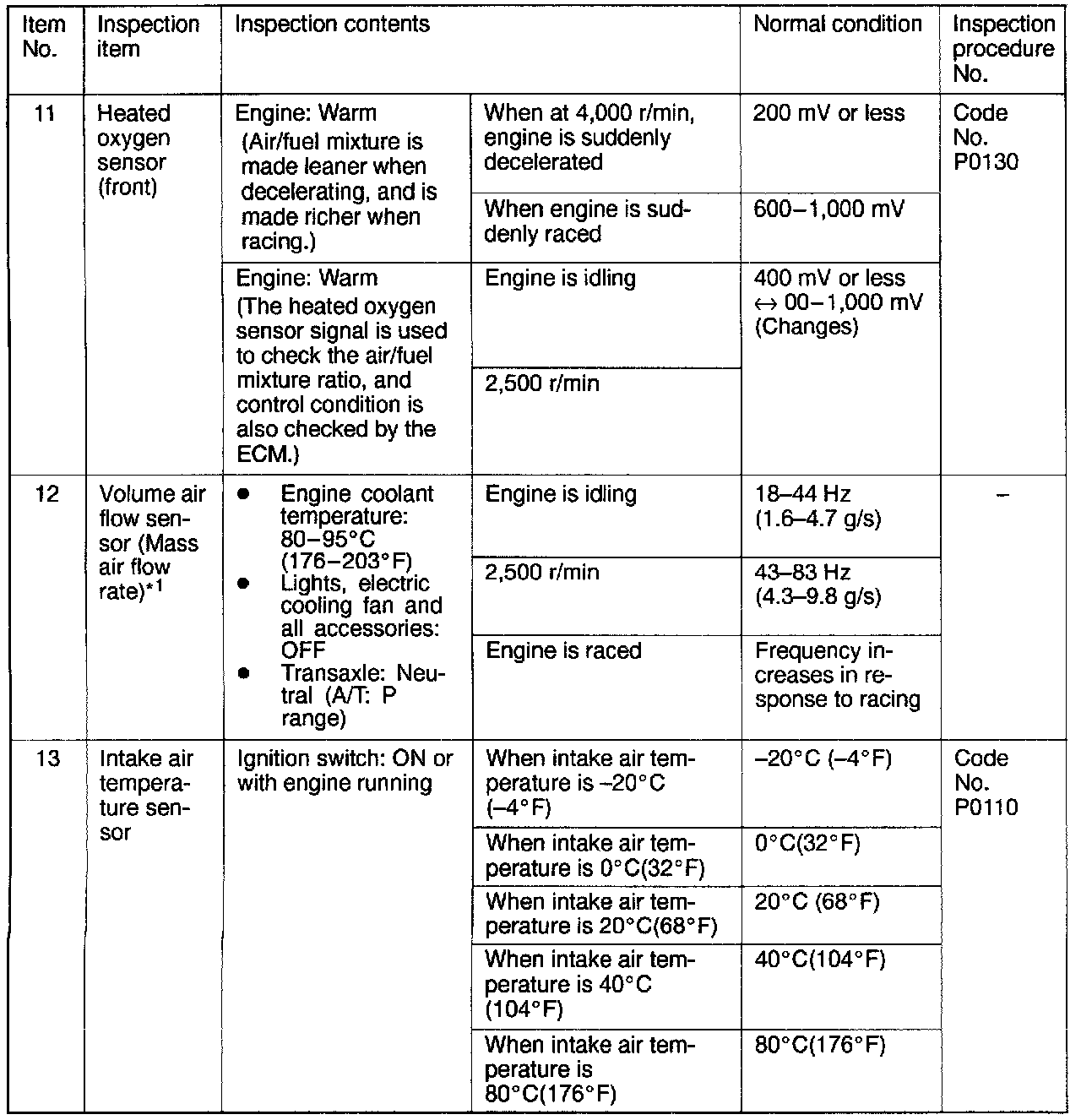

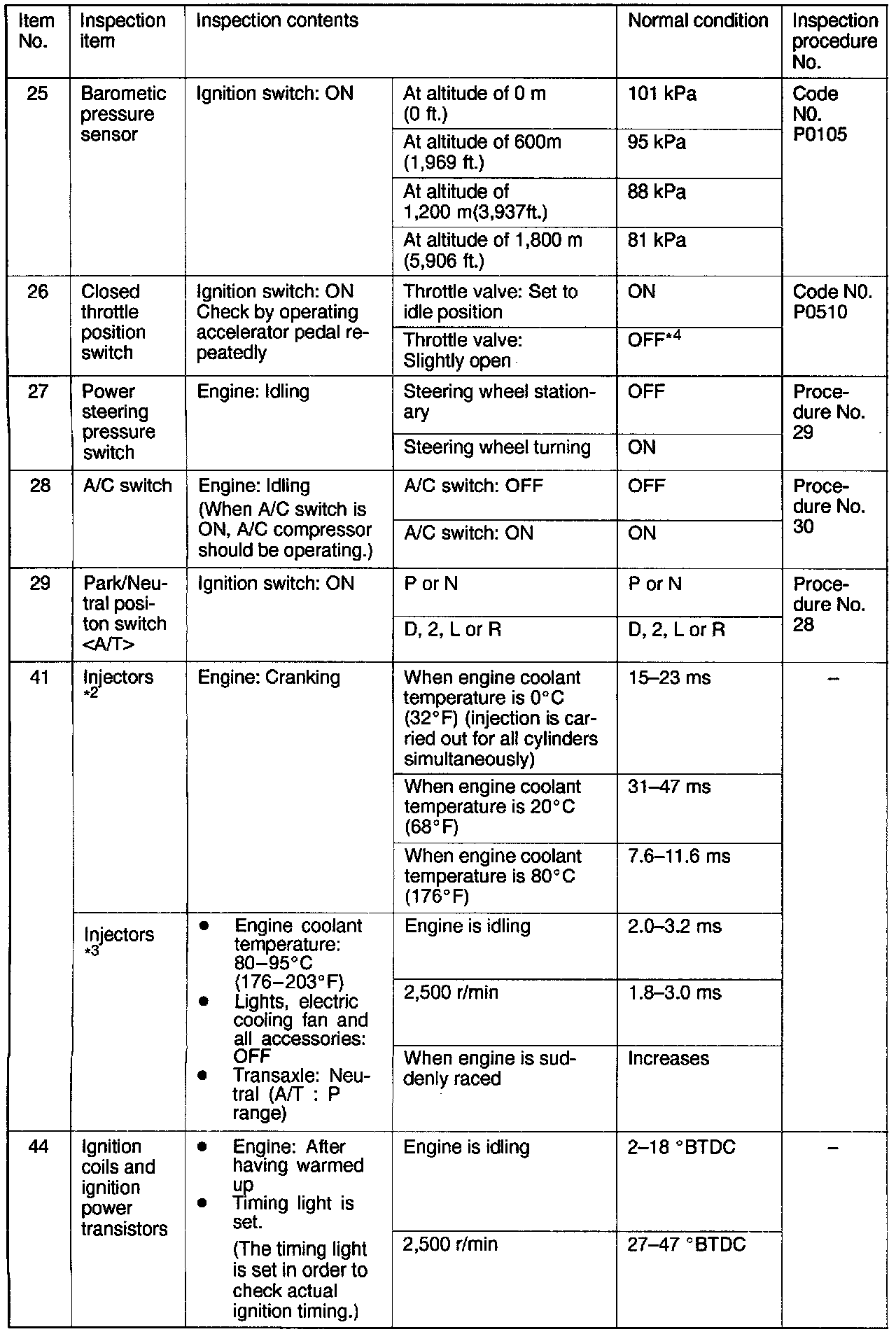

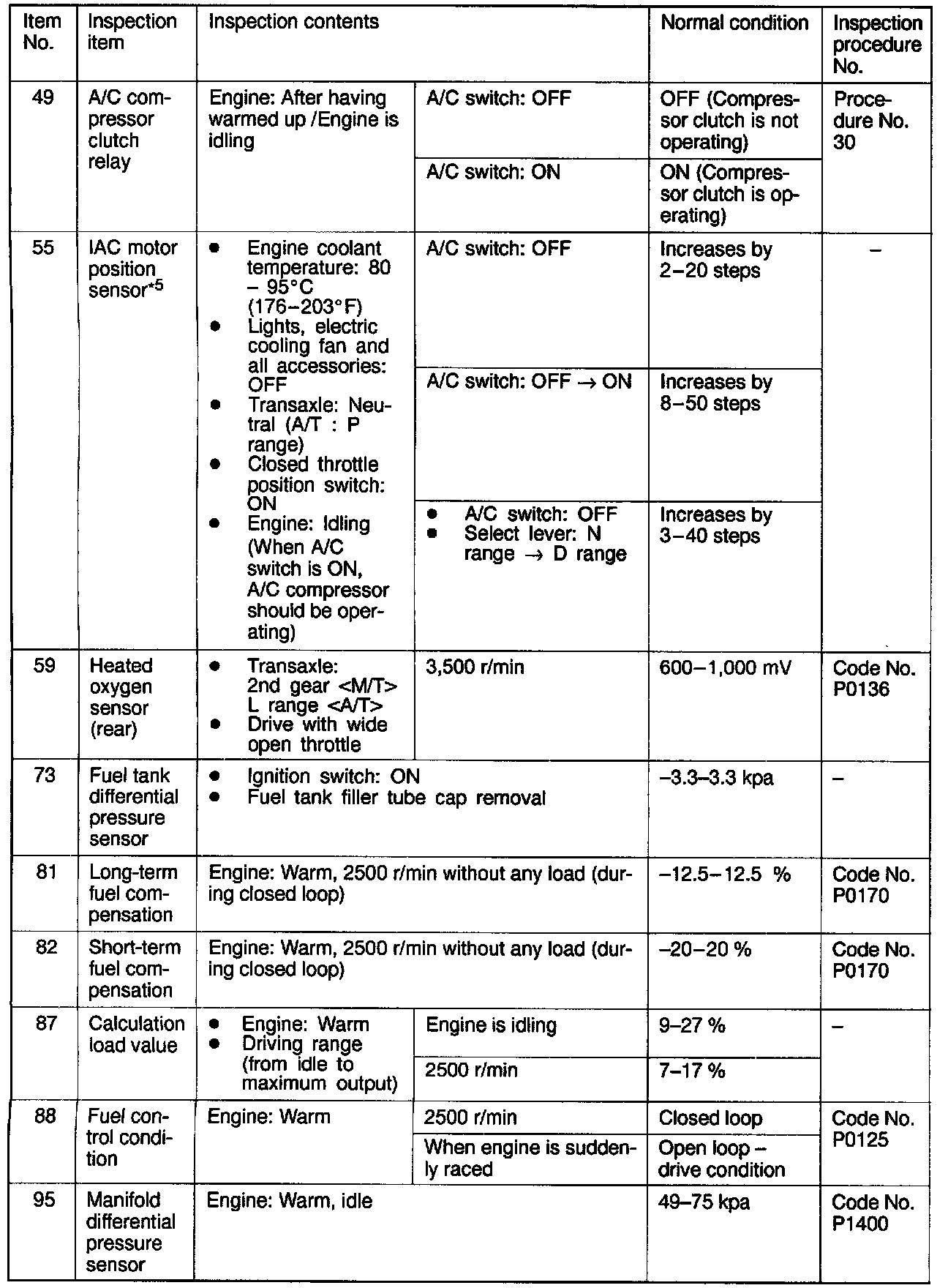

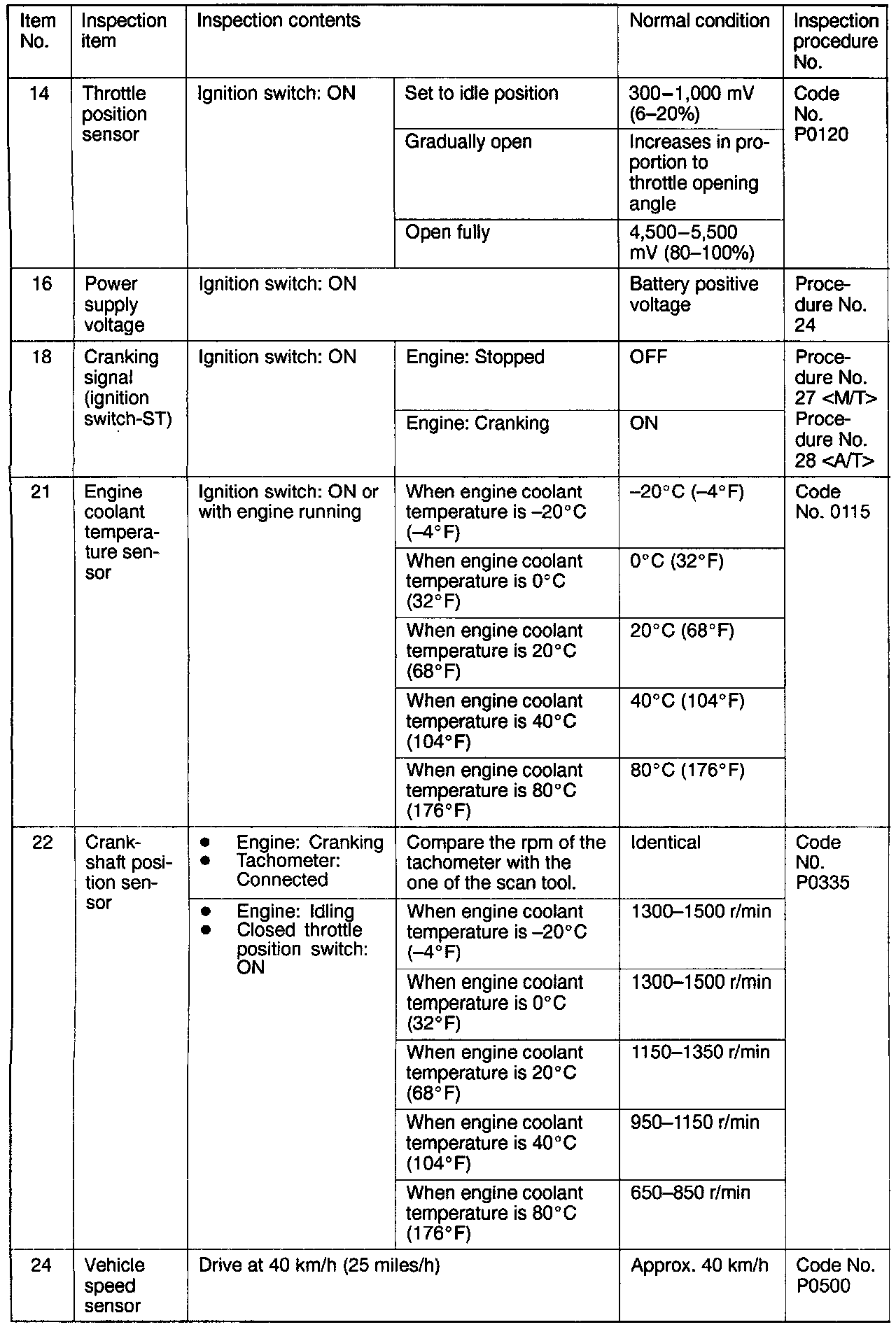

Data List Reference Table & Normal Scan Data Values

SERVICE DATA REFERENCE TABLE

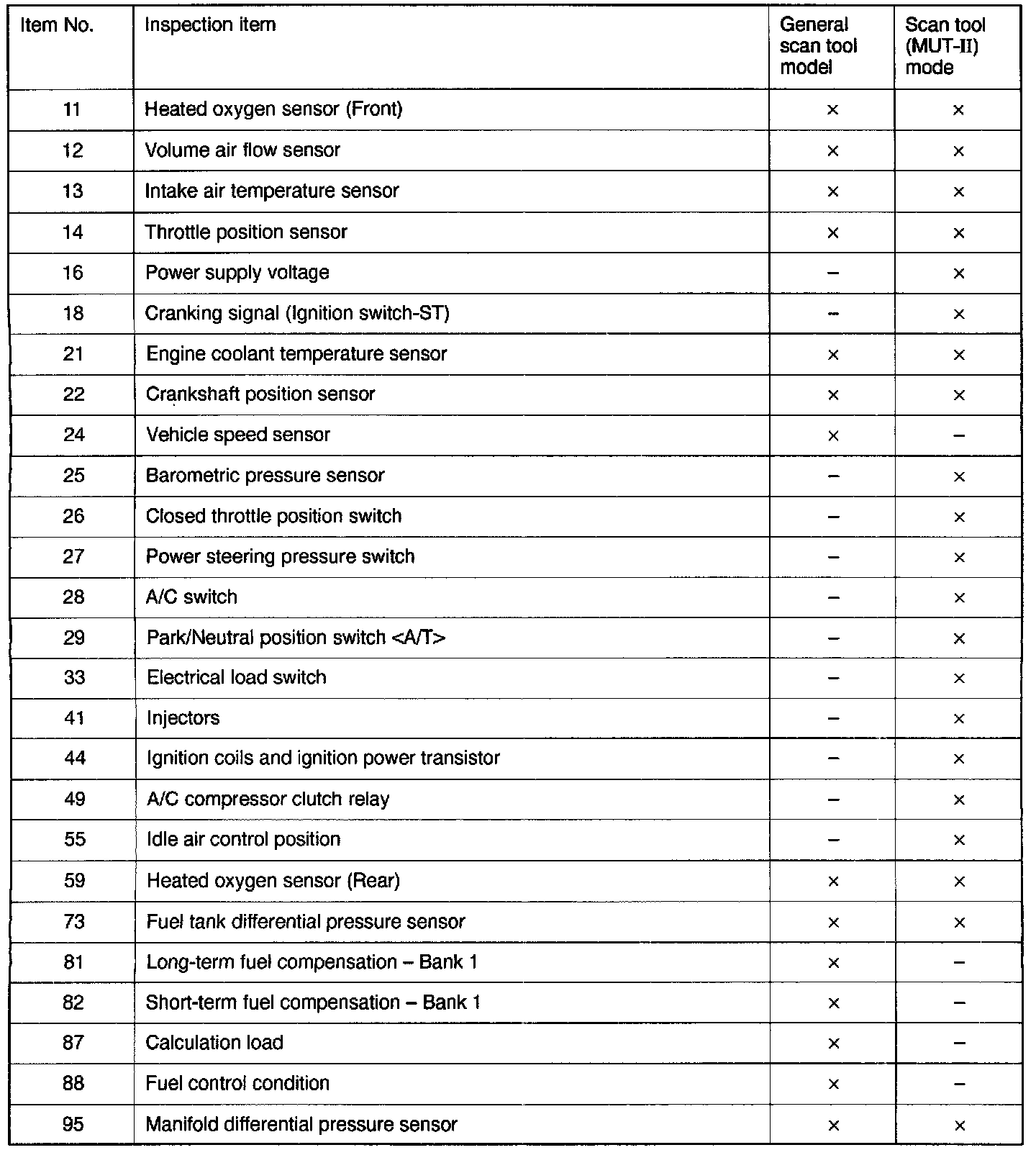

The scan tool (MUT-II) has two operation modes: the general scan mode and the scan tool (MUT-II) mode.
The service data which can be read in either mode is shown in the table above.

Caution:
1. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
2. Driving tests always need another personnel.

NOTE:
*1: In a new vehicle [driven approximately 500 km (300 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.
*2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power
*3: supply Voltage is 11 V.
In a new vehicle [driven approximately 500 km (300 mile) or less], the injector drive time is sometimes 10%
*4: longer than the standard time.
The closed throttle position switch normally turns off when the Voltage of the throttle position sensor is 50 - 100mV higher than the Voltage at the idle position. If the closed throttle position switch turns back on after the throttle position sensor Voltage has risen by 1 00mV and the throttle valve has opened, the closed throttle
*5: position switch and the throttle position sensor need to be adjusted.
In a new vehicle [driven approximately 500 km (300 mile) or less], the servo valve position is sometimes 20 steps greater than the standard value.
