Oscilloscope Patterns and Waveforms

IGNITION COIL AND IGNITION POWER TRANSISTOR
- Ignition coil primary signal
- Ignition power transistor control signal

Measurement Method
1. Disconnect the distributor (ignition power transistor) connector, and connect the special tool (test harness: MB991348) in between. (All terminals should be connected.)

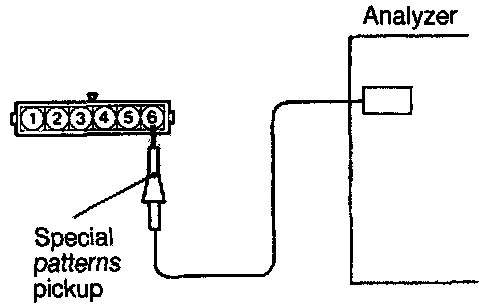

2. Connect the analyzer special patterns pickup to distributor connector terminal 6.

Alternate Method (Test harness not available)
1. Connect the analyzer special patterns pickup to ECM terminal 10.





Standard Wave Pattern Observation Conditions

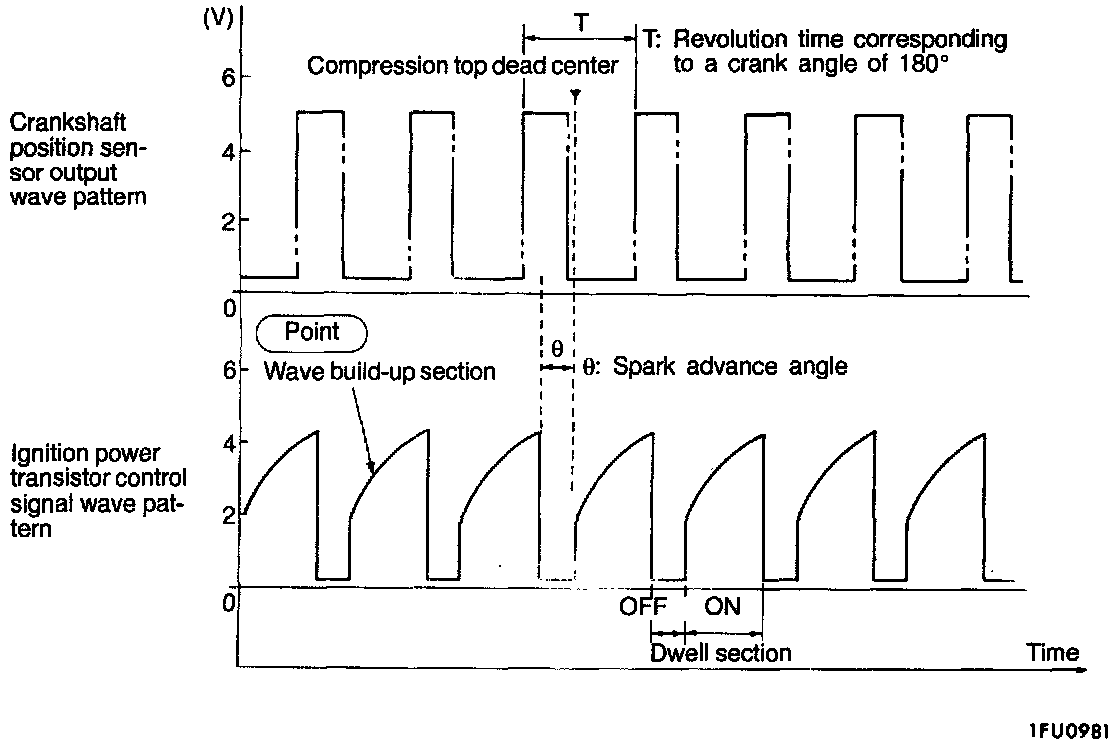

Standard Wave Pattern





Wave Pattern Observation Points

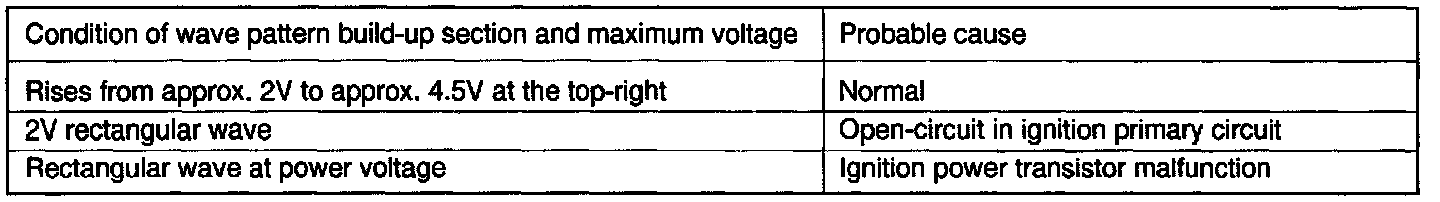

Point: Condition of wave pattern build-up section and maximum Voltage (Refer to abnormal wave pattern examples 1 and 2.)





Examples of Abnormal Wave Patterns

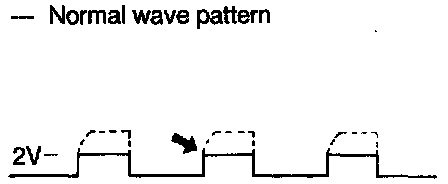

- Example 1
Wave pattern during engine cranking
CAUSE OF PROBLEM
- Open-circuit in ignition primary circuit
WAVE PATTERN CHARACTERISTICS
- Top-right part of the build-up section cannot be seen, and Voltage value is approximately 2V too low.

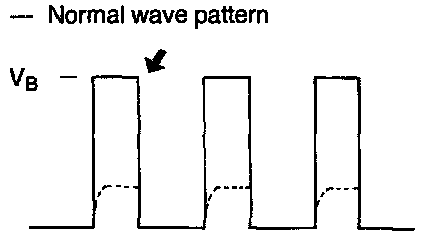

- Example 2
Wave pattern during engine cranking
CAUSE OF PROBLEM
- Malfunction in ignition power transistor
WAVE PATTERN CHARACTERISTICS
- Power Voltage results when the ignition power transistor is ON.
