Home >> Mitsubishi >> 1996 >> Mirage L4-1468cc 1.5L SOHC 12 Valve >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

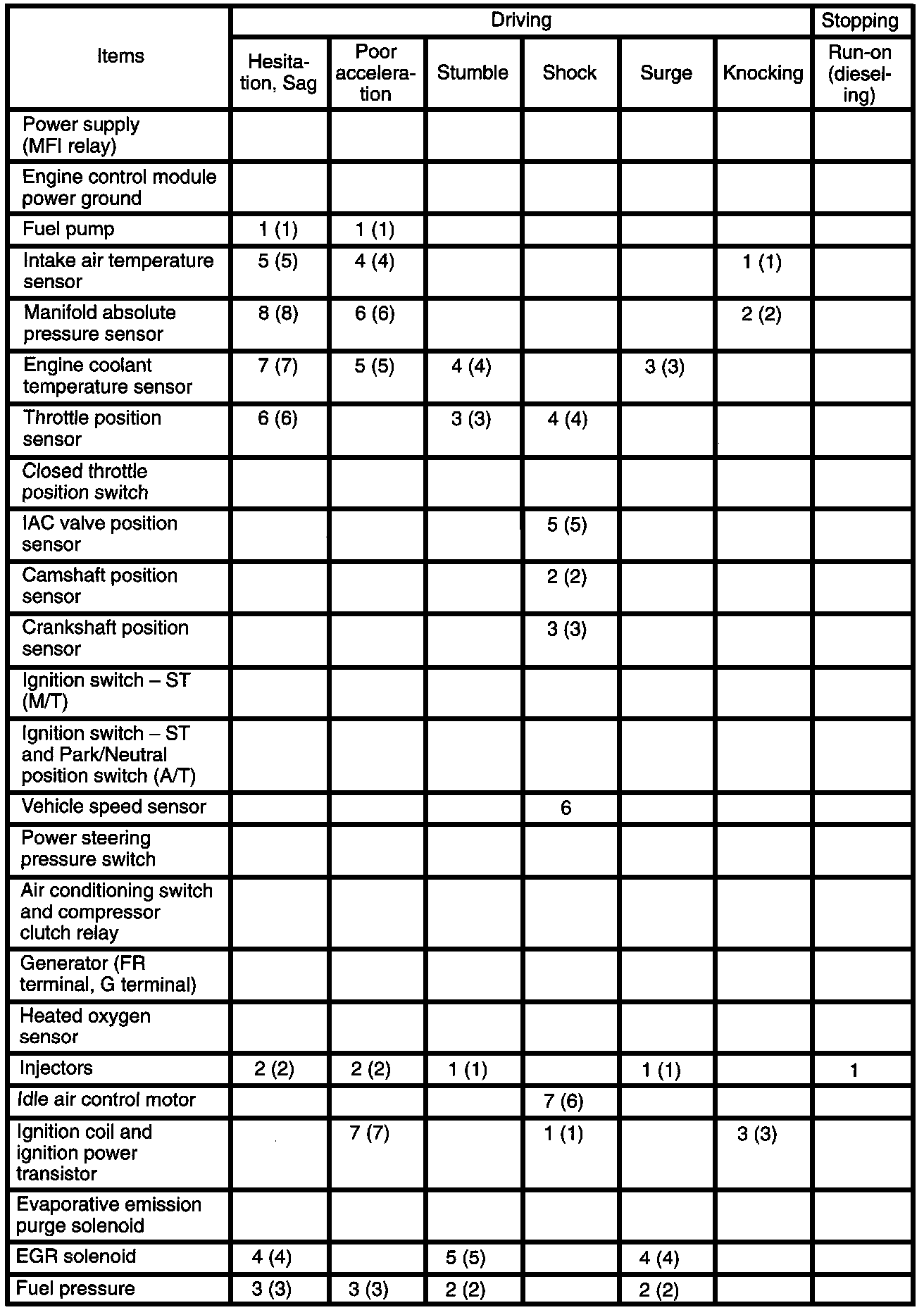

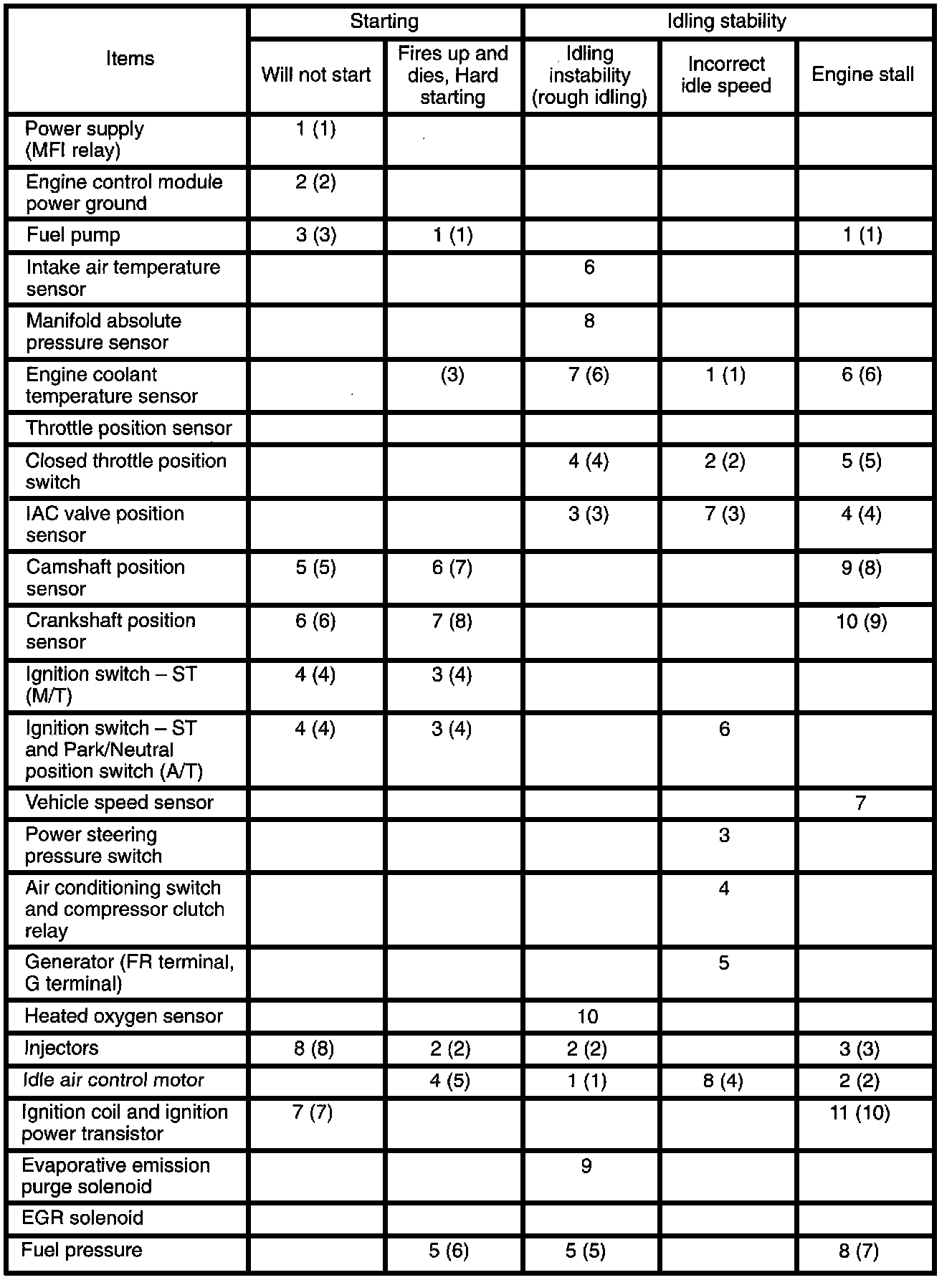

Symptom Chart









NOTE: The numbers in the table indicate the check order. [with ( ): cold engine, without ( ) warm engine]
