Camber

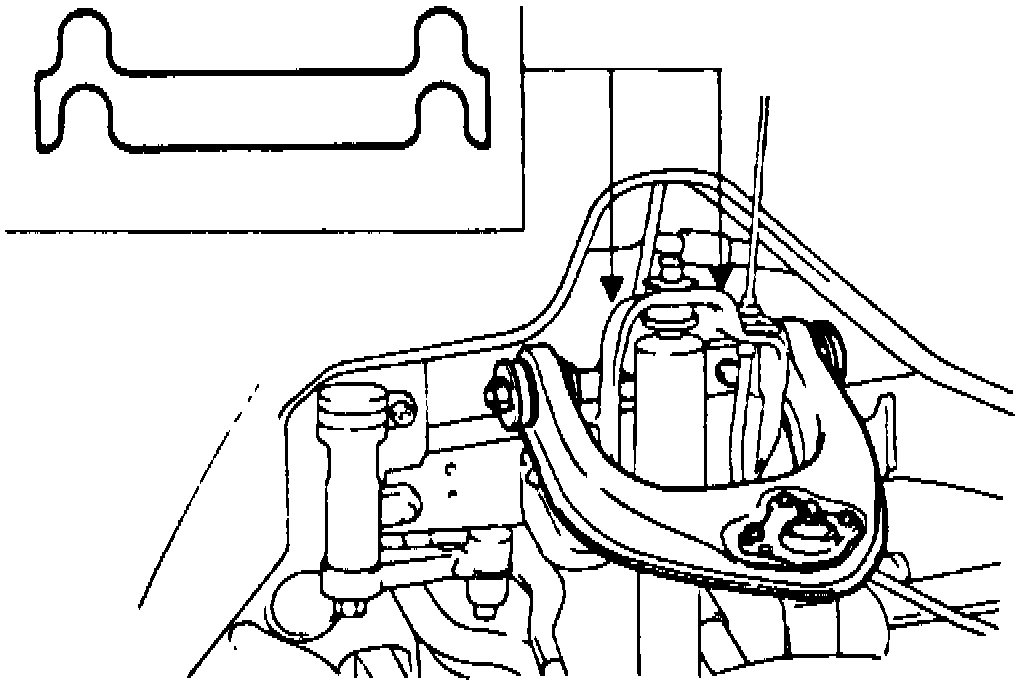

Fig. 1 Front Camber Adjustment:
Adjust camber by adjusting number of shims between upper arm shaft and arm post of side frame. A 0.039 inch adjustment of shim thickness provides approximately 13 minutes adjustment of camber, Fig. 1.
Adjust camber by adjusting number of shims between upper arm shaft and arm post of side frame. A 0.039 inch adjustment of shim thickness provides approximately 13 minutes adjustment of camber, Fig. 1.
