Toe-In

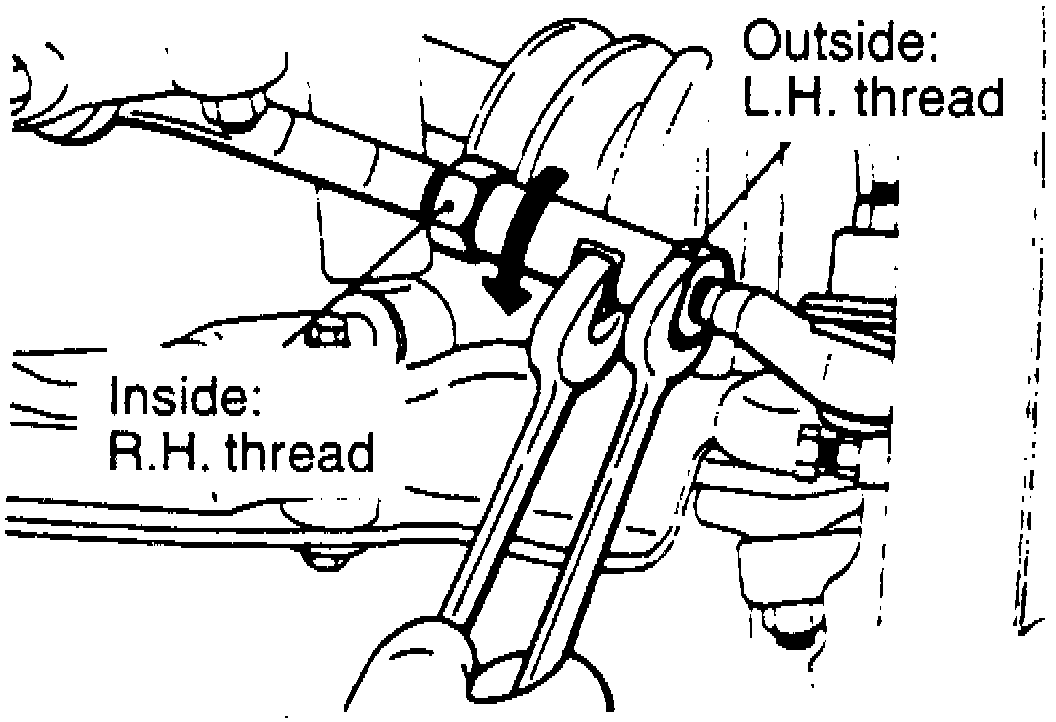

Fig. 2 Front Toe-In Adjustment:

1. Adjust toe-in by turning left and right tie rod turnbuckles equal amounts in opposite directions, Fig. 2.
2. Toe-in on left wheel is reduced by turning tie rod toward front of vehicle or increased by turning tie rod toward rear of vehicle. Toe-in on right wheel is reduced by turning tie rod toward rear of vehicle or increased by turning tie rod toward front of vehicle. A half turn of turnbuckles changes toe-in approximately 0.3 inch.
