Control Unit

Control Unit Location Overall View:

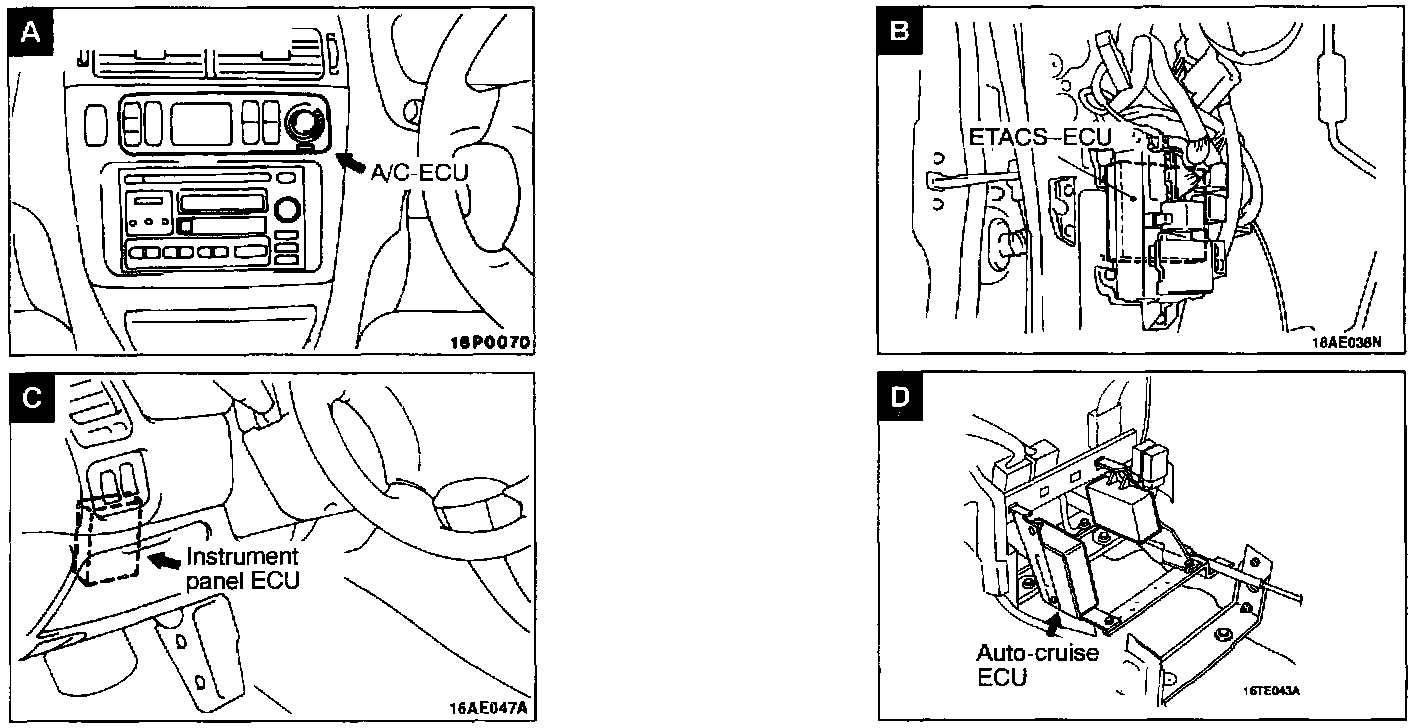

Control Unit Location View A - D:

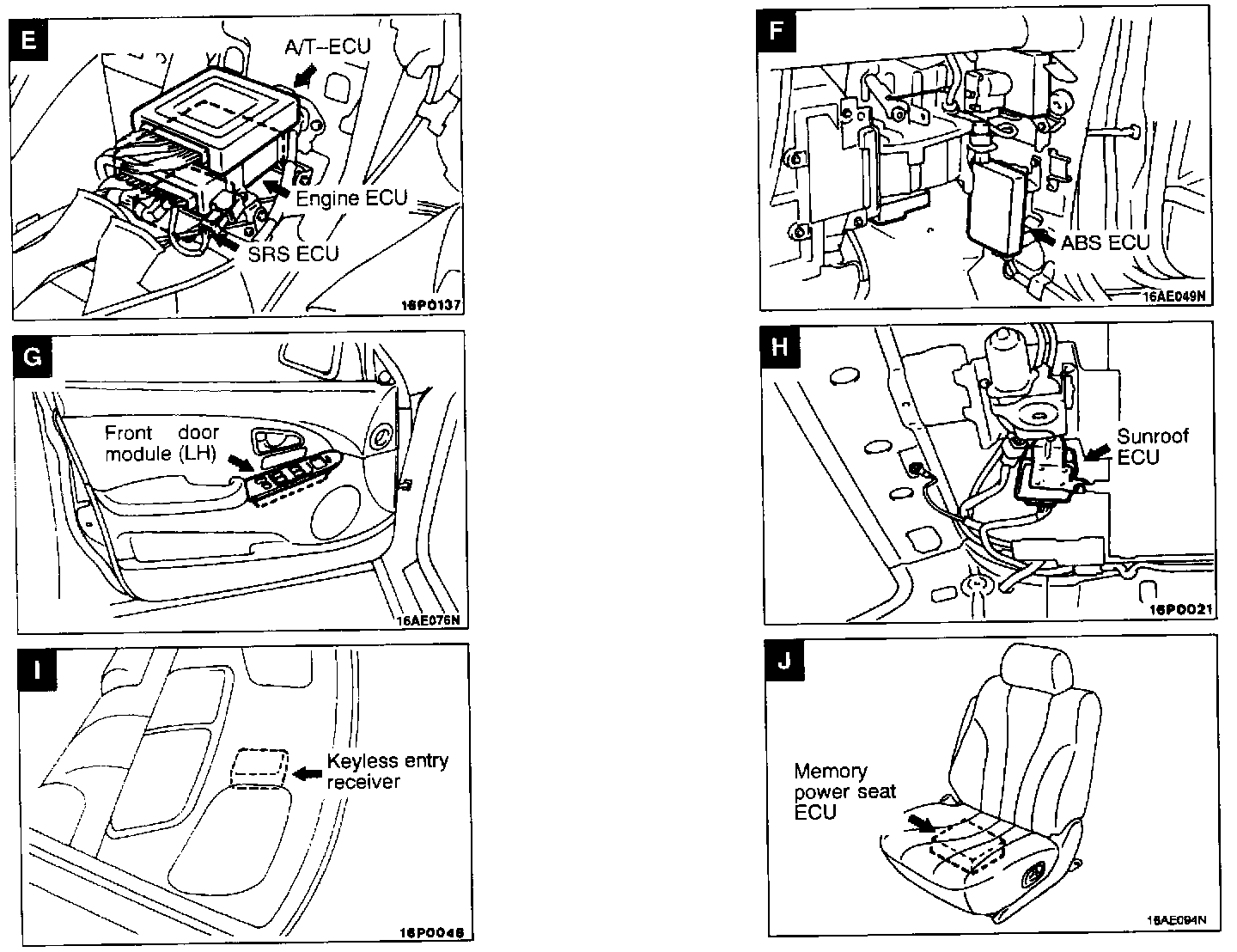

Control Unit Location E - J:

Component View
ABS-ECU F
A/C ECU A
A/C Belt Lock ECU F
Assist ECU F
Auto Cruise ECU D
ELC 4-Speed Automatic Transaxle E
Control Module
Engine Control Module E
ETACS-ECU B
Front Door Module (LH) G
Instrument Panel ECU C
Keyless Entry Receiver I
Memory Power Seat ECU J
SRS-ECU E
Sunroof-ECU H
