With Scan Tool

REGISTERING A CODE

Since the transmitter is memorized by each individual code, it is necessary to register a code on EEPROM in the control unit if the transmitter or control unit is replaced, or cause of the trouble is presumed to be due to faulty registration of the code. Since two different codes at the most can be memorized in the memory space of EEPROM, the old code will become unable to be used if the following registration operation is repeated twice. Meanwhile, register a code after confirming that an ordinary door lock function can be worked through key operation.


SCAN TOOL METHOD

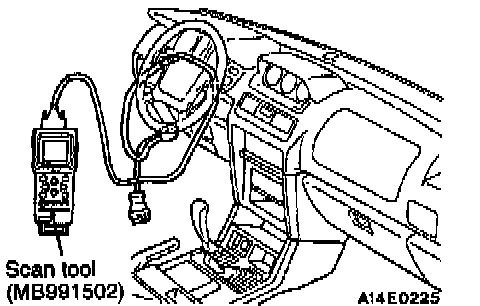

(1) Connect the scan tool to the data link connector.

Note: At this moment, No.1 terminal of the data link connector becomes grounded and a code is ready to be registered.

Caution: Turn off the ignition switch before connecting or disconnecting the scan tool.

(2) Close all doors.
(3) Set the ignition switch to ACC and return it to OFF.

Note: At this moment, the door operates, lock and unlock, once, then it becomes registration mode.

(4) After pressing any switch on the transmitter once, press it two more times within 10 seconds to register the same code for SET I and SET II.
(5) After registration is completed, the door lock operates, lock and unlock, once.

Note: If there are two transmitters, carry out the registration within 10 seconds in the same manner as the first registration. In addition, the second registration shall be done within a minute.

(6) After the second registration is completed, the door lock operates, lock and unlock, once.
(7) Registration mode finishes under the following conditions.

Registration of two transmitter codes are completed.
One minute has passed since the registration mode setting.
Scan tool connection is disconnected. (ground mode is released.)
Ignition switch is turned ON.
Any of the doors are opened.
