Control Switch Inspection

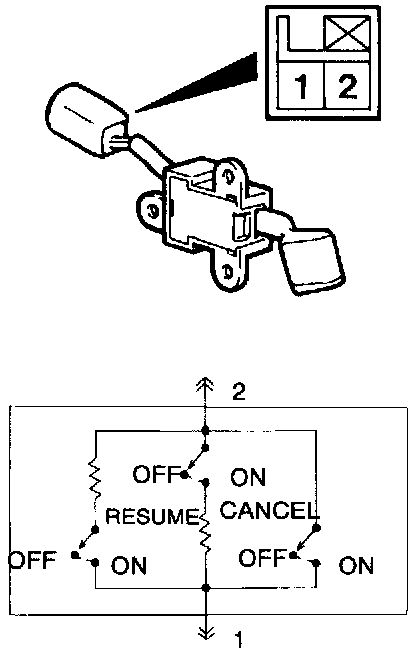

Disconnect the connector of the control switch and operate the control switch to measure the resistance between the individual terminals.

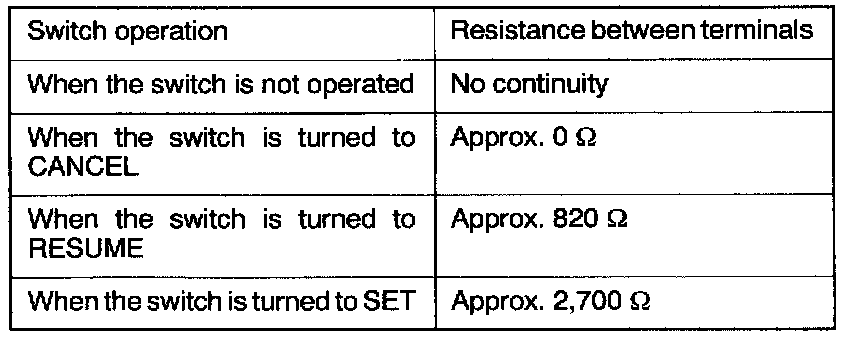

If the readings are as shown below, the control switch may be considered good.
