Transfer Case
>>
Control Module, Transfer Case
Control Module, Transfer Case

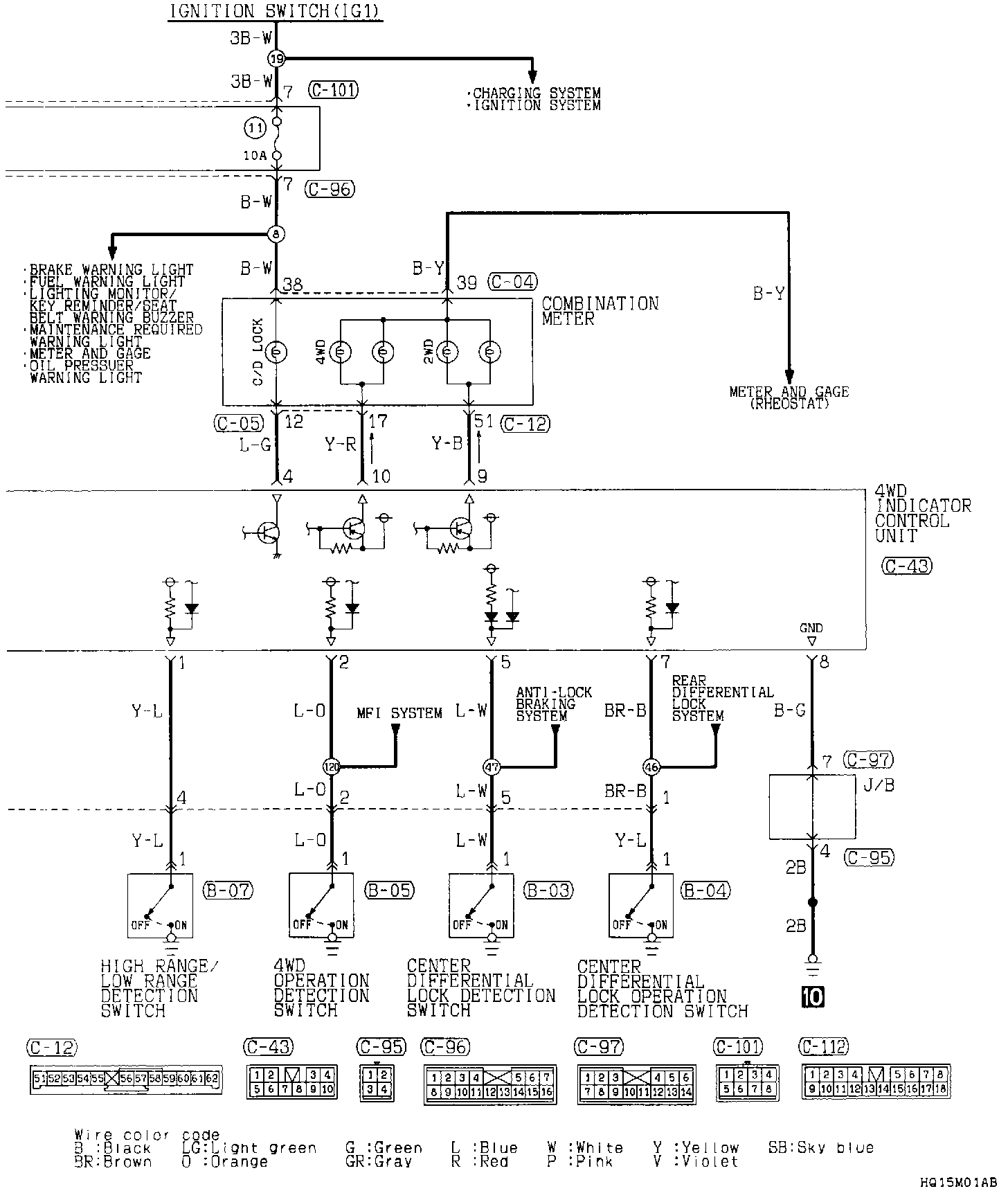

Active Trac 4WD System (Part 1 Of 2):

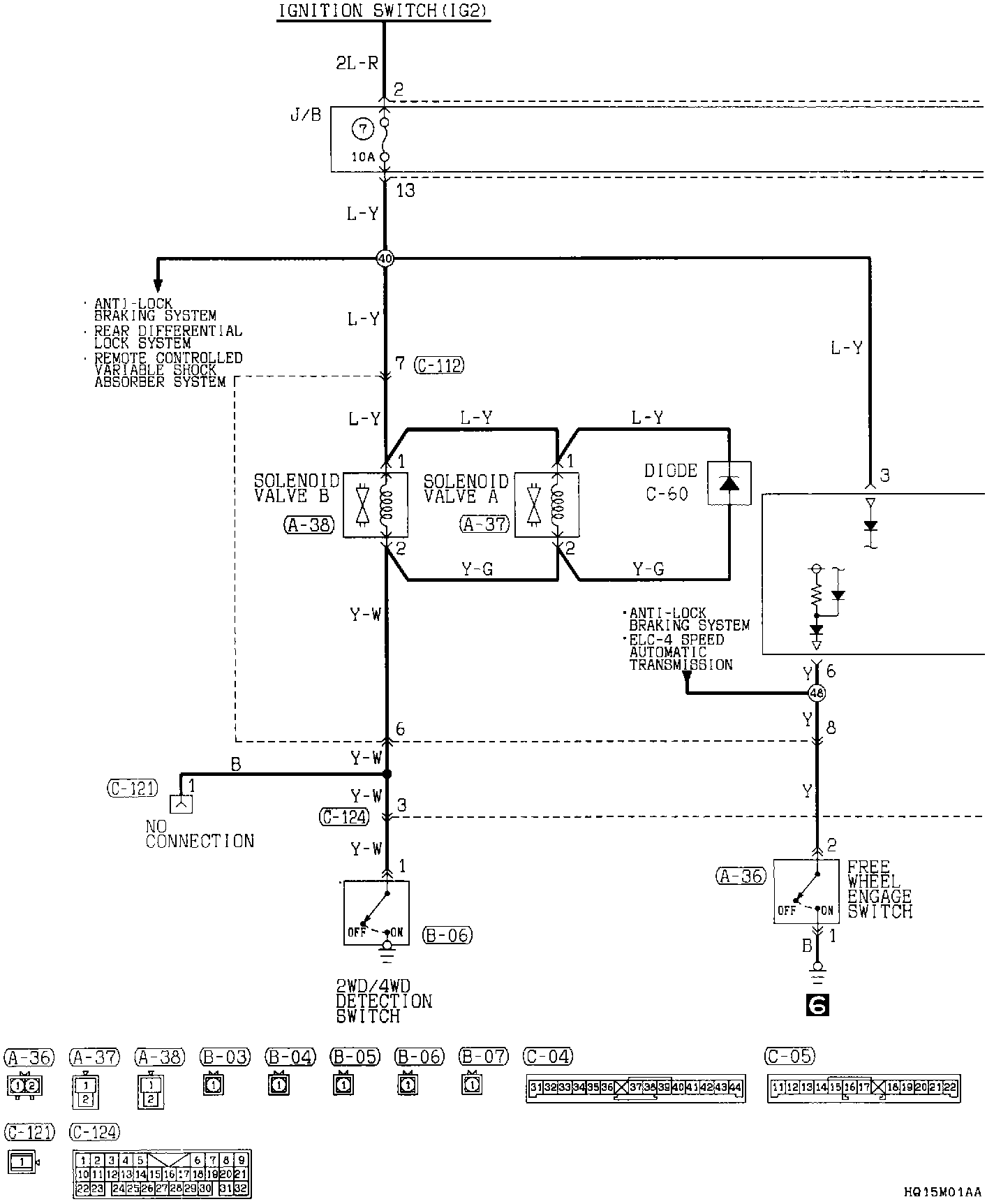

Active Trac 4WD System (Part 2 Of 2):
