Toe-In

1. Measure the toe-in.
Standard value:
At The Center Of Tire Tread: (3.5 ± 3.5 mm (.14 ± .14 inch) 0 to 7 mm (0 to +.28 inch)
At The Rim Of Disc Wheel: (1.8 ± 1.8 mm (.07 ± .07 inch) 0 to 3.6 mm (0 to +.14 inch)
Toe-In Angle (Per Wheel): 0° to 0° 17'

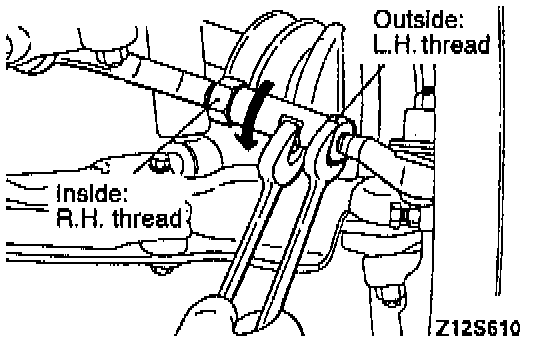

2. If the toe-in is not within the standard value, adjust the toe-in by turning the left and right tie rod turnbuckles by the same amount (in opposite directions).

CAUTION: The difference between the left and right tie rods should not exceed 5 mm (.2 inch).

3. After adjusting, use a turning radius gage to confirm that the steering wheel turning angle is within the standard value range.
