Camshaft Position Sensor: Service and Repair

Crankshaft Position Sensor And Camshaft Position Sensor - Removal And Installation:

Pre-removal and Post-Installation Operations
- Timing Belt Cover Removal and Installation

Removal

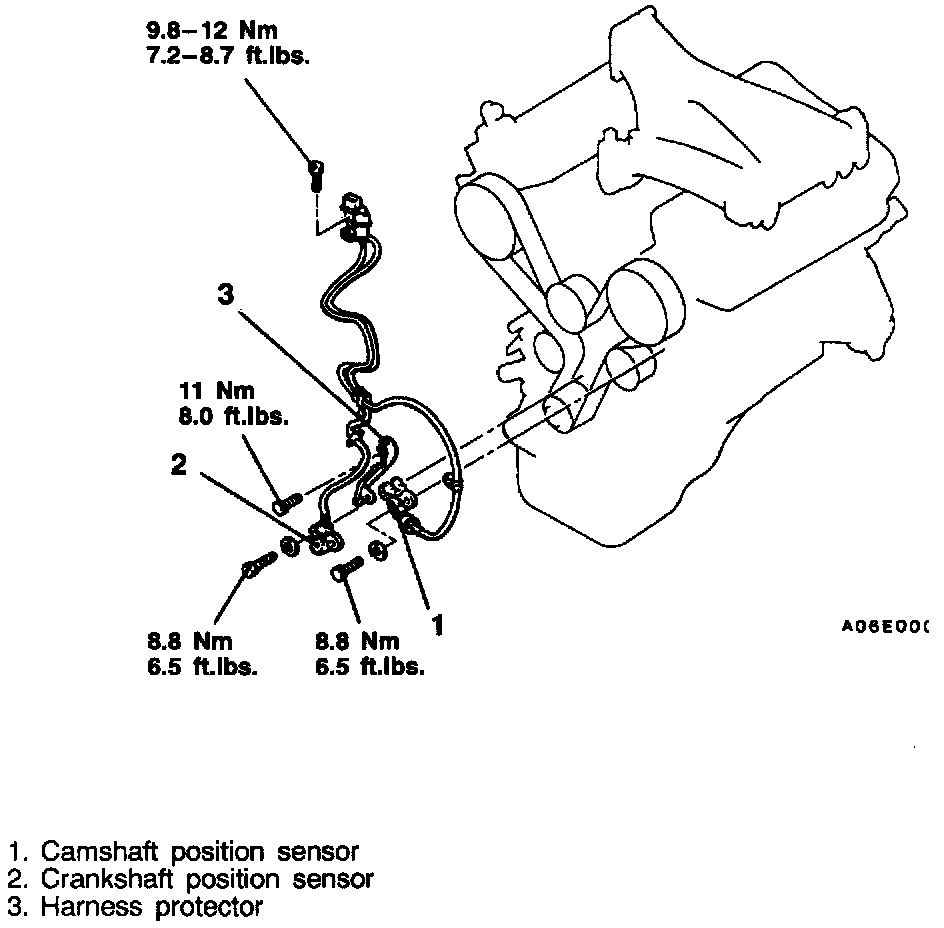

To remove follow the steps listed in the image

Installation
To install reverse the steps listed in the image.
