Home >> Mitsubishi >> 1997 >> Montero LS 4WD V6-3.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

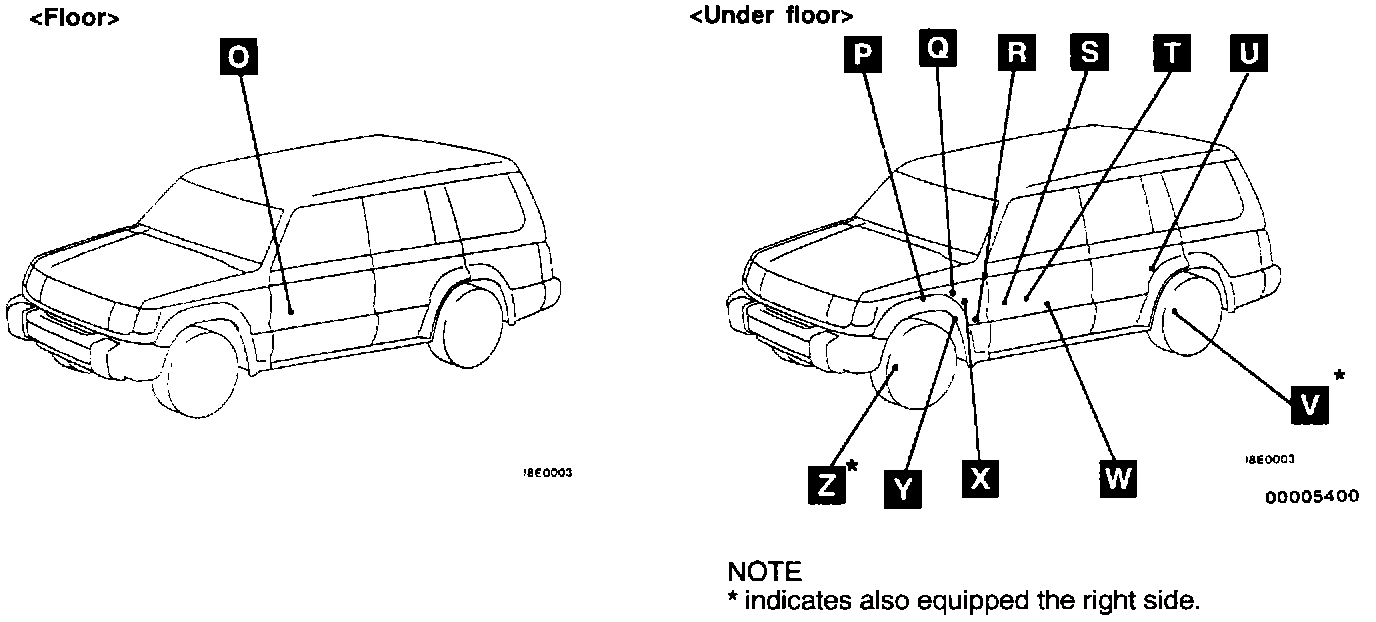

Sensor Location Overviews:

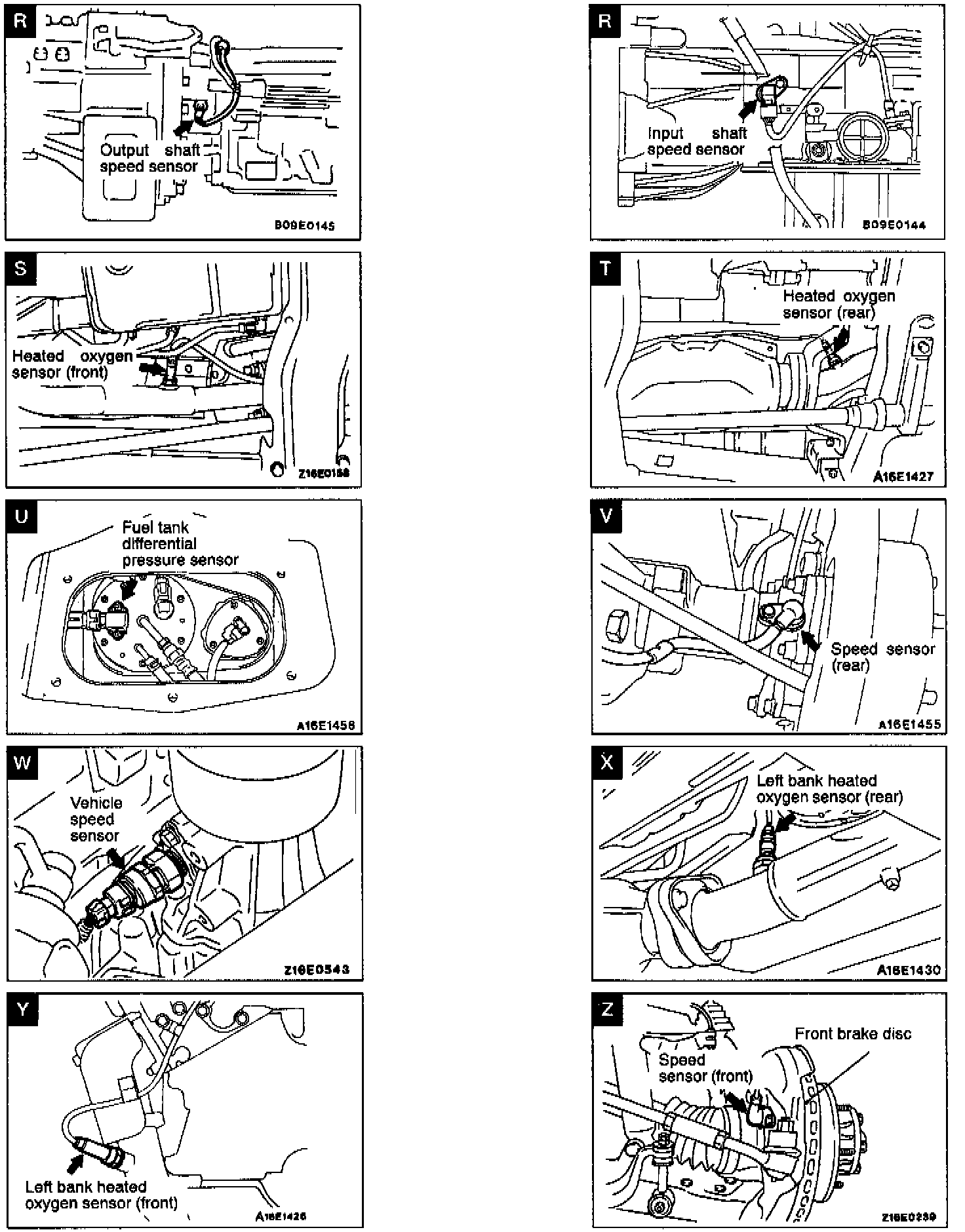

Sensor Location Views R - Z:






SENSOR VIEW
Vehicle Speed Sensor W
