A/T - Control Circuit Diagram Revisions

No: TSB-98-23-009
DATE: June, 1998
MODEL: 1992-98 Montero

SUBJECT:
A/T CIRCUIT DIAGRAMS (MONTERO) - SERVICE MANUAL REVISION

[TSB Revision TSB-98-23-009]

PURPOSE

This bulletin corrects automatic transmission circuit diagrams on the affected service manual pages.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

1992-98 Montero models equipped with automatic transmission

AFFECTED SERVICE MANUALS

1992-94 Montero, Volume 2, page 141
1996 Montero, Volume 2, page 139
1997 Montero, Volume 2, pages 103 and 105
1998 Montero, Volume 2, page 90-55

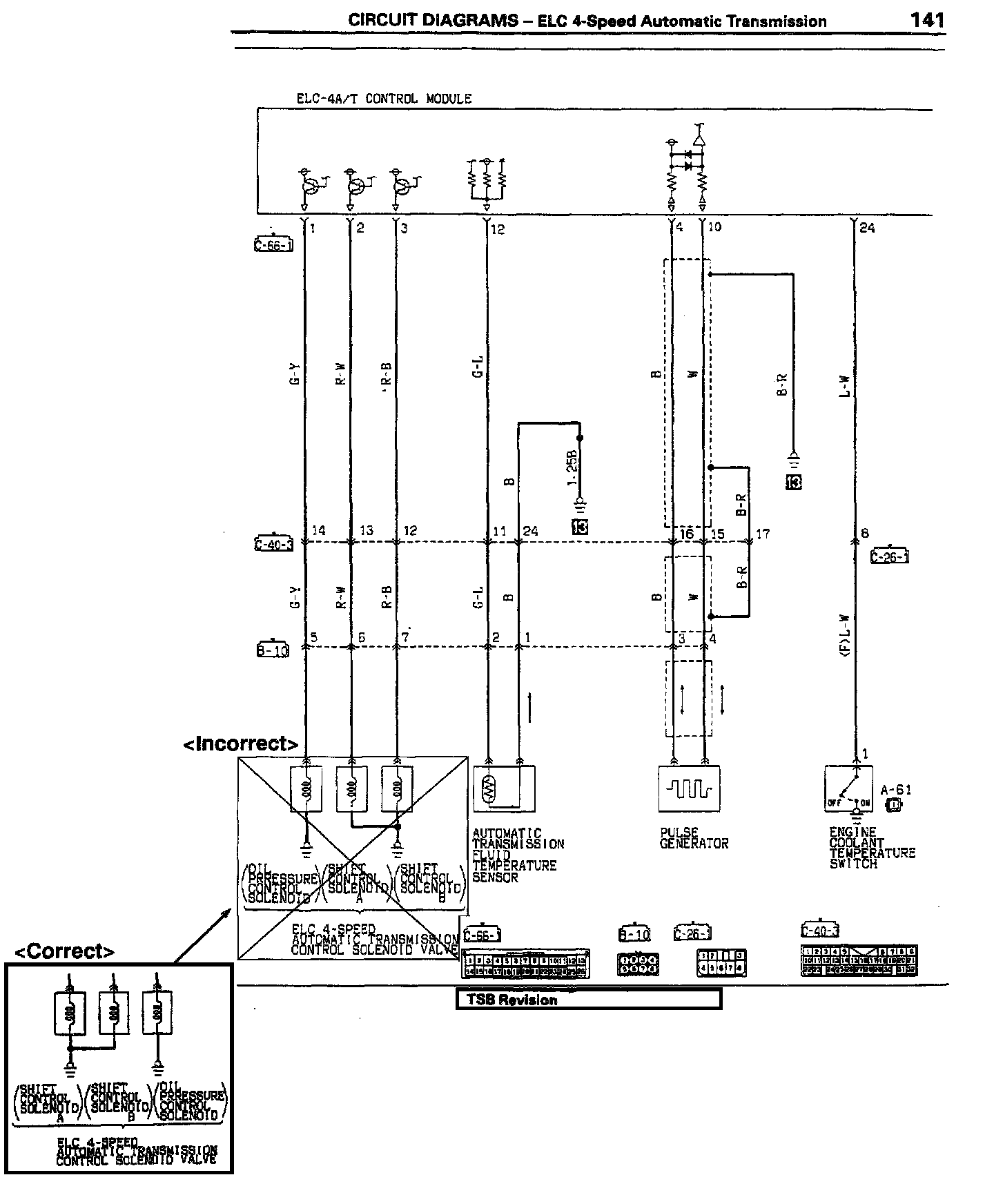

1992-94 Montero, Volume 2, page 141





1996 Montero, Volume 2, page 139

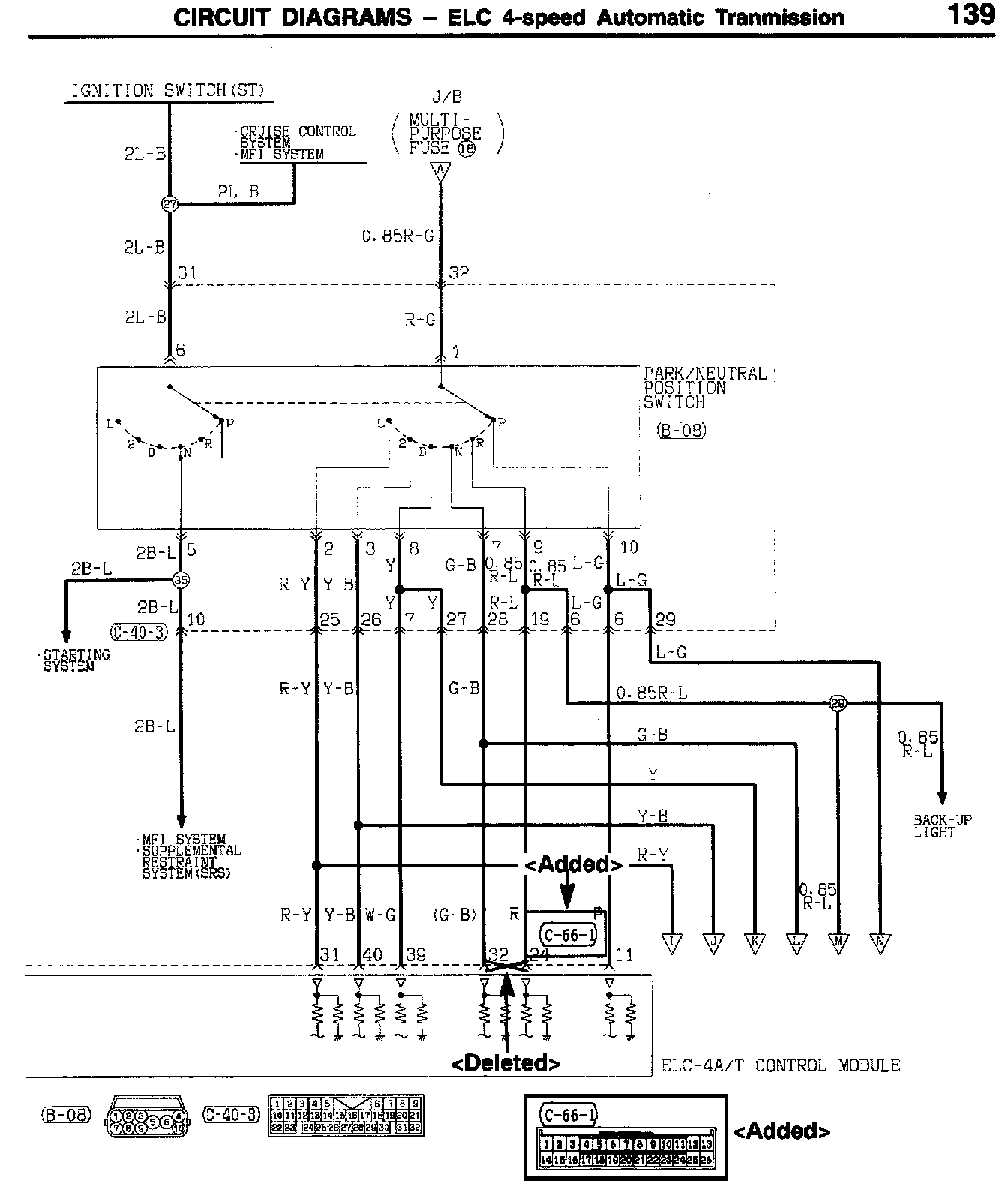

Connector C-66-1 is added:





1997 Montero, Volume 2, page 103

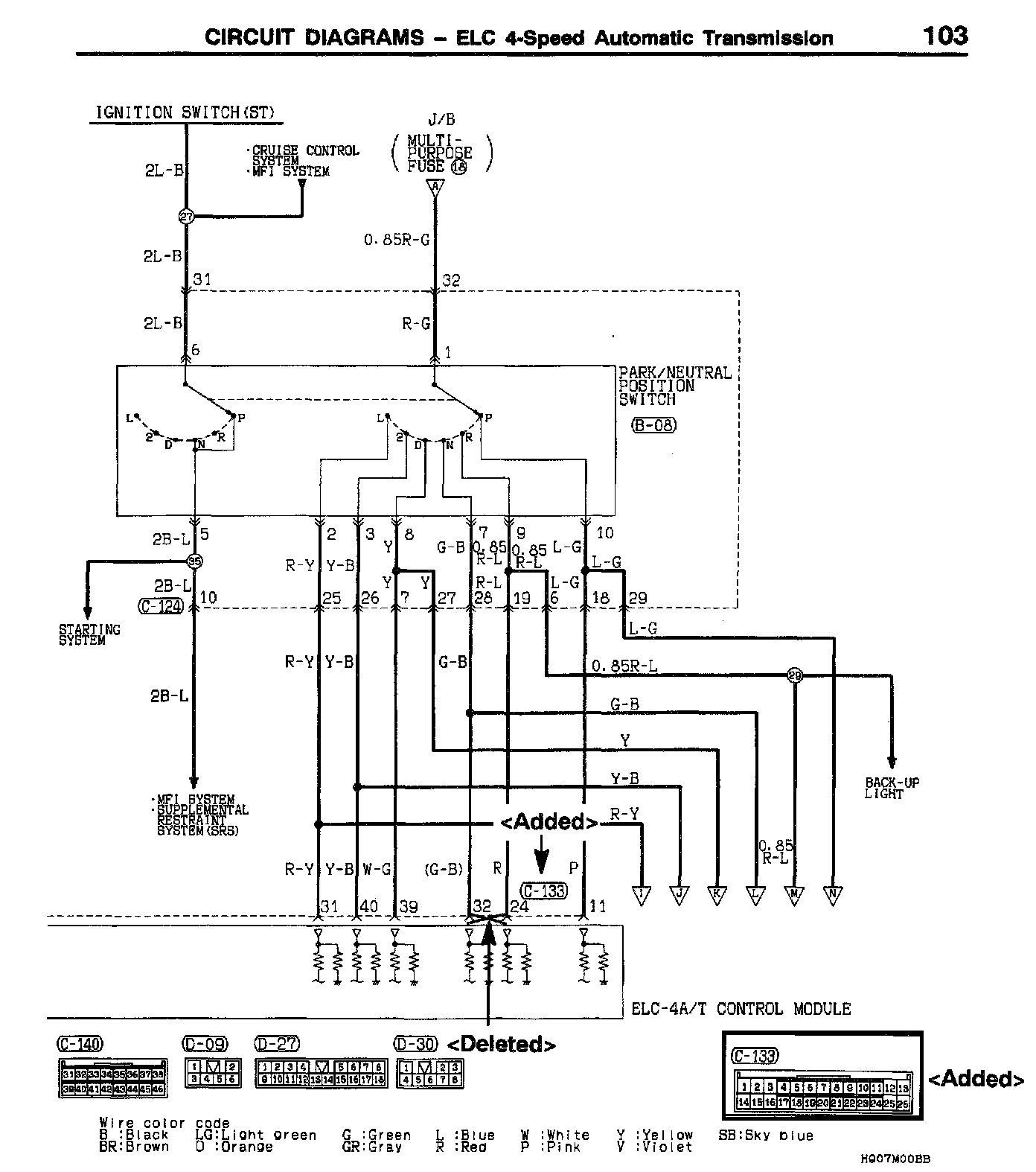

Connector 0-133 is added:





1997 Montero, Volume 2, page 105

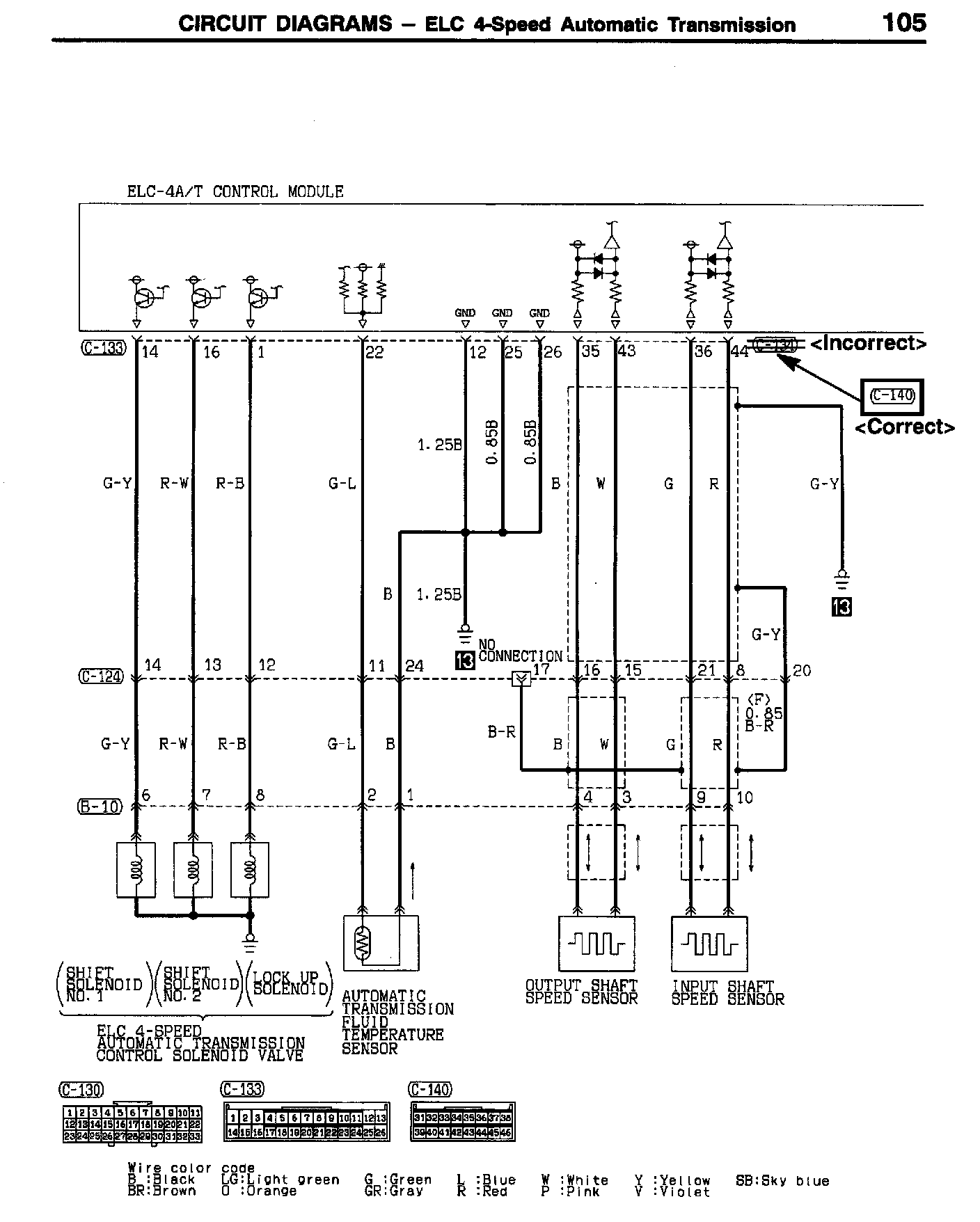

Change connector C-134 to C-140:

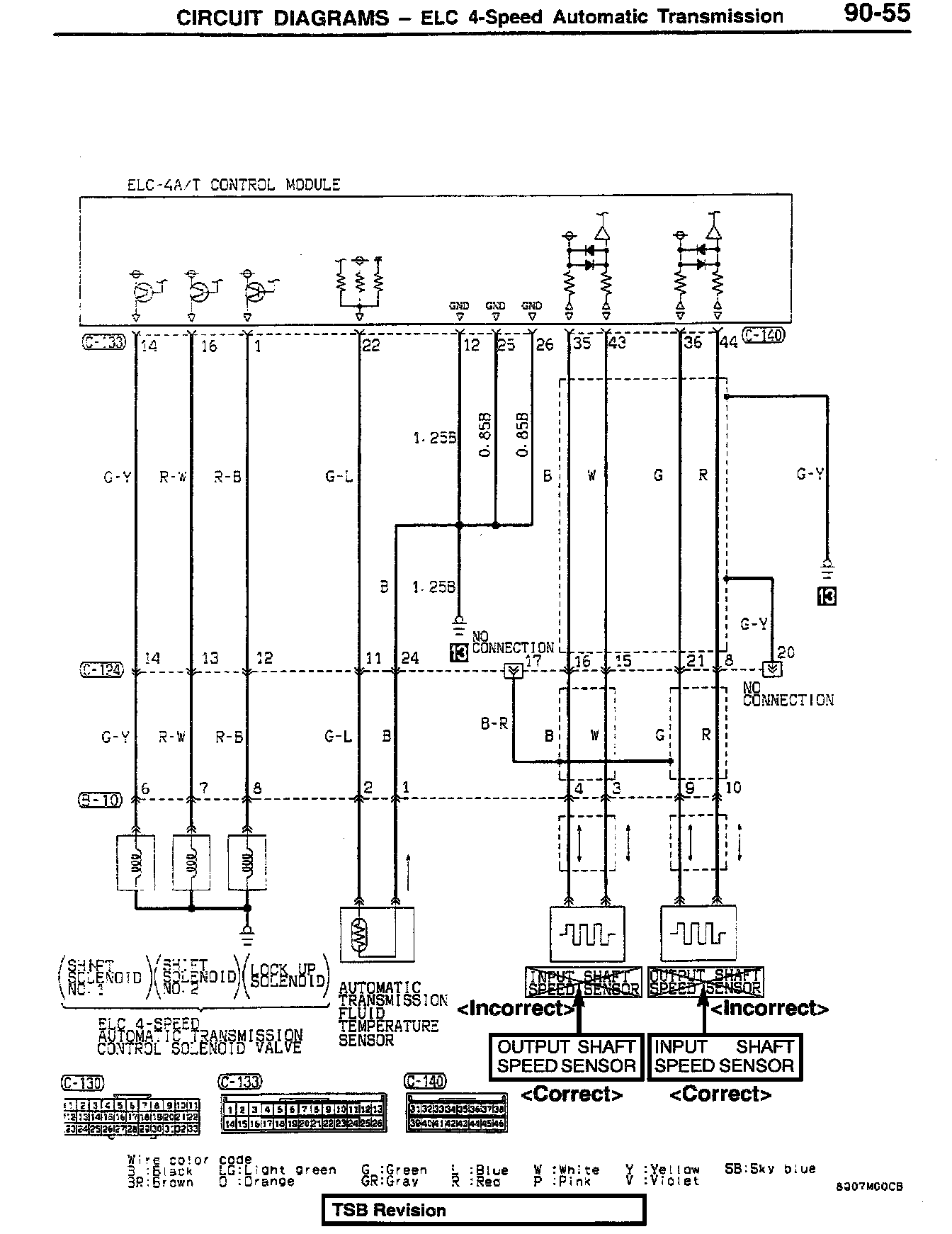

1998 Montero, Volume 2, page 90-55
