A/T Technical Data

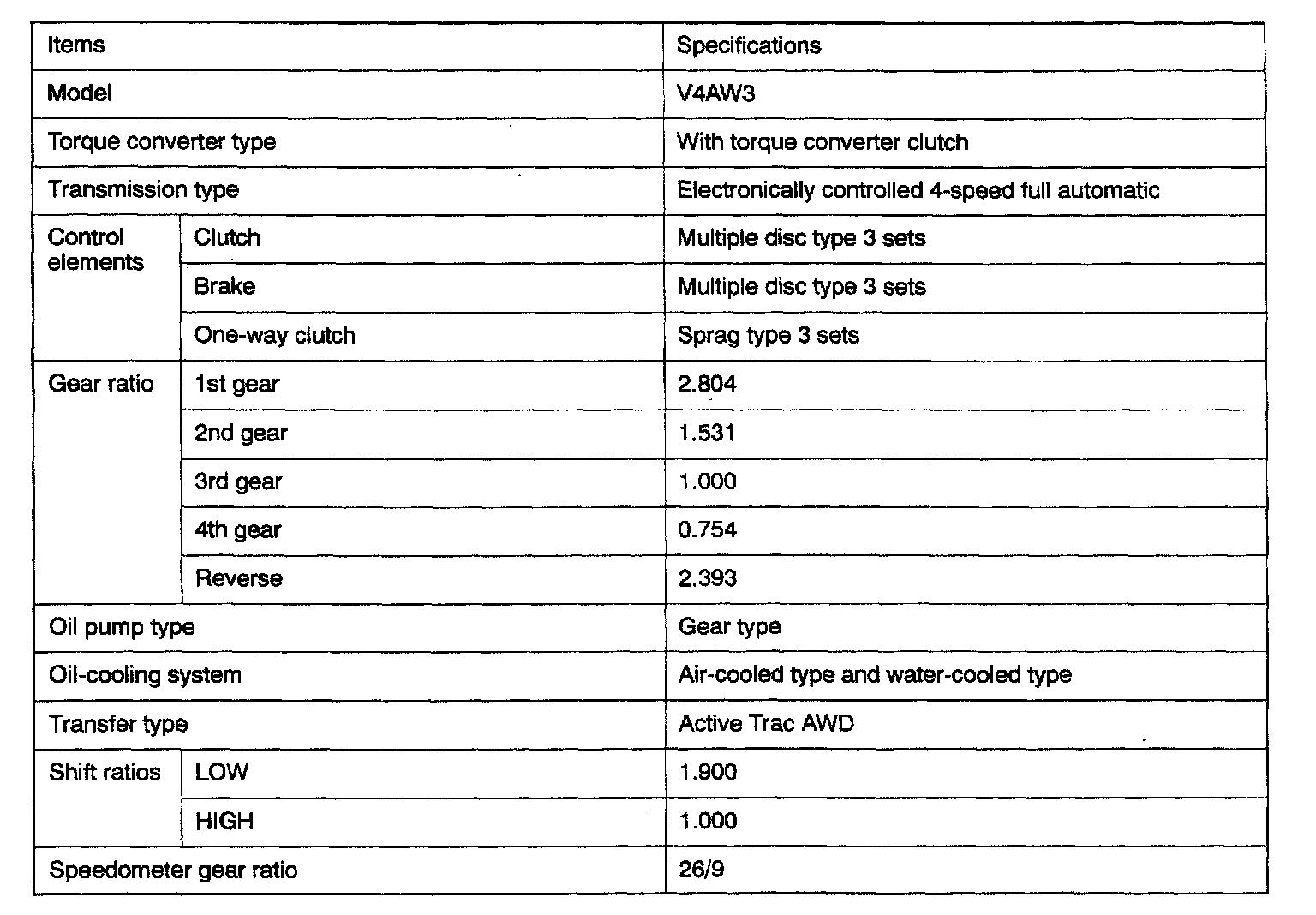

V4AW3 4-spd A/T, Gear Ratios:

V4AW3 4-spd A/T, Gear Ratios:

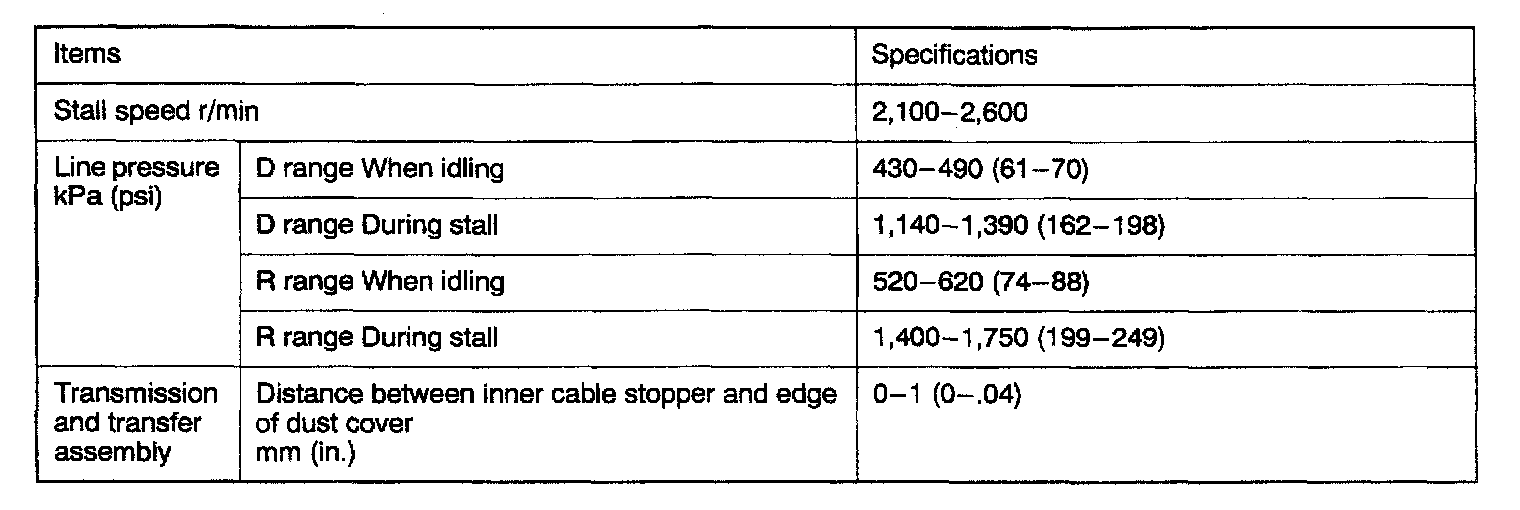

V4AW3 4-spd A/T, Line Pressure, Stall Speed & Assembly:

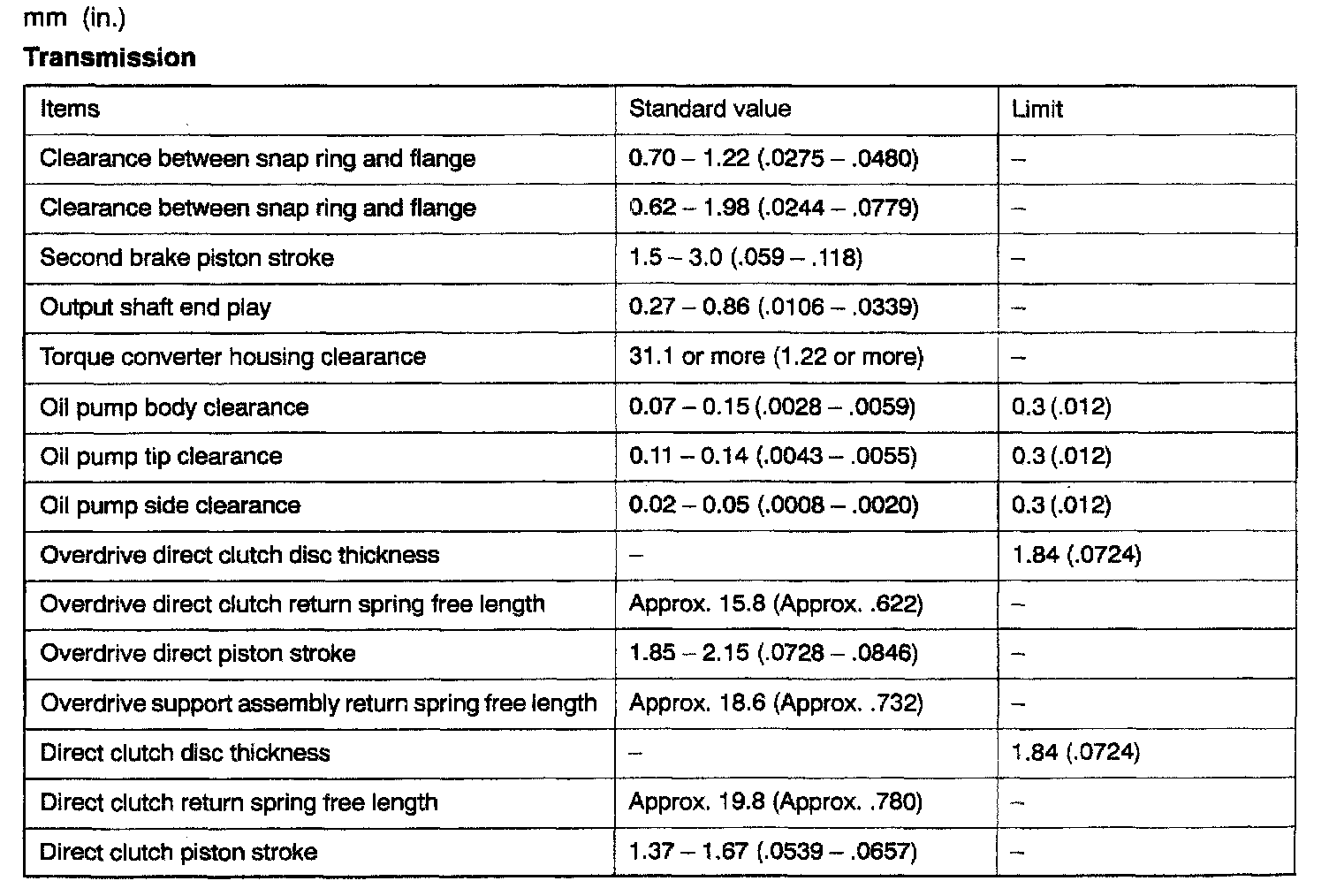

V4AW3 4-spd A/T, Transmission Standard Values & Limits:

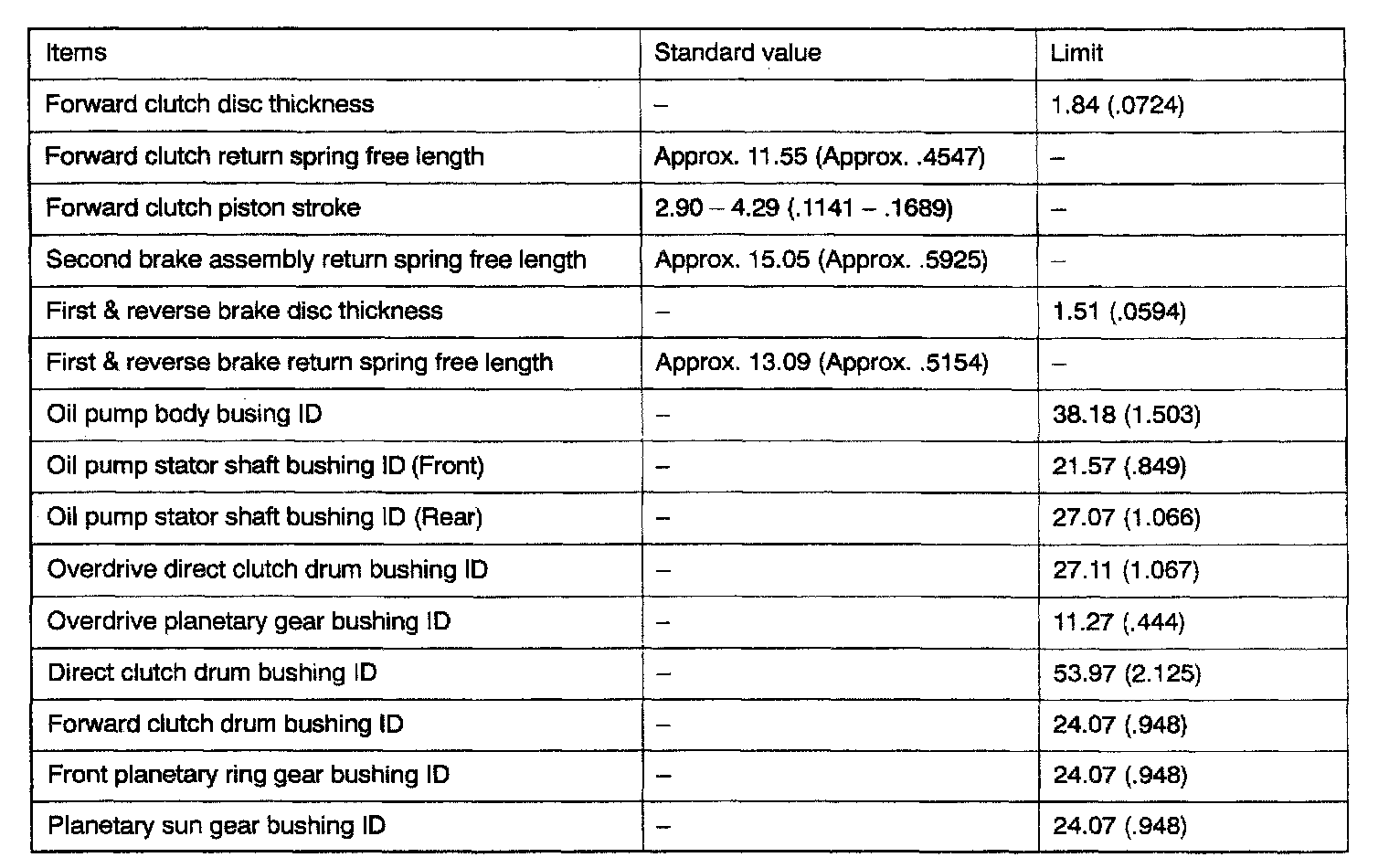

V4AW3 4-spd A/T, Transmission Standard Values & Limits:

V4AW3 4-spd A/T, Transmission & Transfer Standard Values & Limits:

V4AW3 4-spd A/T, Valve Body Springs & Accumulator Piston:

V4AW3 4-spd A/T, Transmission Torque:

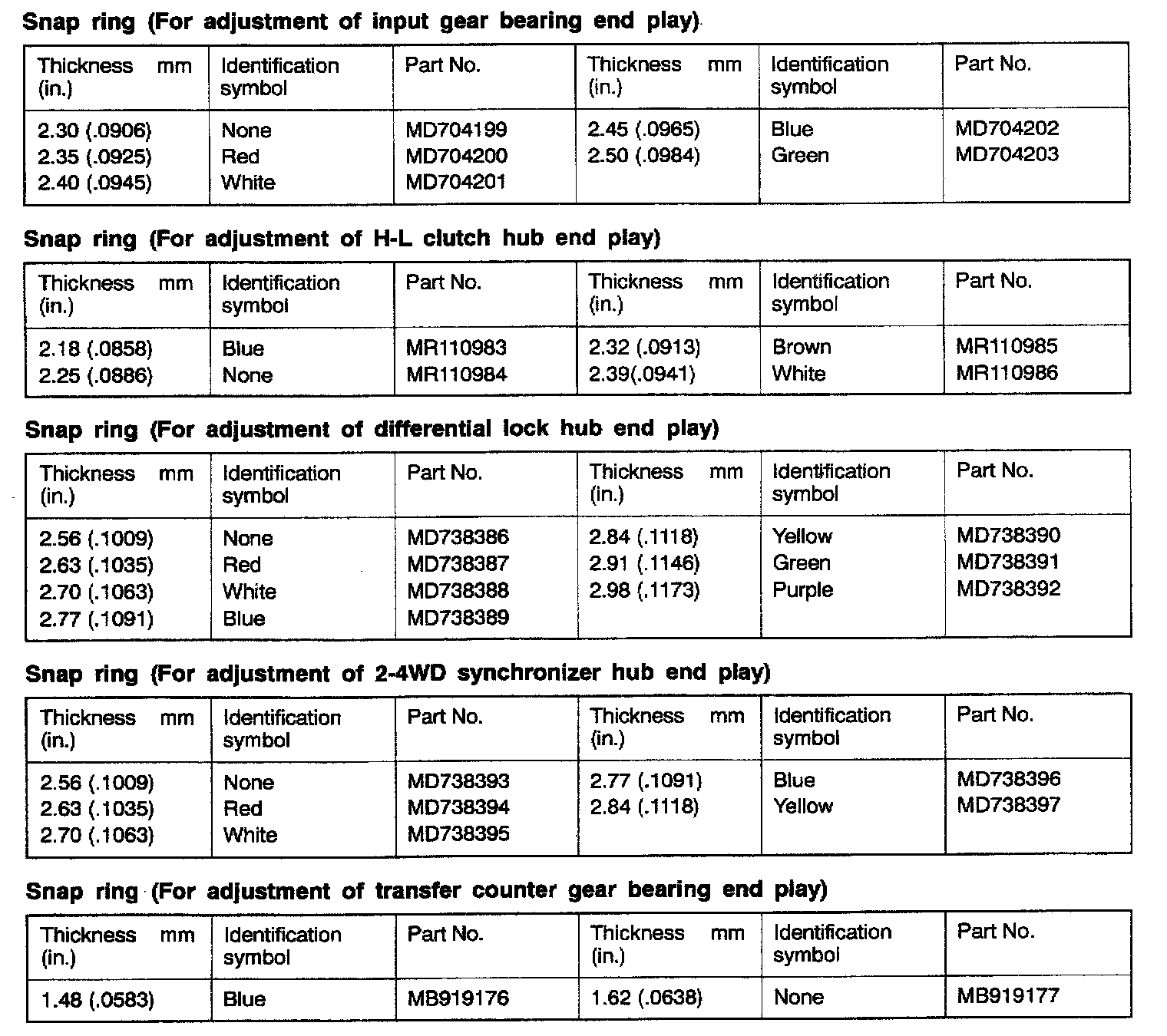

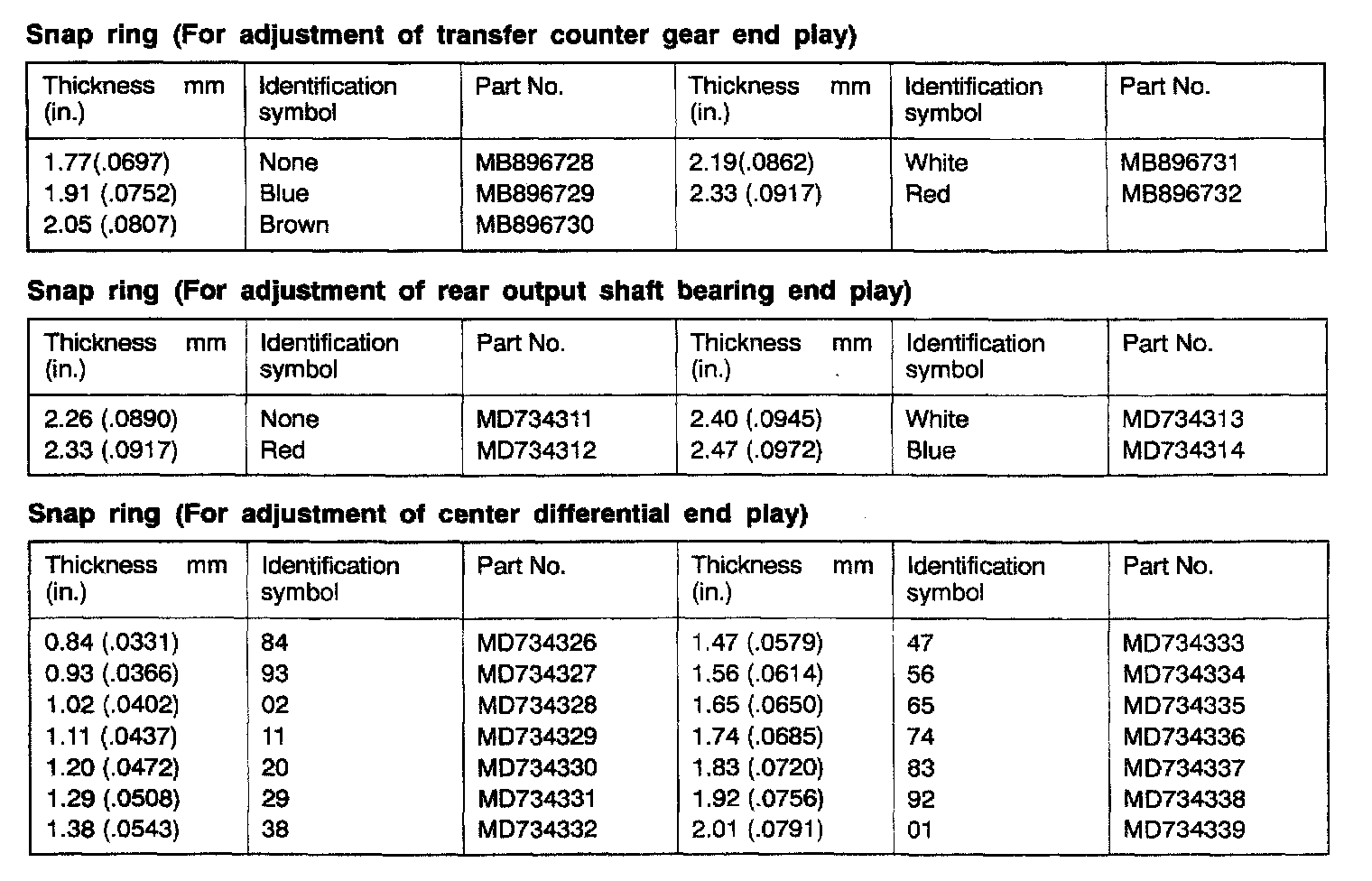

V4AW3 4-spd A/T, Transmission End Play:
