Rear Axle

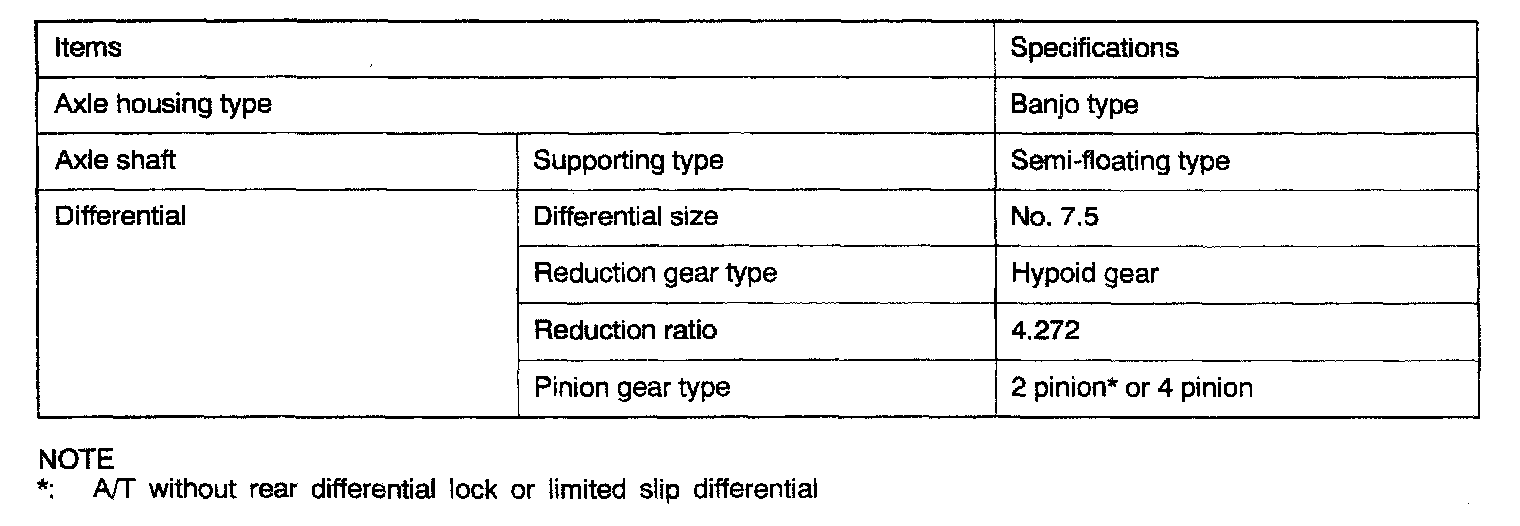

4WD Rear Differential Dimensions:

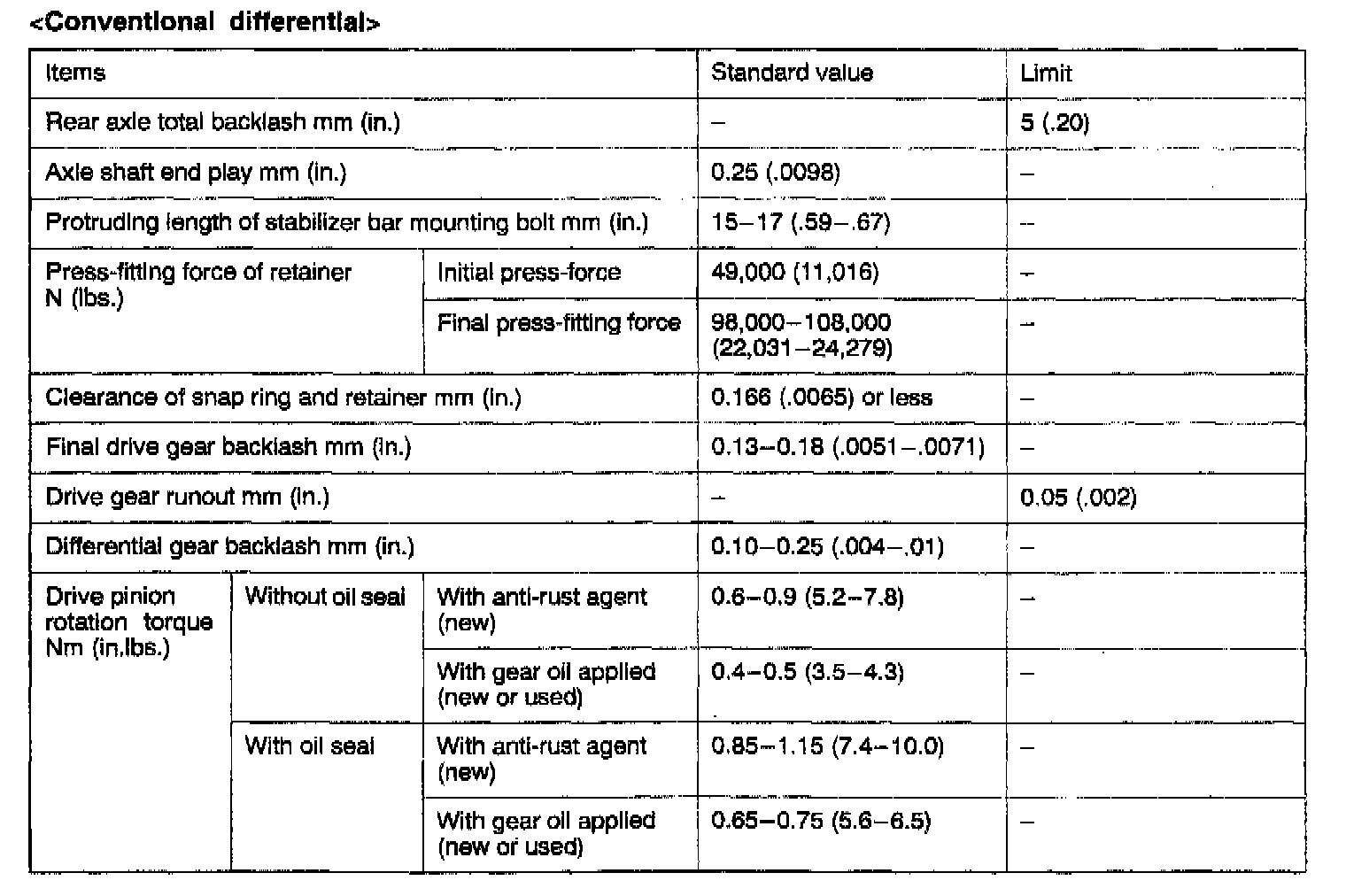

4WD Rear Differential Standard Values & Limits:

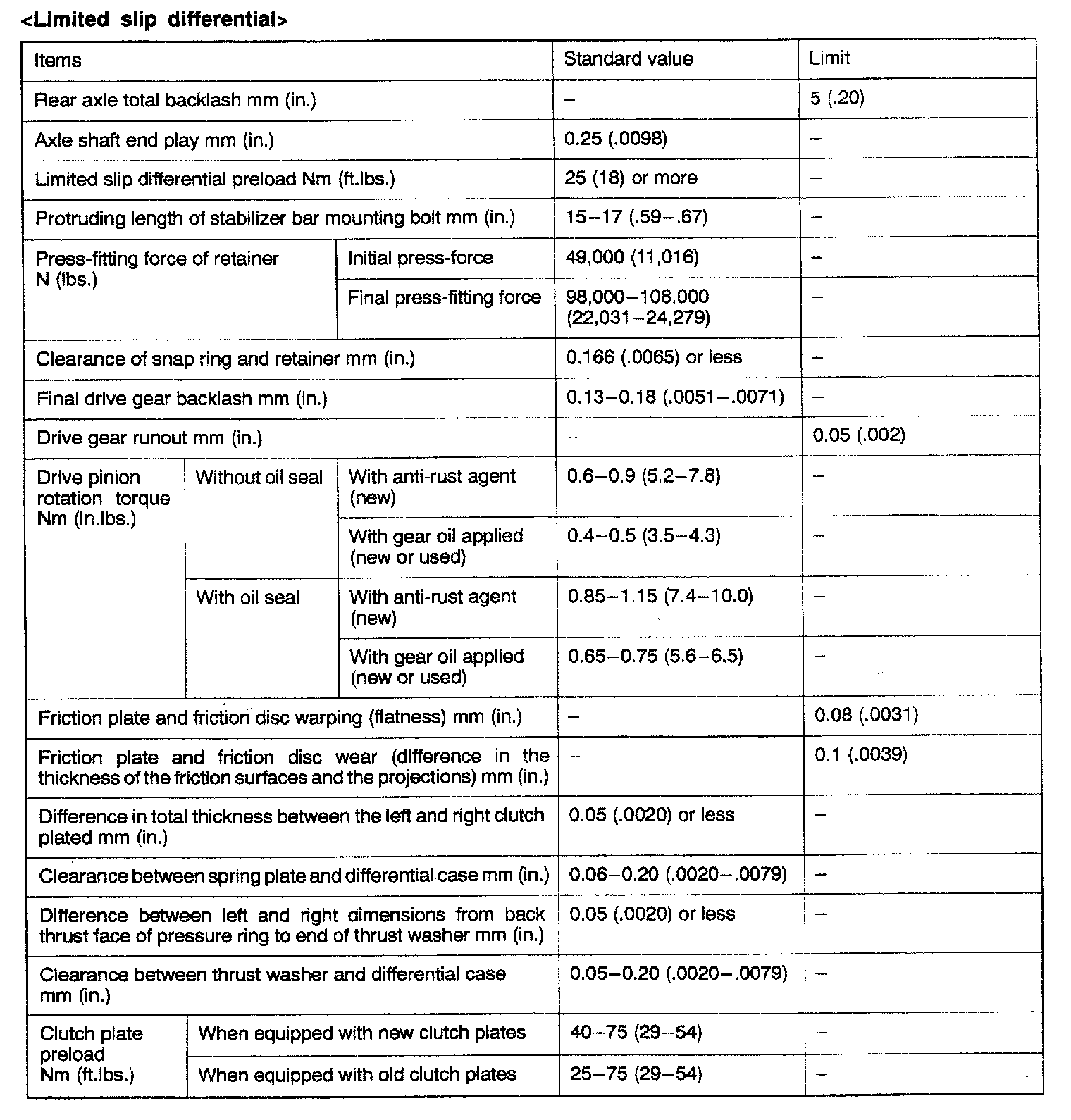

4WD Rear Differential Standard Values & Limits (LSD):

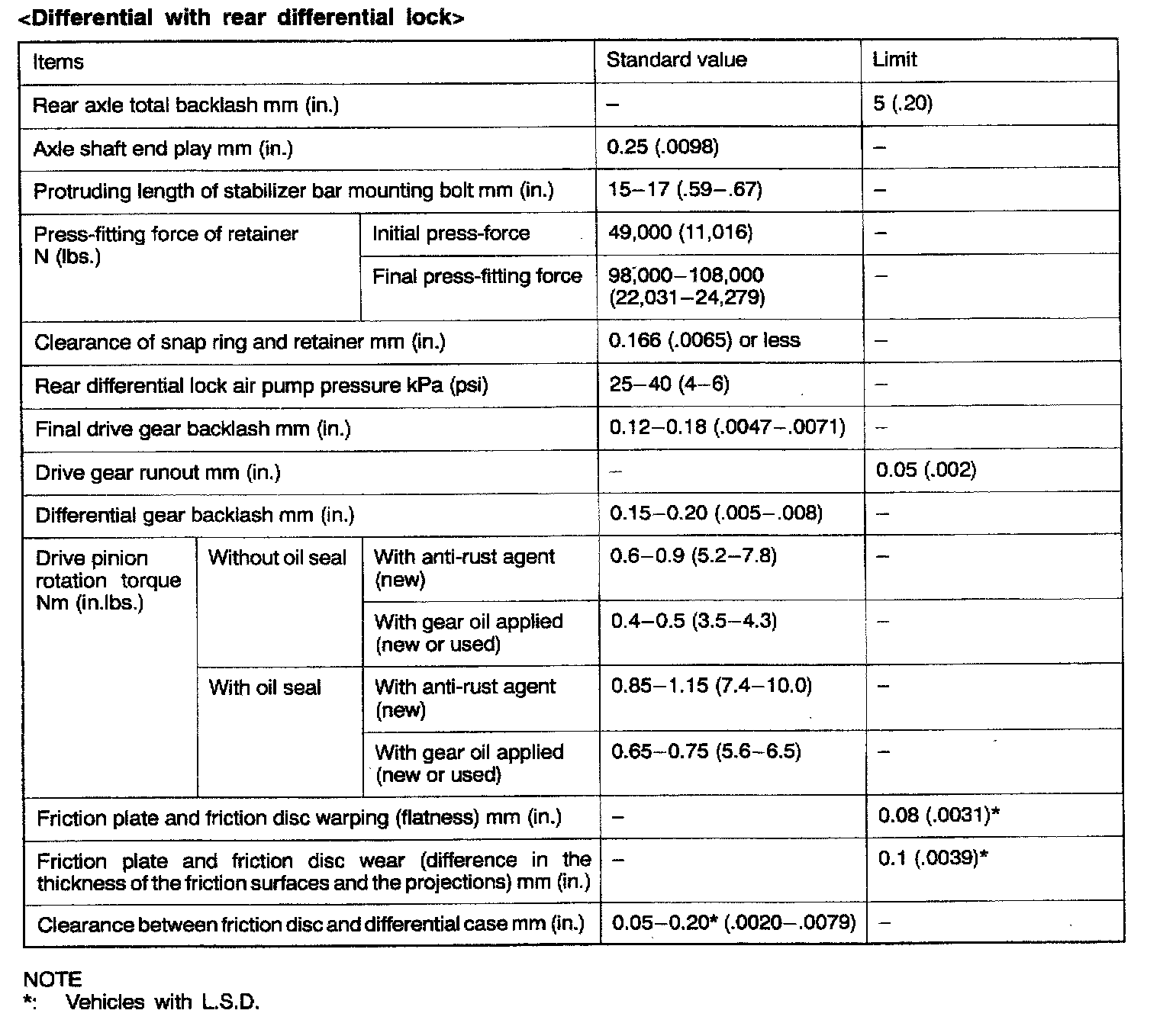

4WD Rear Differential Standard Values & Limits (Diff Lock):
