Transfer Case Torque Data

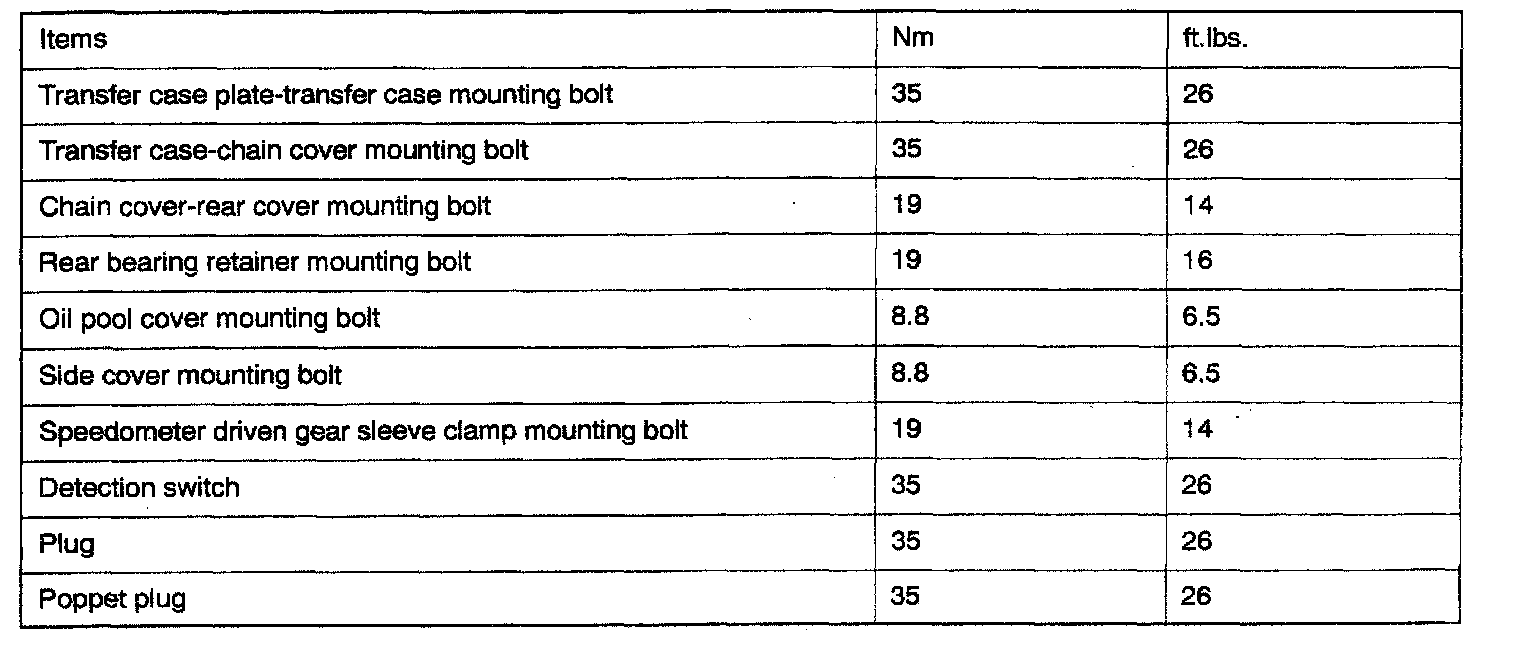

V5M31 5-spd M/T, Transfer Torque:

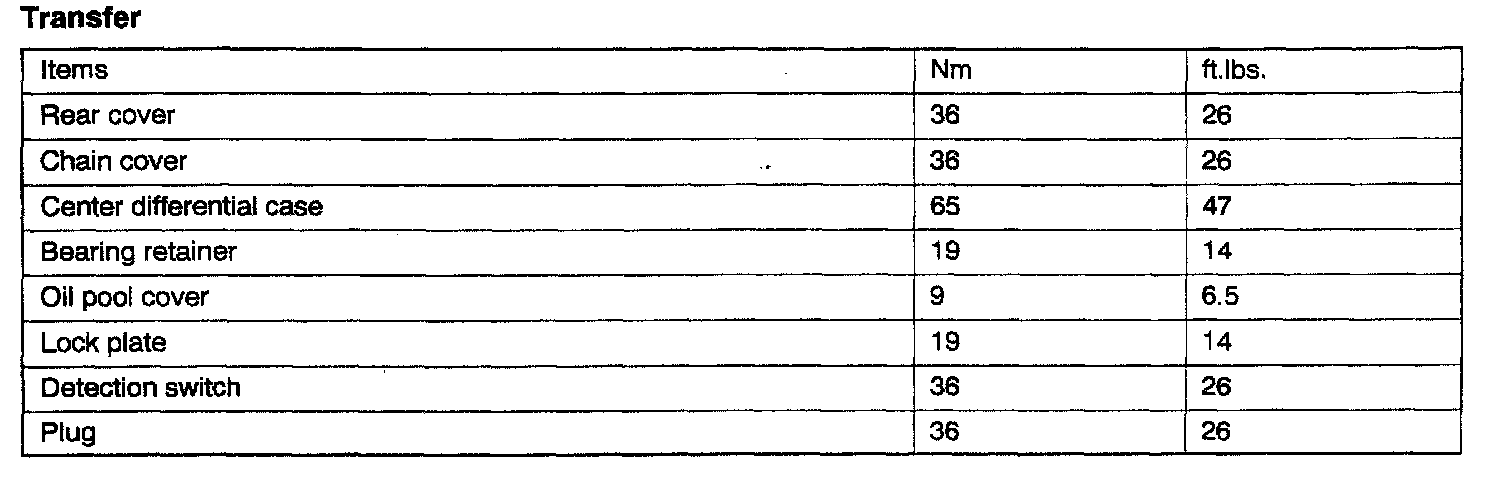

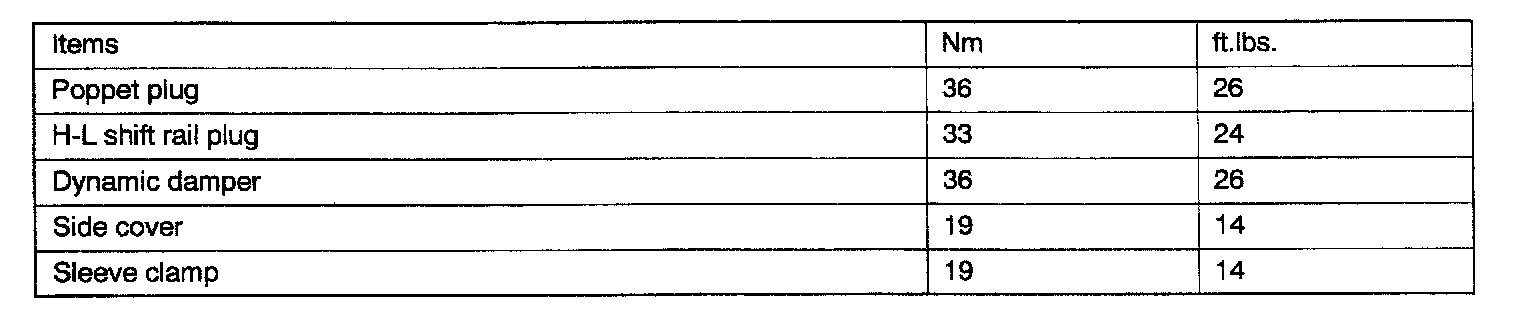

V4AW3 4-spd A/T, Transfer Torque:

V4AW3 4-spd A/T, Transmission Torque:
