Cruise Control Servo: Testing and Inspection
1.
Remove the actuator.
2.

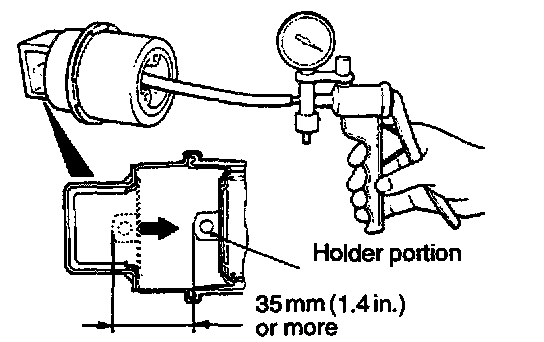

Using a vacuum pump, apply a negative pressure to the actuator to check that the holder portion moves more than
35 mm (1.4 in.). Retain the negative pressure in that state to check that the holder portion does not change its position.
3.
After the actuator has been mounted, check and adjust the cruise control cable.
