Home >> Mitsubishi >> 1998 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System

Cooling System

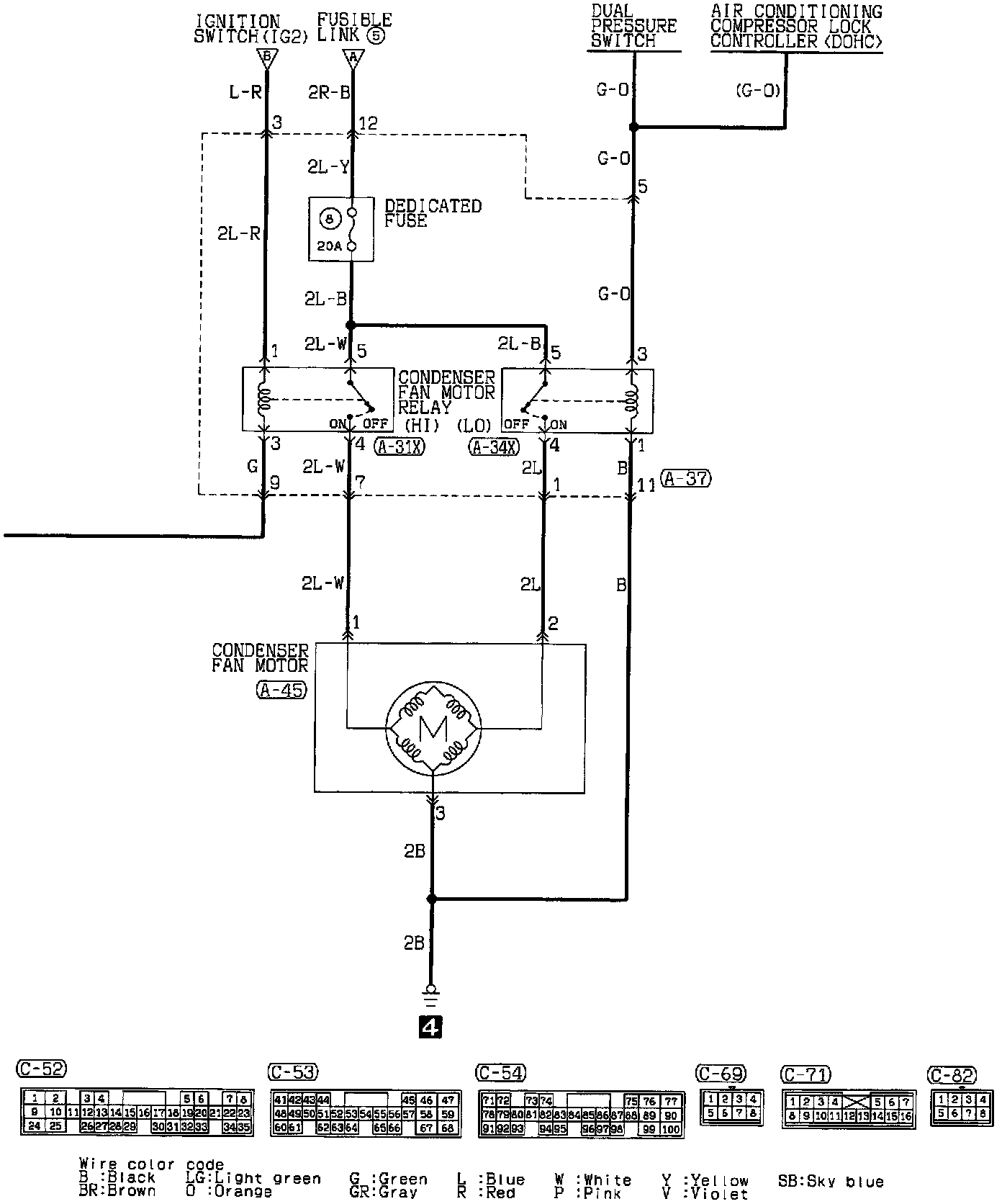

Cooling System (Part 1 Of 2):



Cooling System (Part 2 Of 2):
