Control Assembly: Testing and Inspection

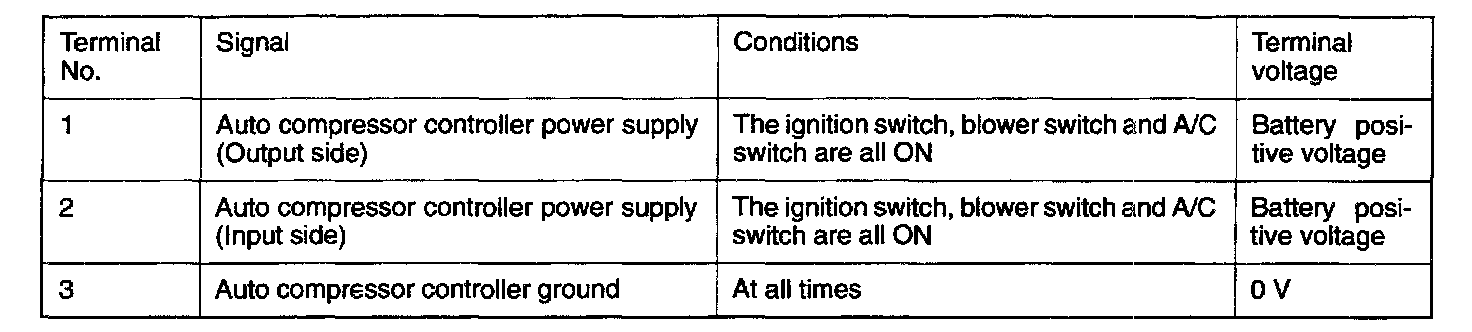

Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart.
Test Conditions:
1.
Ignition switch:
ON 2.
Air conditioning switch:
ON 3.
Temperature control lever: MAX. COOL
4.
Blower switch: HI
