Electrical Diagrams

Heater:

Manual Air Conditioning System (Part 1 Of 5):

Manual Air Conditioning System (Part 2 Of 5):

Manual Air Conditioning System (Part 3 Of 5):

Manual Air Conditioning System (Part 4 Of 5):

Manual Air Conditioning System (Part 5 Of 5):

Auto Air Conditioning System (Part 1 Of 6):

Auto Air Conditioning System (Part 2 Of 6):

Auto Air Conditioning System (Part 3 Of 6):

Auto Air Conditioning System (Part 4 Of 6):

Auto Air Conditioning System (Part 5 Of 6):

Auto Air Conditioning System (Part 6 Of 6):

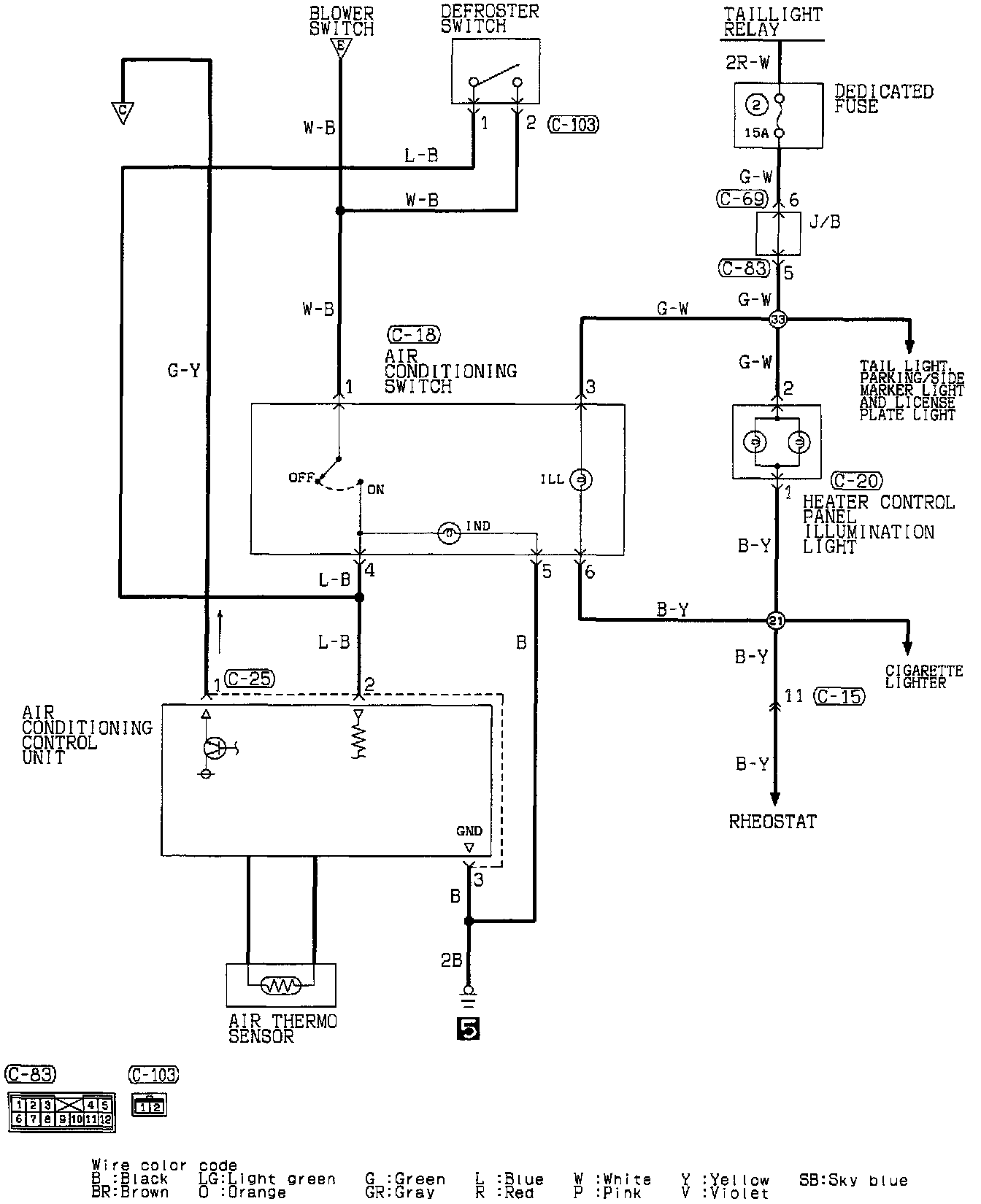

Air Conditioning Control Unit Circuit:
