Home >> Mitsubishi >> 1998 >> Eclipse GS L4-1997cc 2.0L DOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Locations

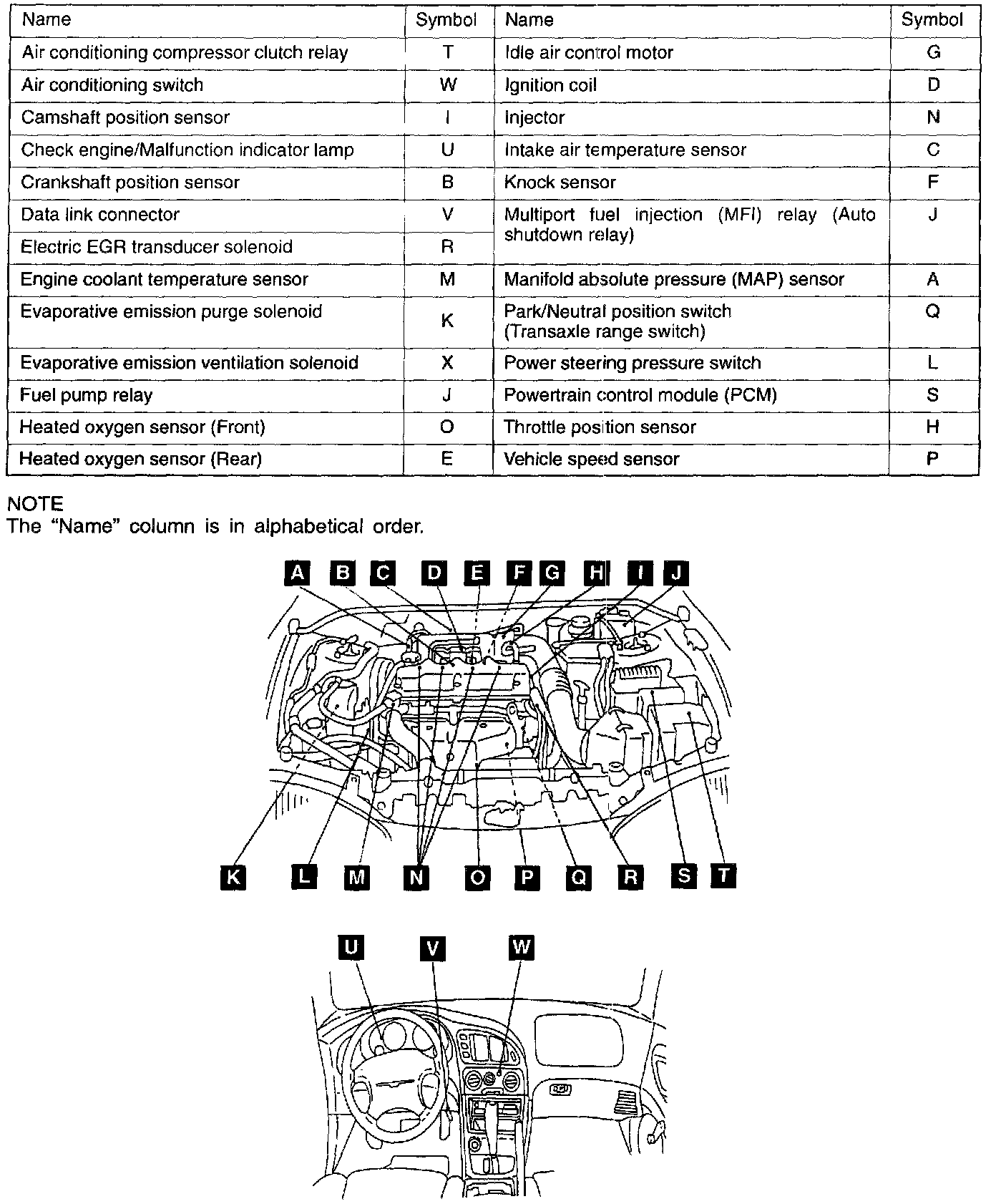

A/C Signal: Locations




COMPONENTS




A/C CLUTCH RELAY
