Output State Tests (Data List)
Output State Tests (Data List)

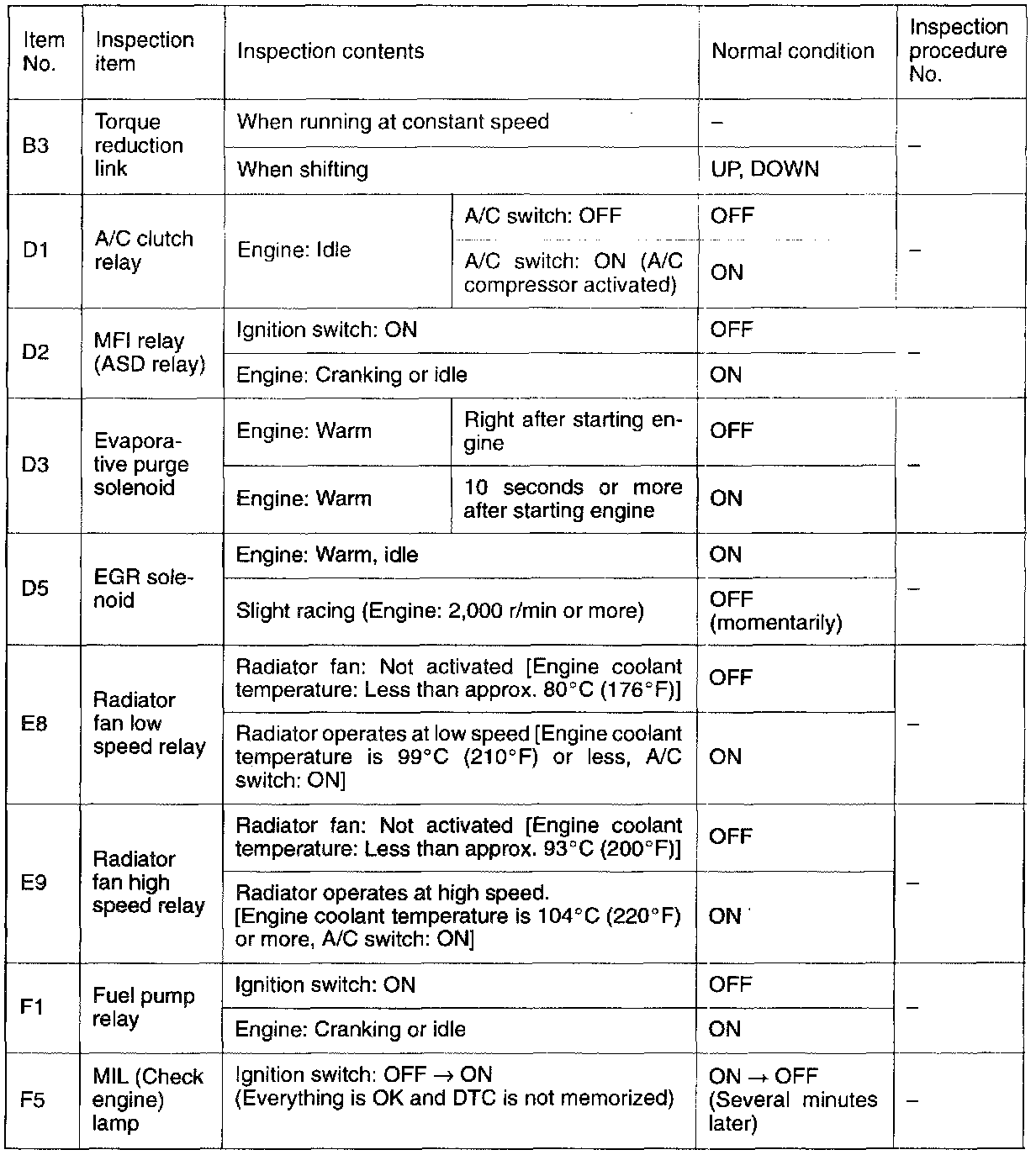

OUTPUT STATE TESTS (DATA LIST) REFERENCE TABLE
