Main Bearing Cap Torque

TORQUE SPECIFICATIONS

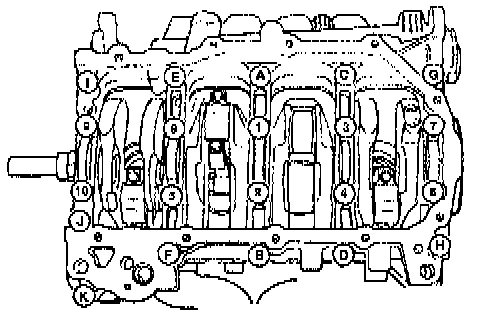

1. Main Bearing Bedplate to engine block bolts (1 thru 10) finger tight.
2. Torque main bearing bolts to 75 Nm (55 ft lbs.) in sequence shown.
3. Main Bearing Bedplate to engine block bolts (A thru K) finger tight.
4. Torque each bolt to 28 Nm (20 ft.lbs.) in sequence shown.
