Service Procedures Using MUT II

Service operations can be performed most effectively using the following MUT-II functions:

- Reading of diagnosis codes
Using the diagnosis code function, it is possible to read diagnosis codes stored in the control unit.

- Erasure of diagnosis codes
By selecting the diagnosis code erasure function from the special function menu, it is possible to erase diagnosis codes stored in the control unit.

- Indication of service data
When required for service operations, data in the control unit's random-access memory can be displayed as numeric values or graphs.

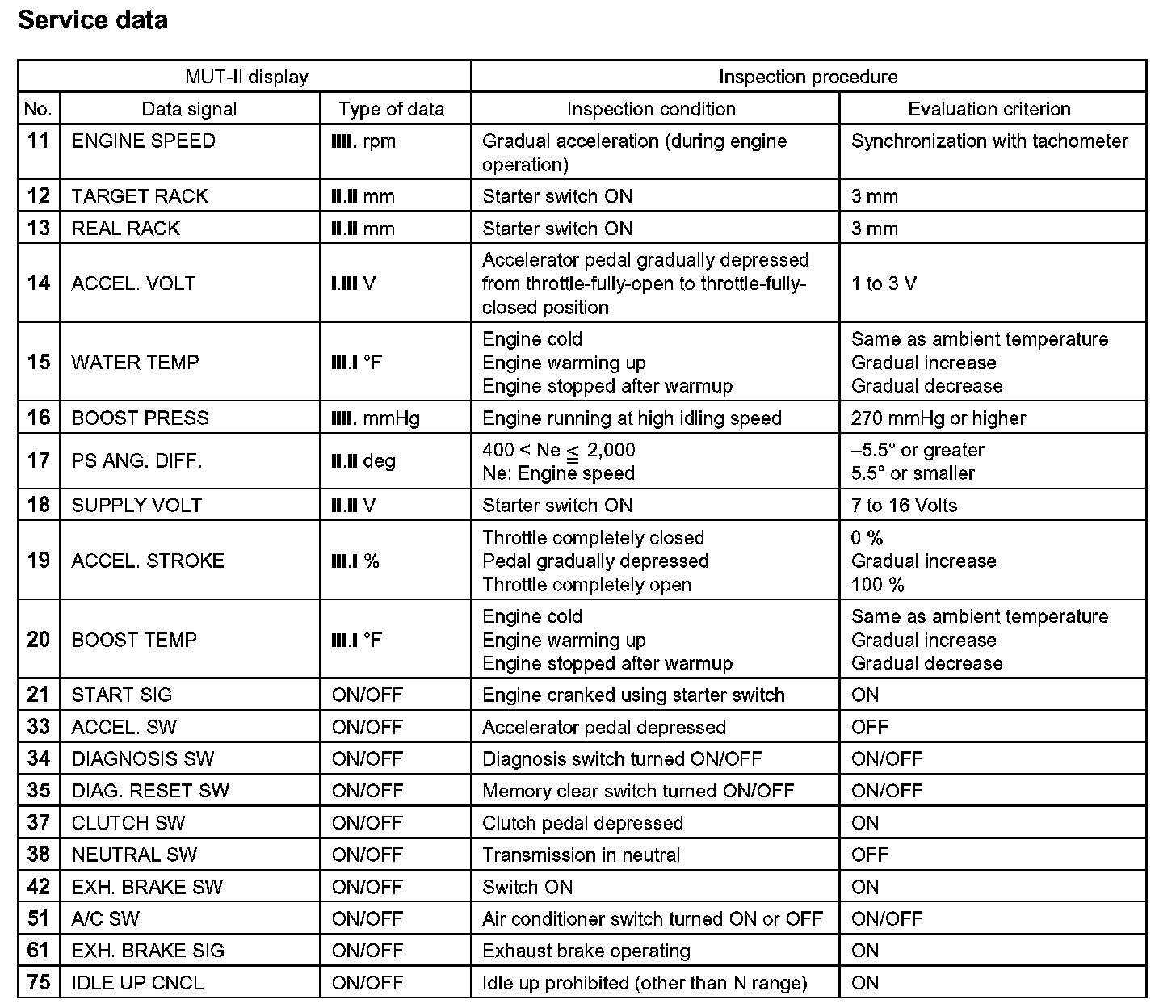

Service data
