Auto-Cruise Control Main Switch Check

1. Turn the ignition switch to ON.

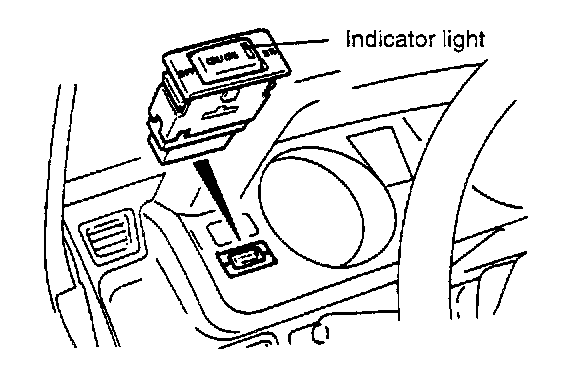

2. Check that the indicator light within the switch illuminate when the main switch is turned to ON.







Auto-Cruise Control Main Switch Check

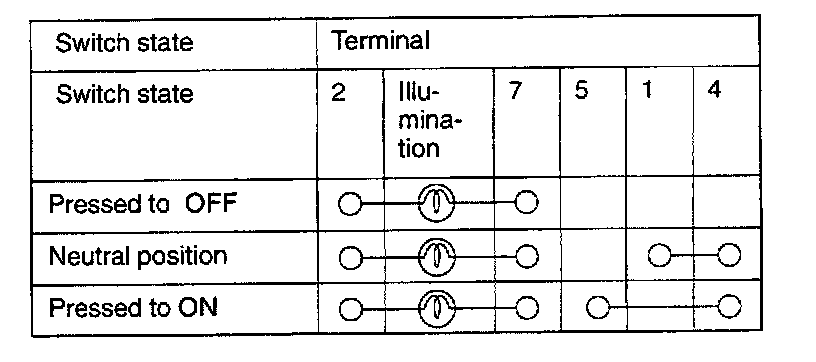

1. Operate the main switch and check the continuity between the terminals.

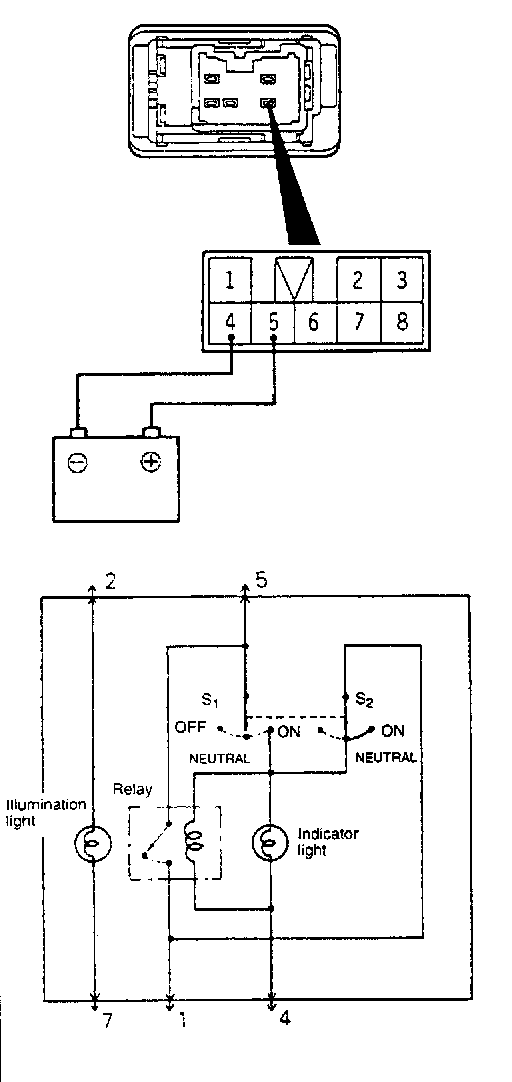

2. Connect the positive battery terminal to terminal (5) and the negative battery terminal to terminal (4), and then check that there is battery positive voltage between terminal (1) and the ground when the main switch is turned to ON and during the period before it is turned to OFF. Check that the battery positive voltage between terminal (1) and the ground is reduced to 0 V when the main switch is turned to OFF.
