Alignment: Testing and Inspection

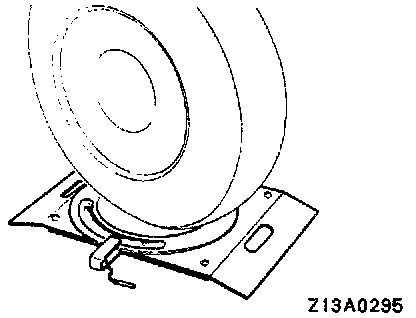

1. Place the front wheels on turning radius gauge and measure steering angle.

Standard value:
Inside wheel: 29° 40' to 32° 40'
Outside wheel: 29° 45'

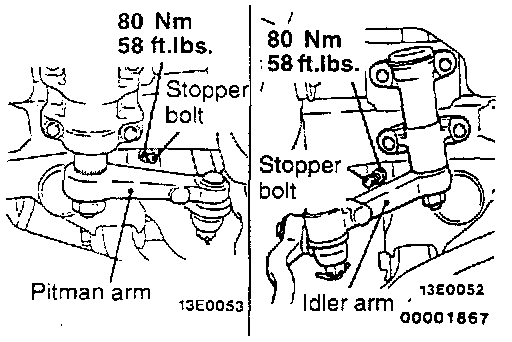

2. If the steering angle is outside the standard value, check the toe-in, and then adjust the steering angle with the stopper bolt.
