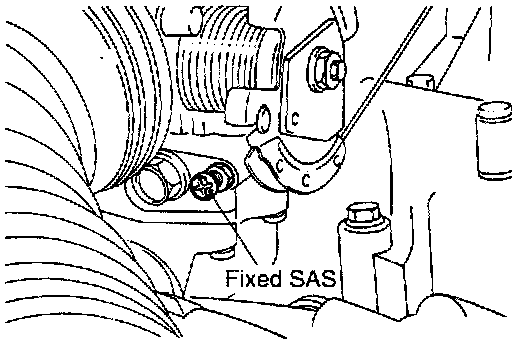

Fixed SAS Adjustment

NOTE:
1. The fixed SAS has been factory-adjusted. Never attempt to move it.
2. If the adjustment is incorrect, adjust by following the procedure given below.

(1) Sufficiently slacken the accelerator cable.
(2) Loosen the lock nut on the fixed SAS.
(3) Sufficiently loosen the fixed SAS by turning it counterclockwise to fully close the throttle valve.
(4) Turn the fixed SAS clockwise slowly to find a point at which it contacts the throttle lever (where the throttle valve starts opening). From that point, tighten the fixed SAS further 1 1/4 turns.
(5) While holding the fixed SAS to prevent it from turning tighten the lock nut securely.
(6) Adjust the accelerator cable tension. (Refer to Cruise Control System.)
(7) Adjust the basic idle speed.
(8) Adjust the closed throttle position switch and throttle position sensor (TPS). Refer to closed throttle position switch and throttle position sensor/Adjustments.
