Speed Sensor

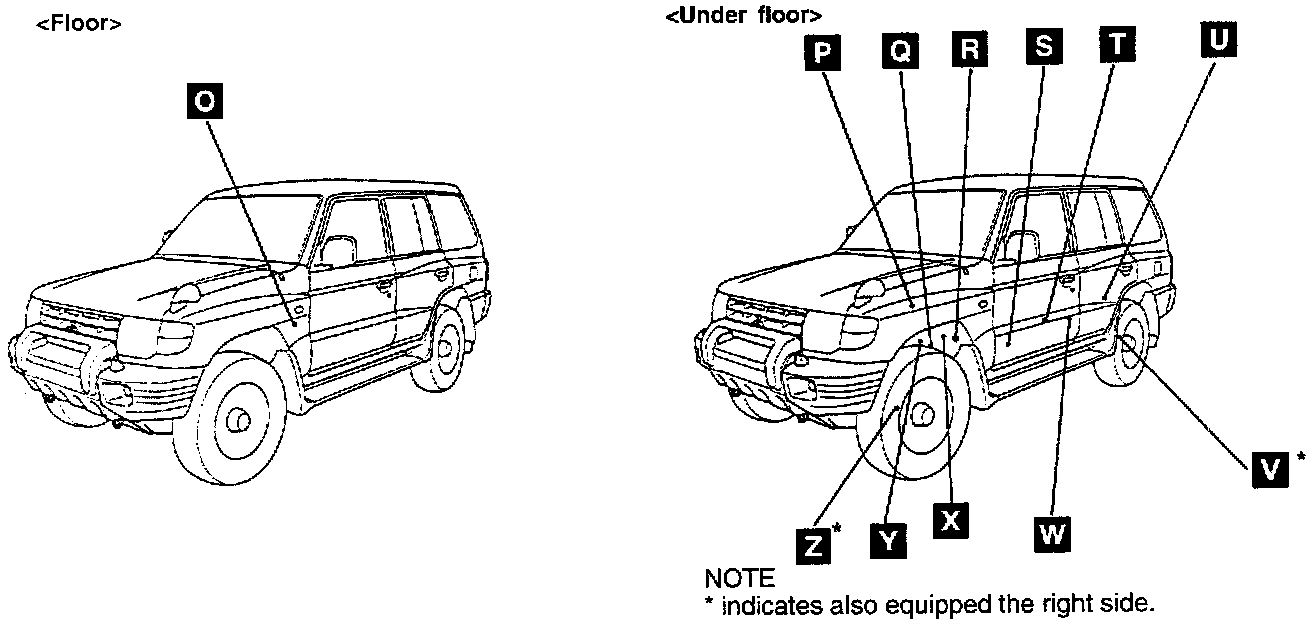

Sensor Location Overall Views:

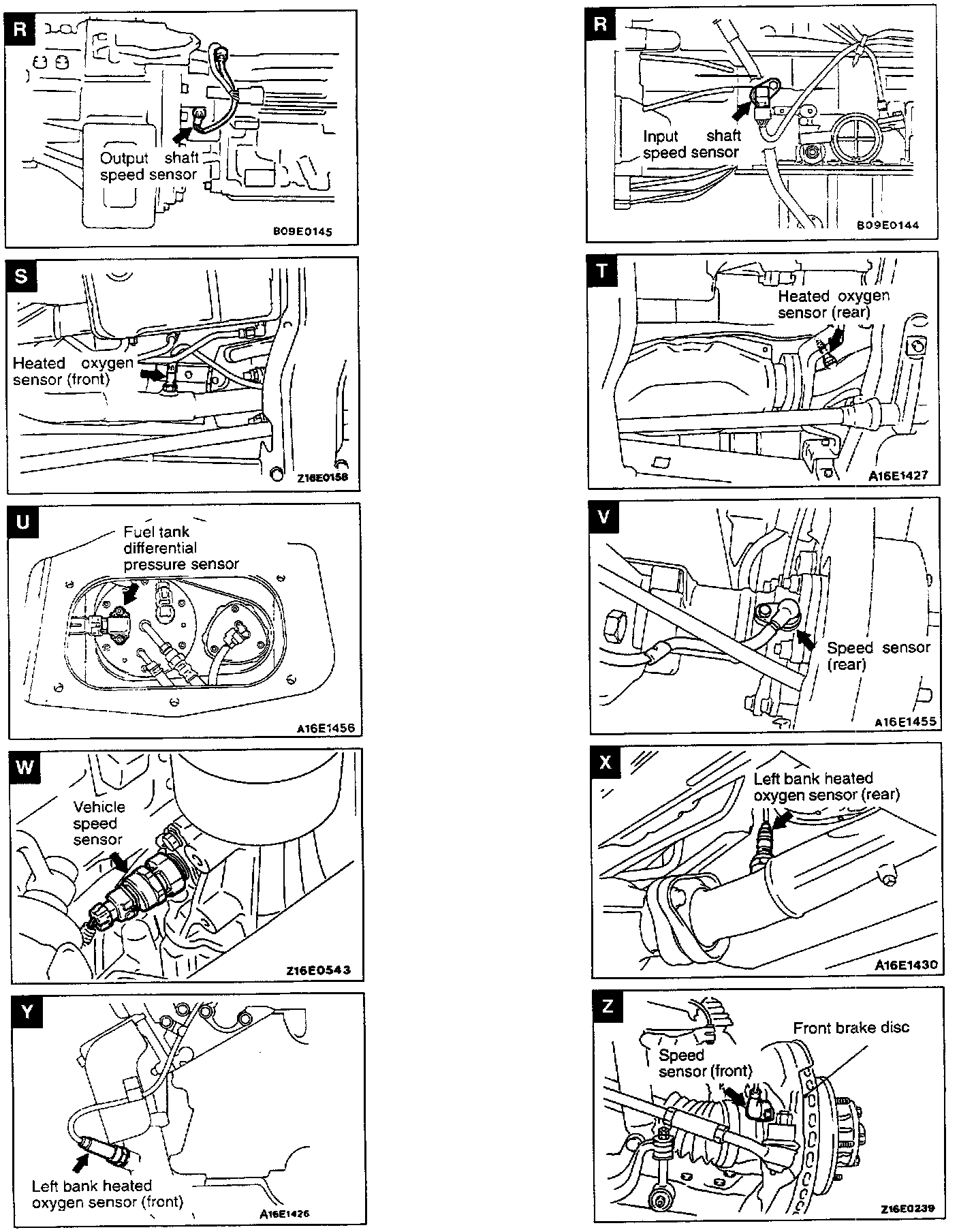

Sensor Location View R - Z:






SENSOR VIEW
Vehicle Speed Sensor W
