Powertrain Management: Locations

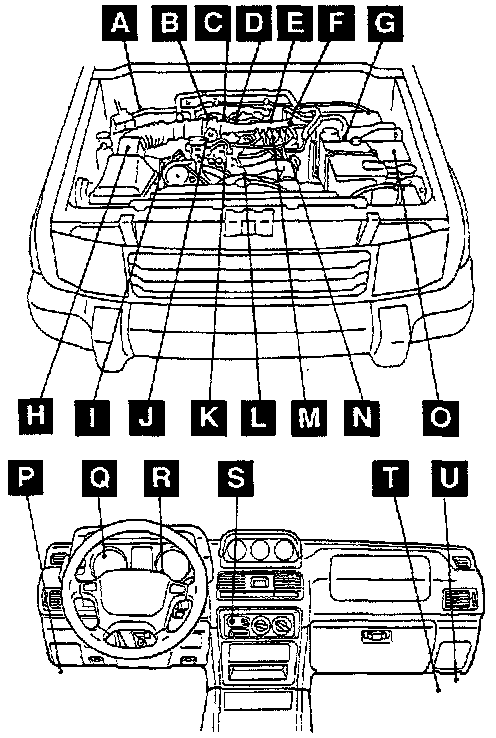

Under hood and under dash locations

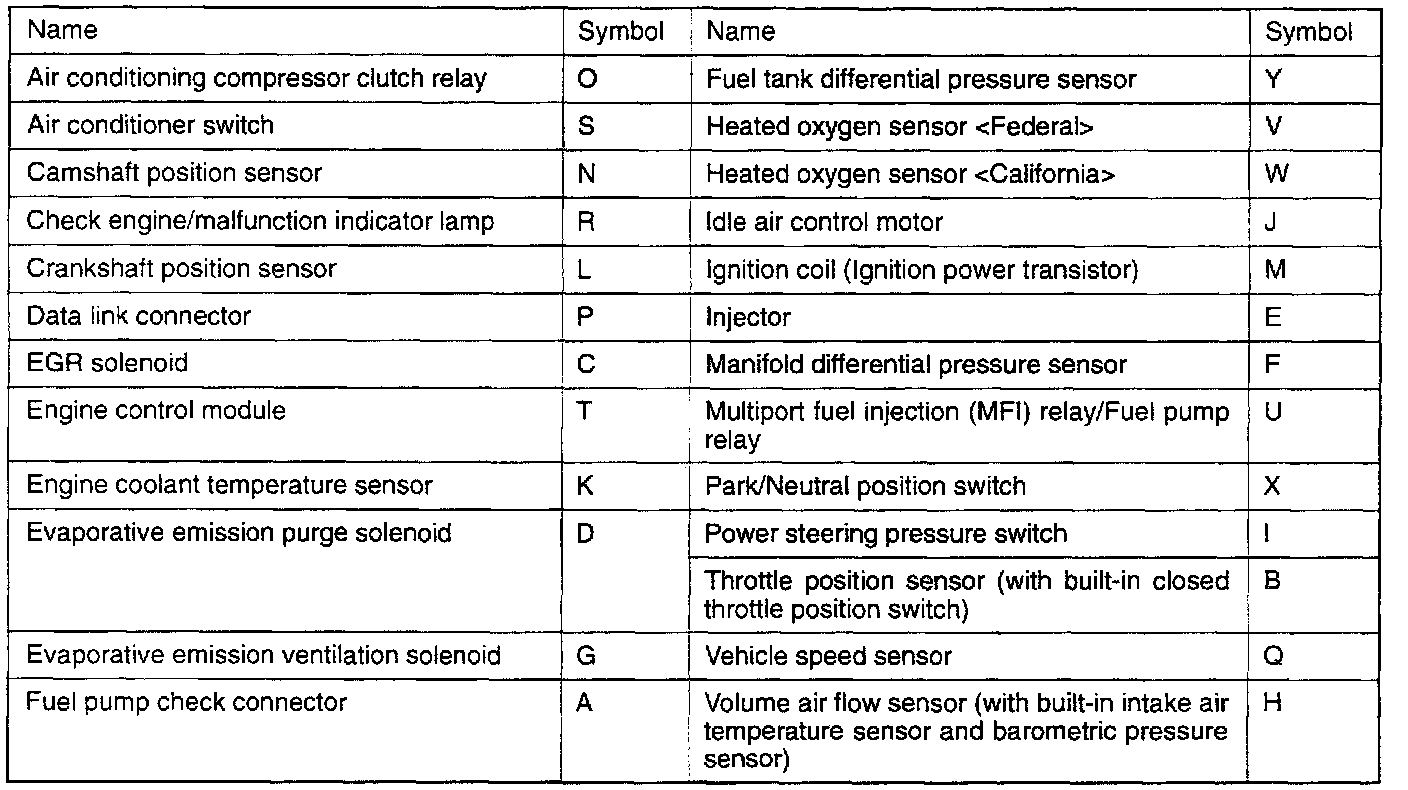

Component name and symbol

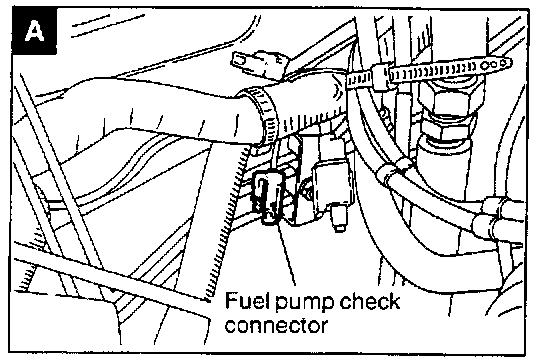

Component A, Fuel pump check connector

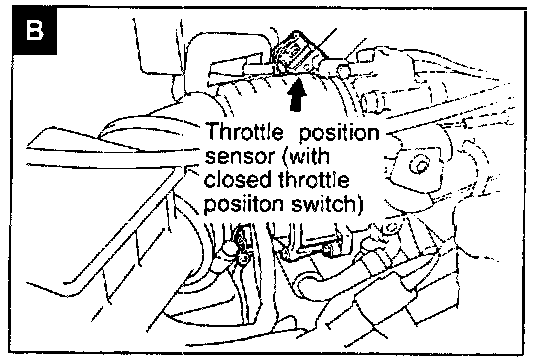

Component B, Throttle position sensor

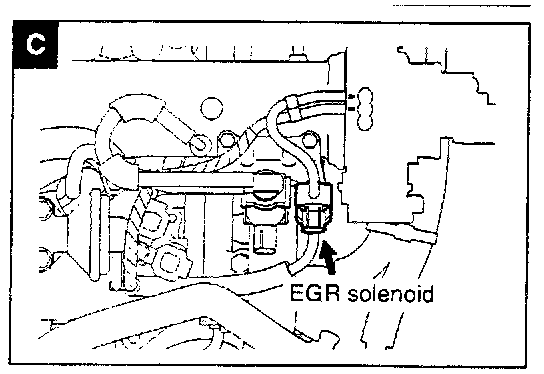

Component C, EGR solenoid

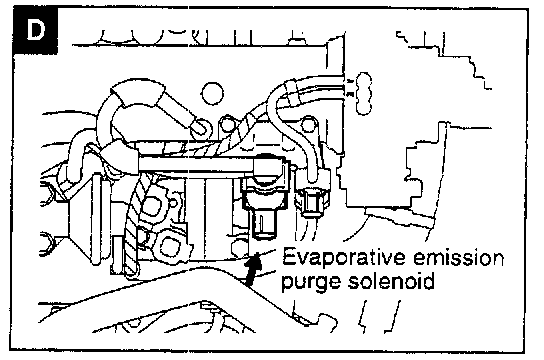

Component D, Evaporative emission purge solenoid

Component E, Fuel injector

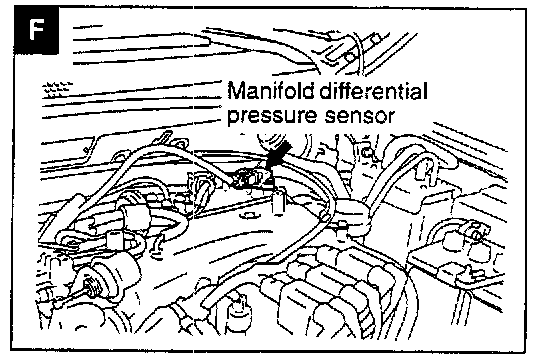

Component F, Manifold differential pressure sensor

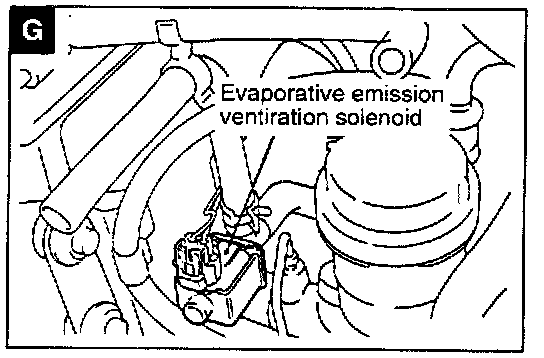

Component G, Evaporative emission ventilation solenoid

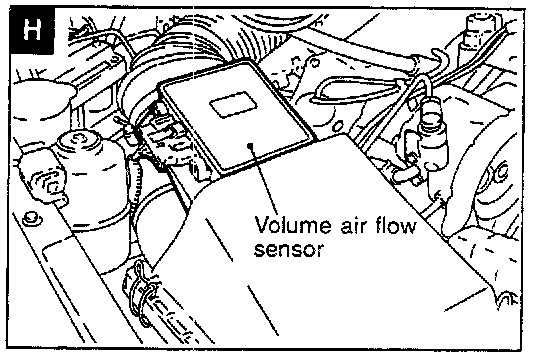

Component H, Volume air flow sensor

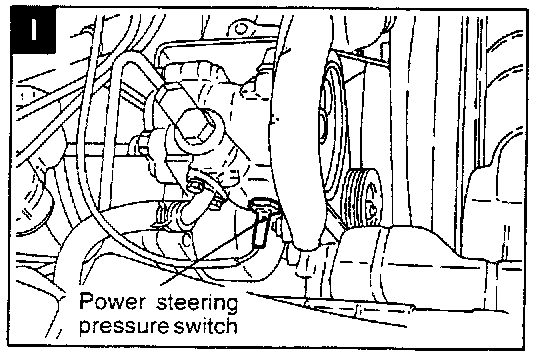

Component I, Power steering pressure switch

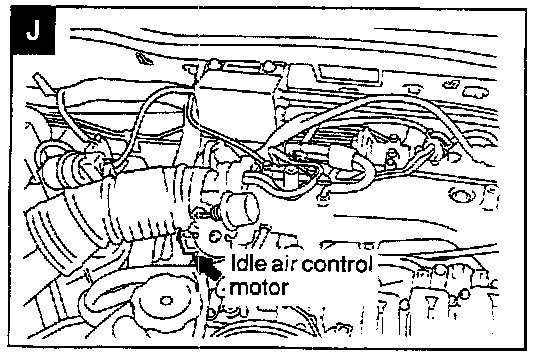

Component J, Idle air control motor

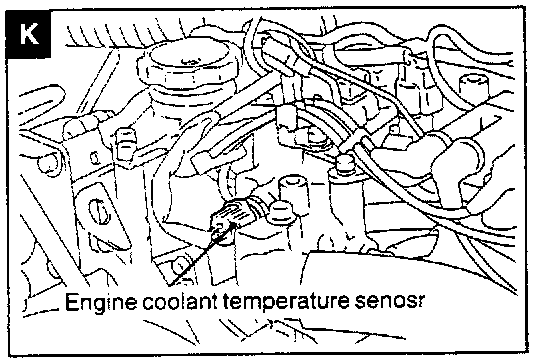

Component K, Engine coolant temperature sensor

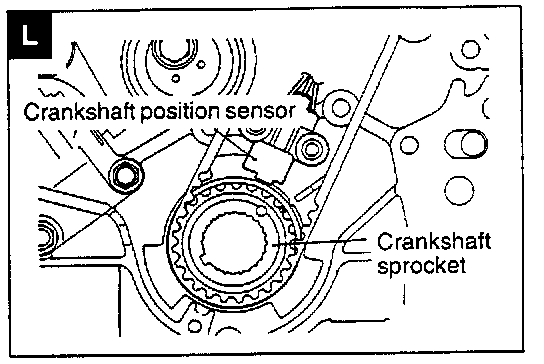

Component L, Crankshaft position sensor

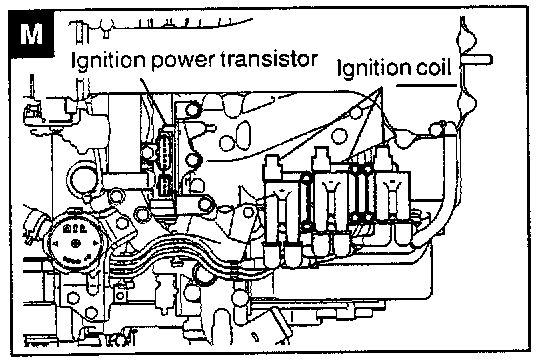

Component M, Ignition power transistor, Ignition coil

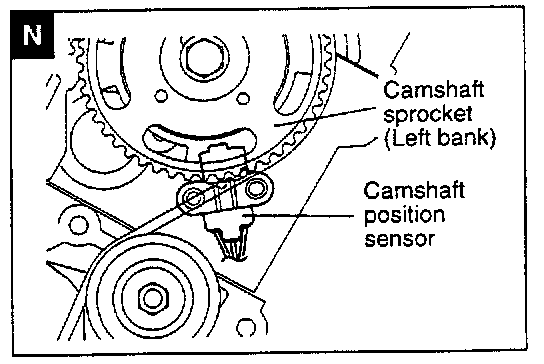

Component N, Camshaft position sensor

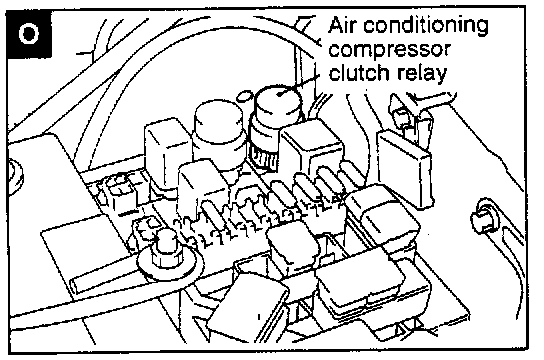

Component O, A/C compressor clutch relay

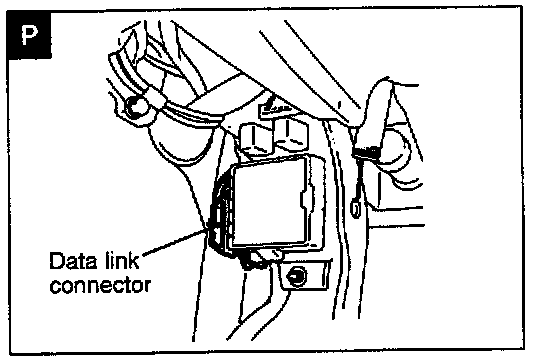

Component P, Data link connector

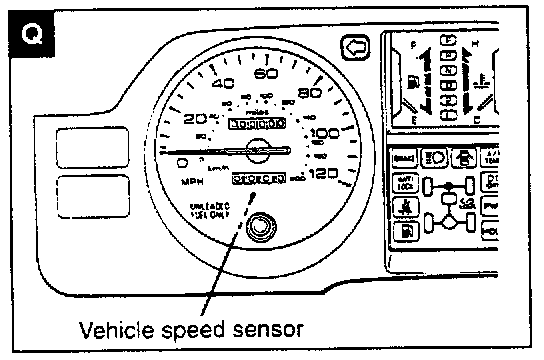

Component Q, Vehicle speed sensor

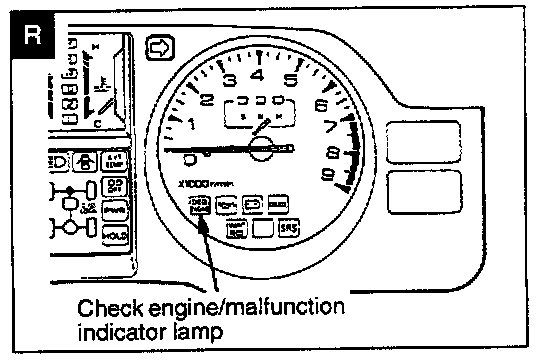

Component R, MIL/Check engine light

Component S, A/C switch

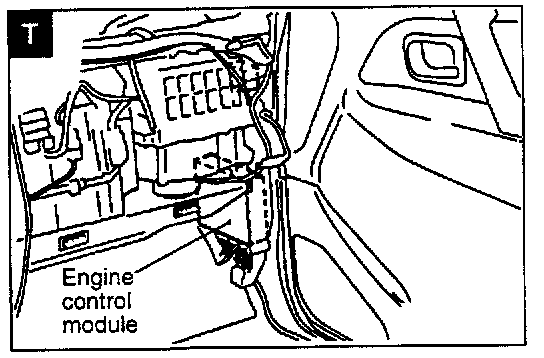

Component T, Engine control module

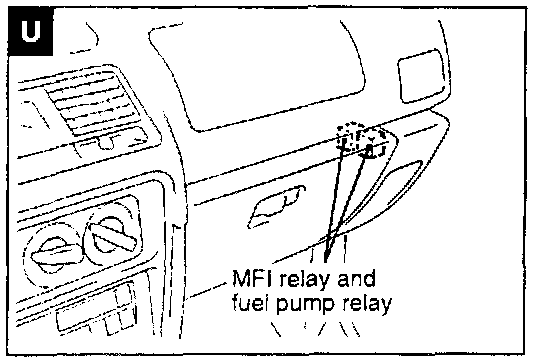

Component U, MFI relay and Fuel pump relay

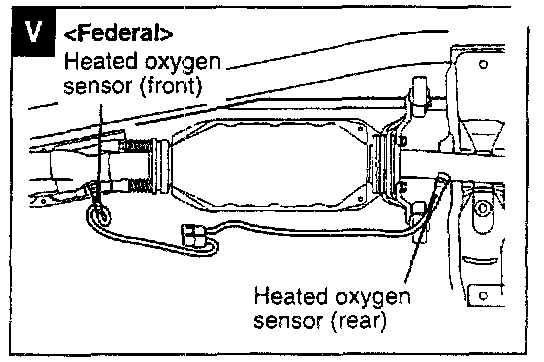

Component V, Heated Oxygen sensor (Federal)

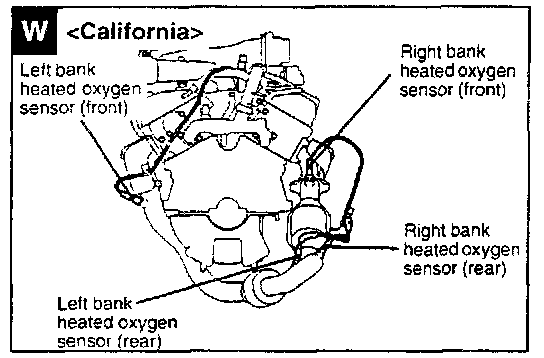

Component W, Heated Oxygen sensors (California)

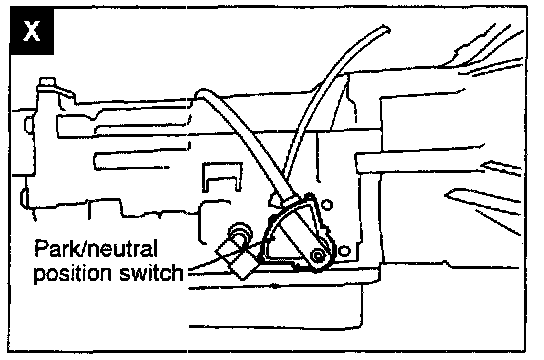

Component X, Park/neutral position switch

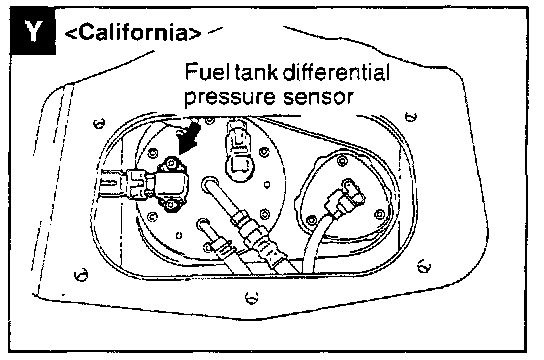

Component Y, Fuel tank differential pressure sensor (California)
