Electronic Brake Control Module: Testing and Inspection

TERMINAL VOLTAGE CHECK CHART
1. Measure the voltages between terminals (12), (25) and (42) (ground terminals) and each respective terminal.

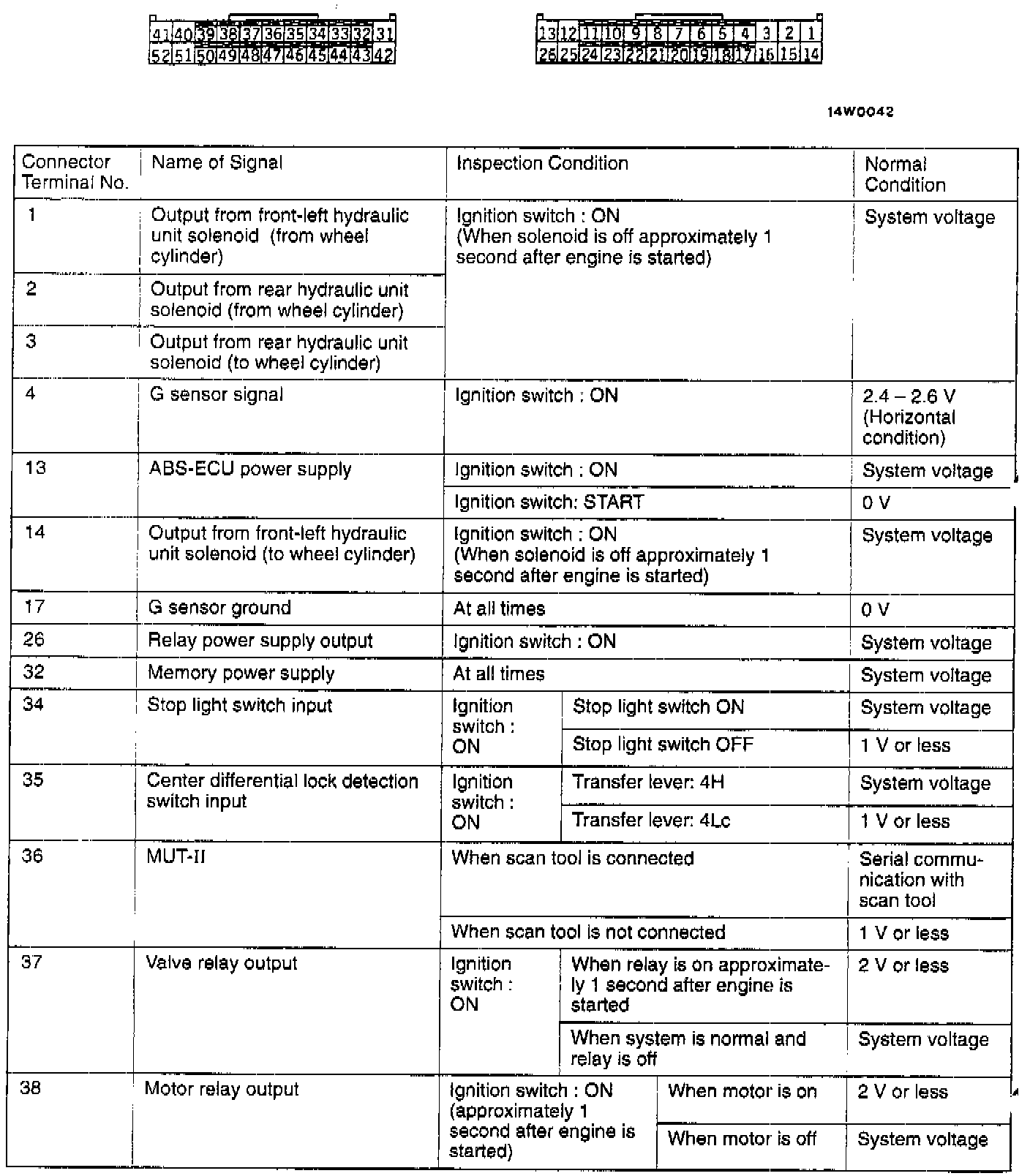

Part 1 Of 2:

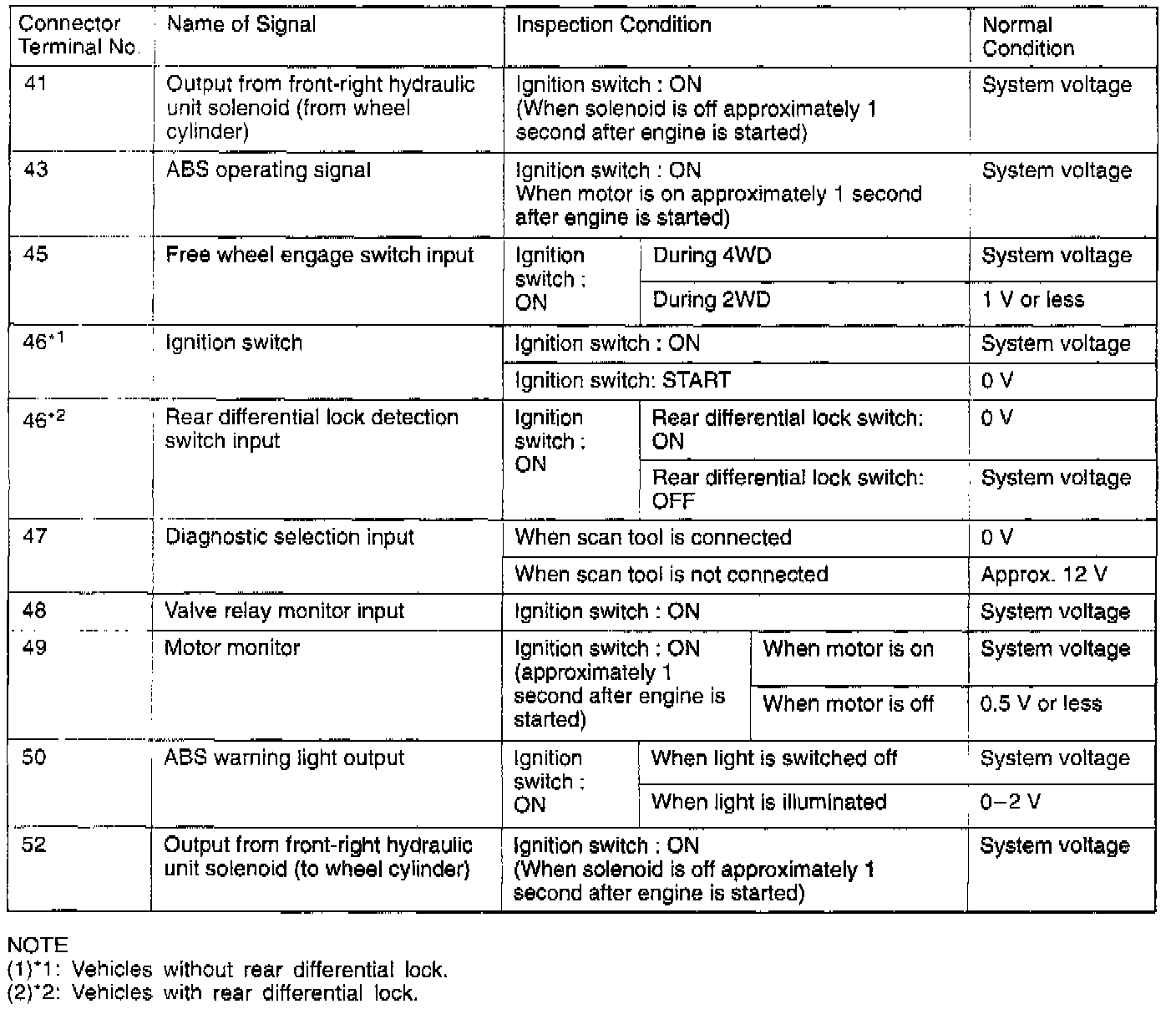

Part 2 Of 2:

2. The terminal layouts are shown in the illustrations.

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS
1. Turn the ignition switch off and disconnect the ABS-ECU connector before measuring resistance and checking continuity.
2. Measure resistance and check continuity between the terminals indicated in the table below.

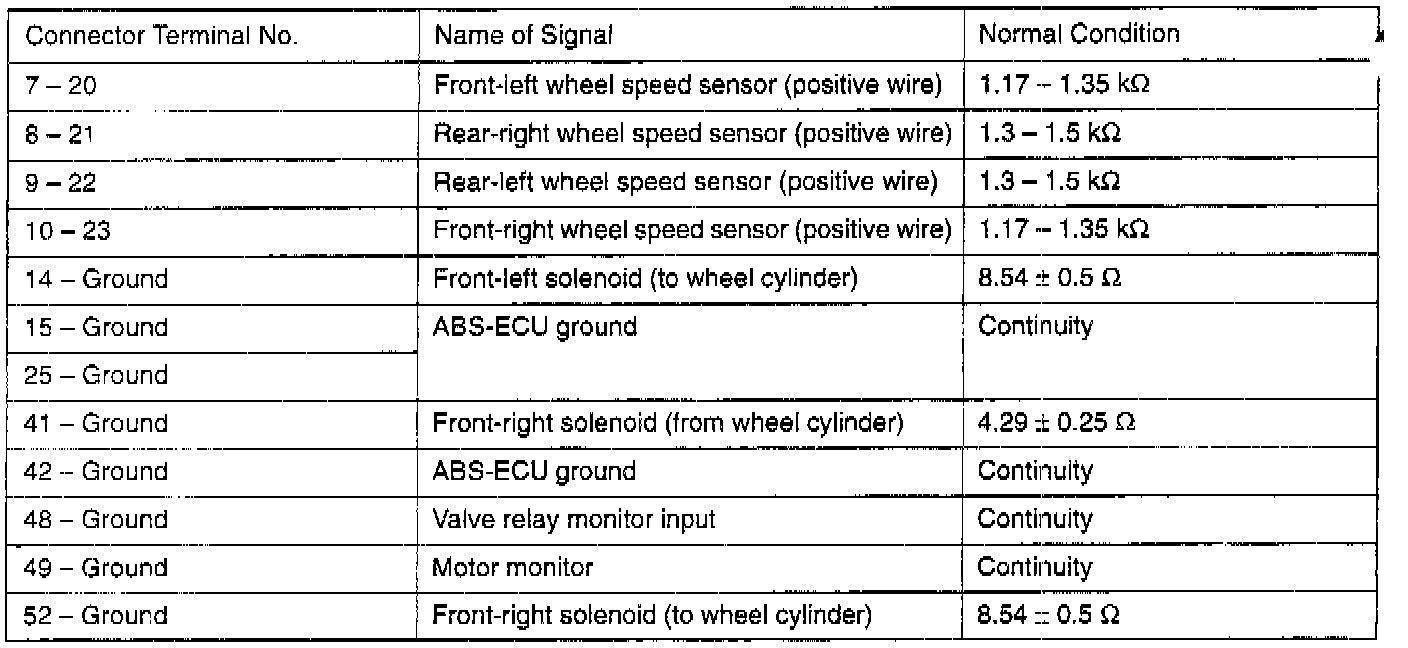

Part 1 Of 2:

Part 2 Of 2:

3. The terminal layouts are shown in the illustrations.
