Computer Connector

Foreword
Connector which gives loose engagement shall be rectified by removing female terminal from connector housing and raising its lance to establish securer engagement. Removal of connector housing and raising its lance to establish securer engagement. Removal of connector terminal used for MFI and ELC-4 A/T control circuit shall be done.

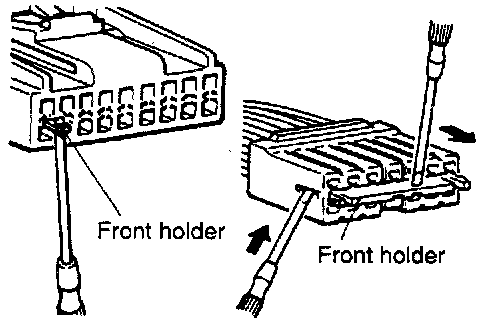

1. Insert screwdriver [1.4 mm (0.06 in.) width] as shown in the figure disengage front holder and remove it.

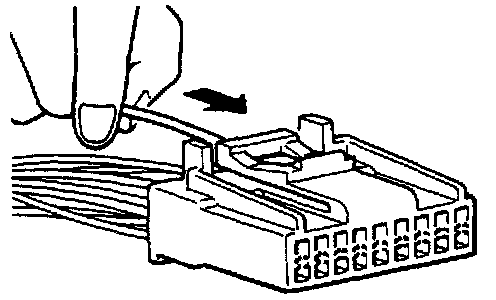

2. Insert harness of terminal to be rectified deep into connector from harness side and hold it there.

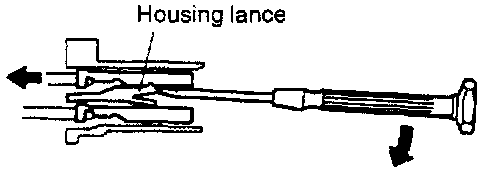

3. Insert tip of screwdriver [1.4 mm (0.06 in.) width] into connector in a manner as shown in the figure. Raise housing lance slightly with it and pull out harness.

NOTE: Tool No.753787-1 supplied by AMP can be used instead of screwdriver.





4. Insert needle through a hole provided on terminal and raise contact point of male terminal.
