Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1998
>>
Montero 4WD V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Front Axle
Front Axle
4WD Front Differential Dimensions:

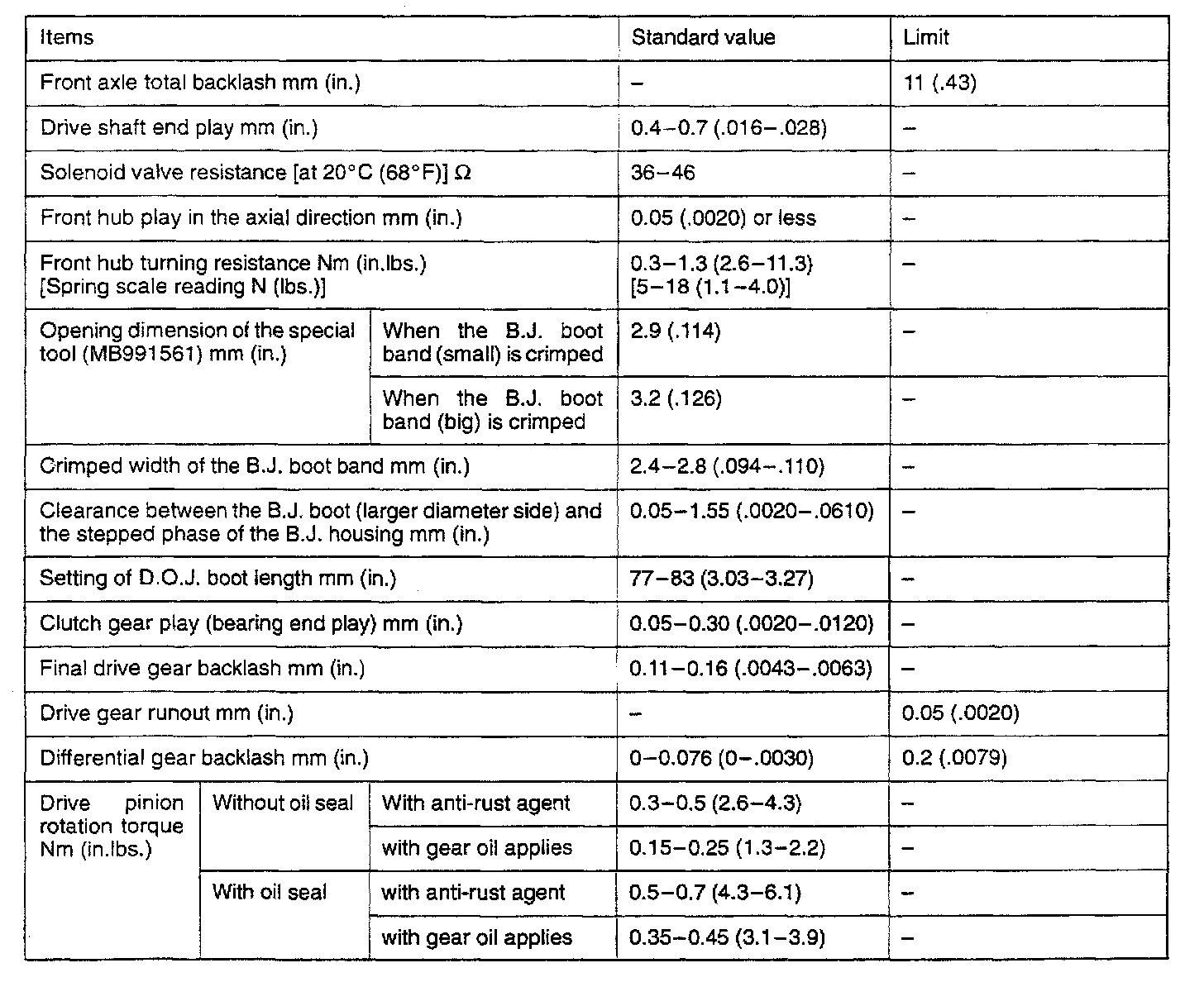

4WD Front Differential Standard Values & Limits:
