Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1998
>>
Montero 4WD V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Rear Axle
Rear Axle

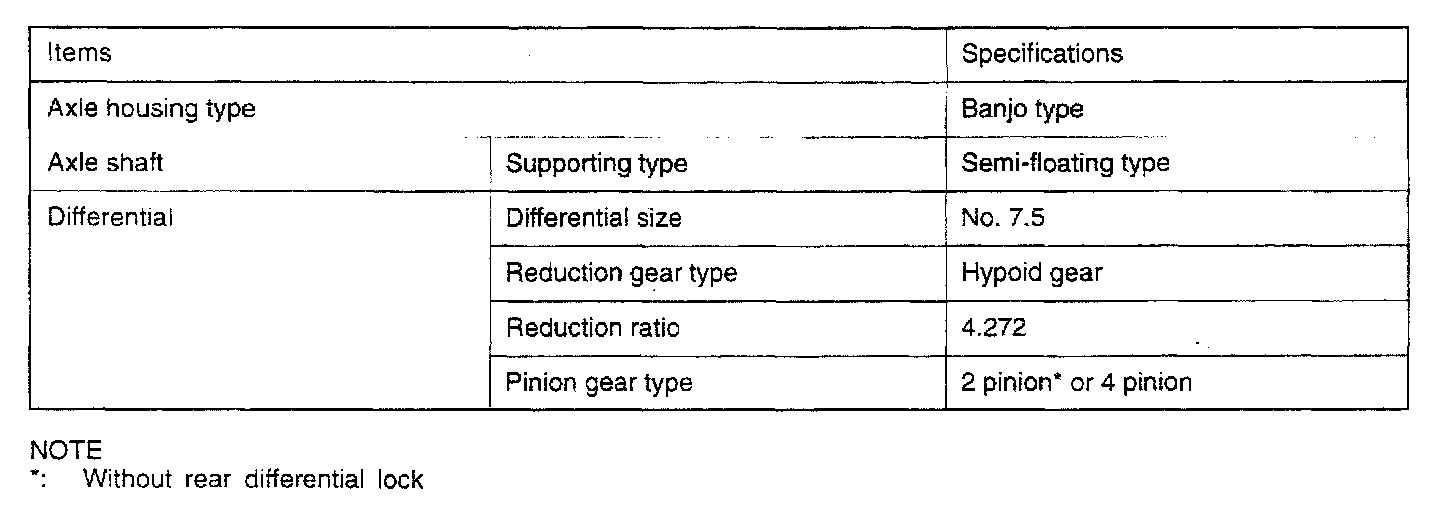

4WD Rear Differential Dimensions:

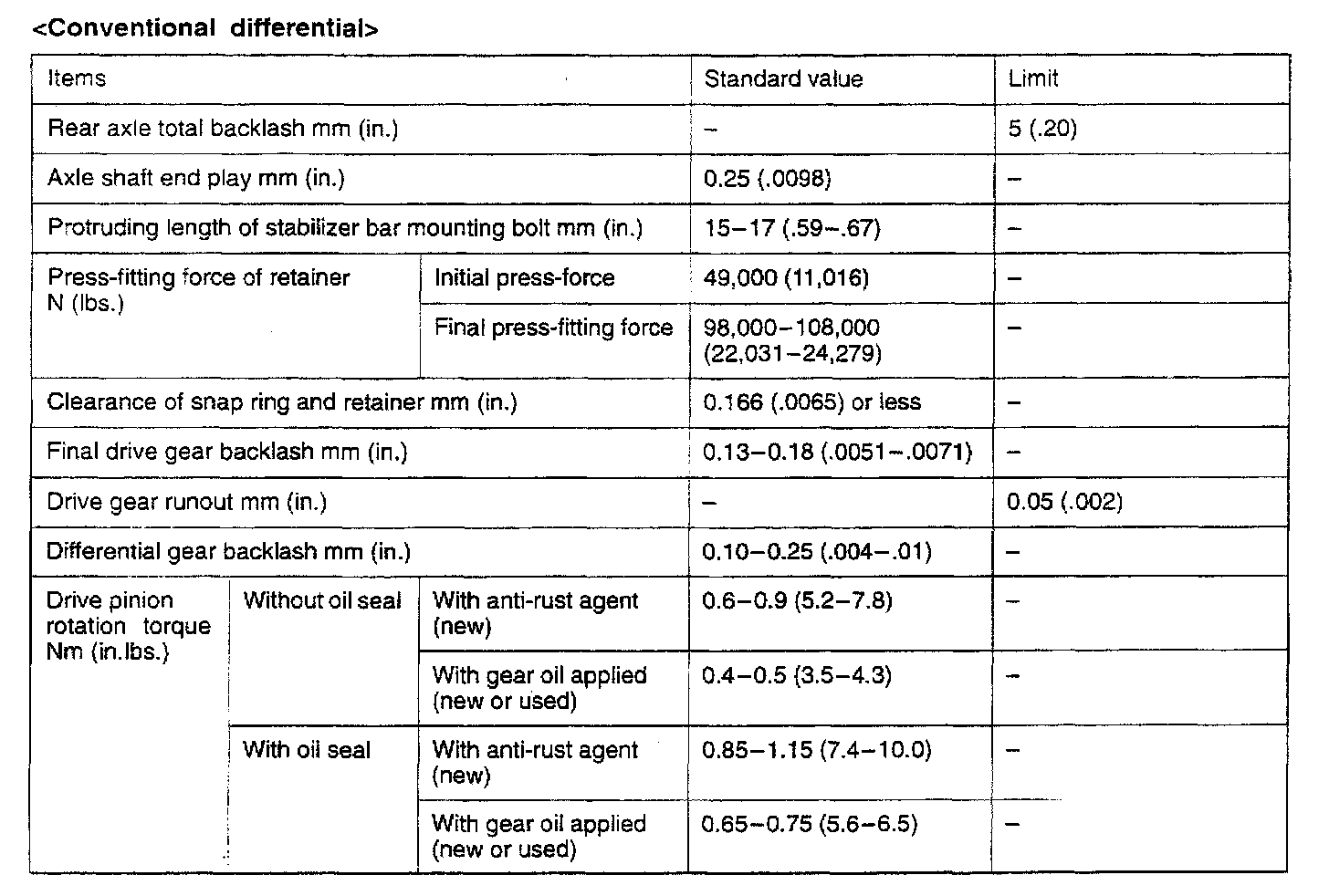

4WD Rear Differential Standard Values & Limits (Conventional):

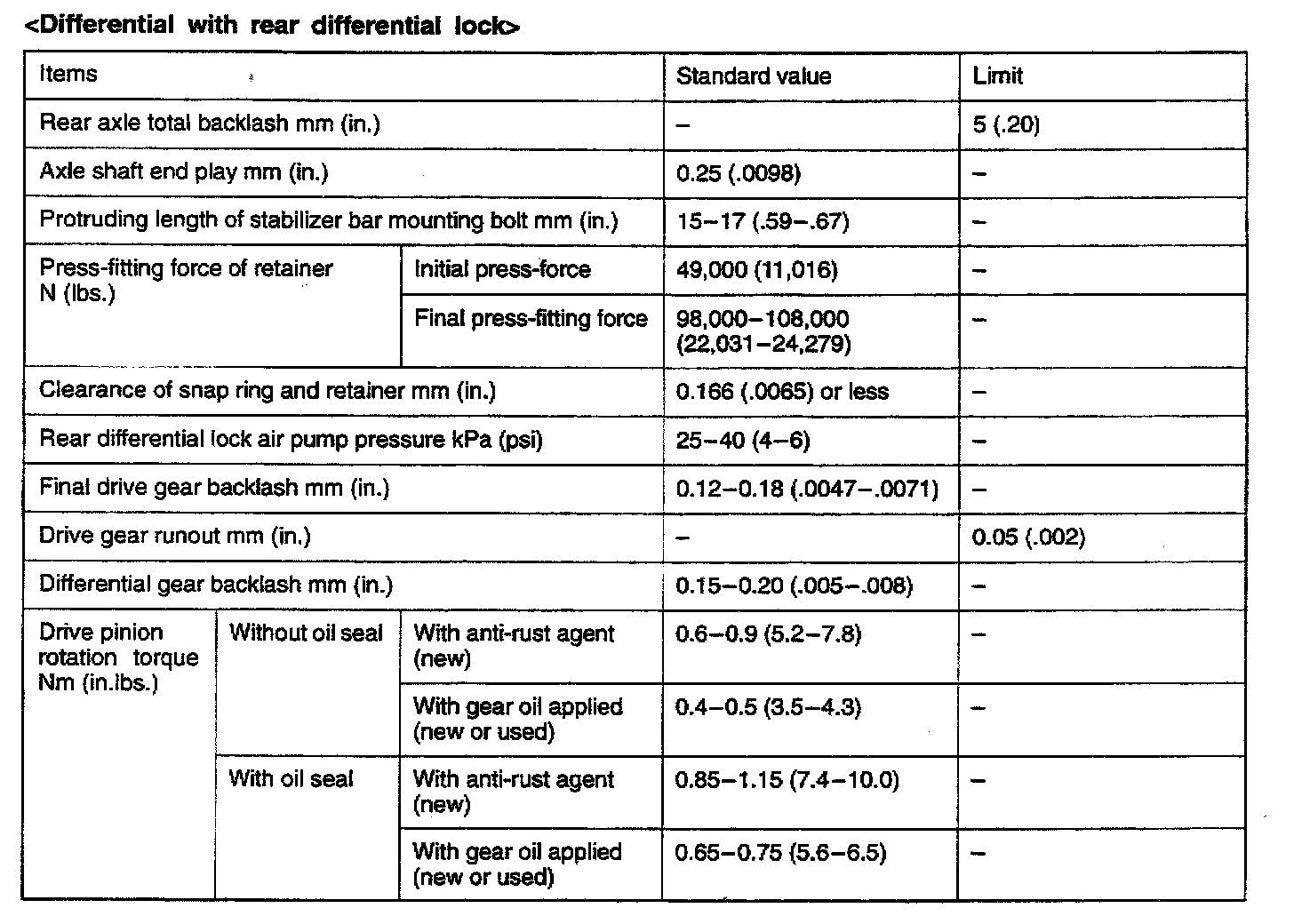

4WD Rear Differential Standard Values & Limits (Diff. Lock):
