Engine Assembly Replacement

Part 1 Of 2:




Part 2 Of 2:





SERVICE SPECIFICATIONS





REWORK DIMENSIONS

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

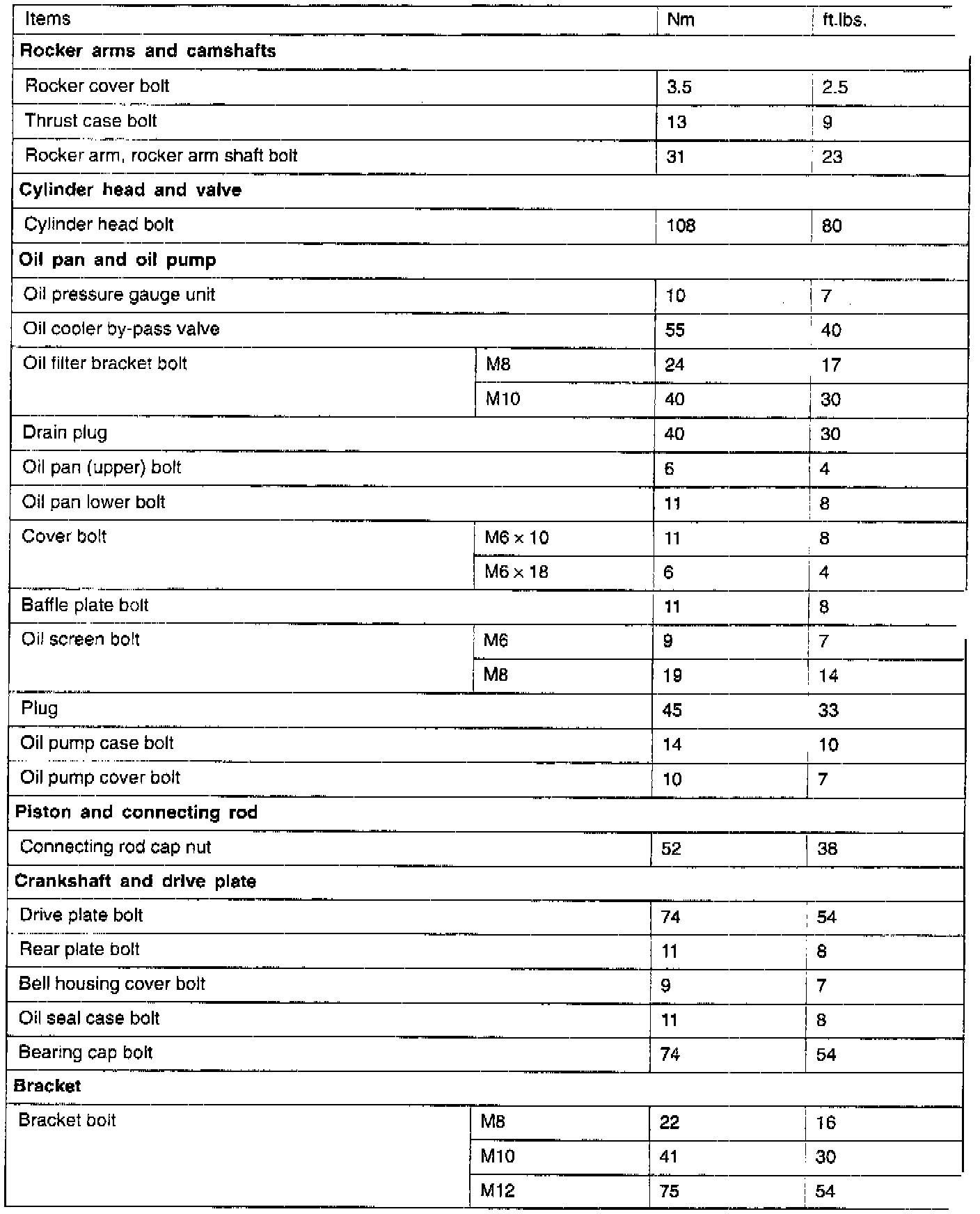

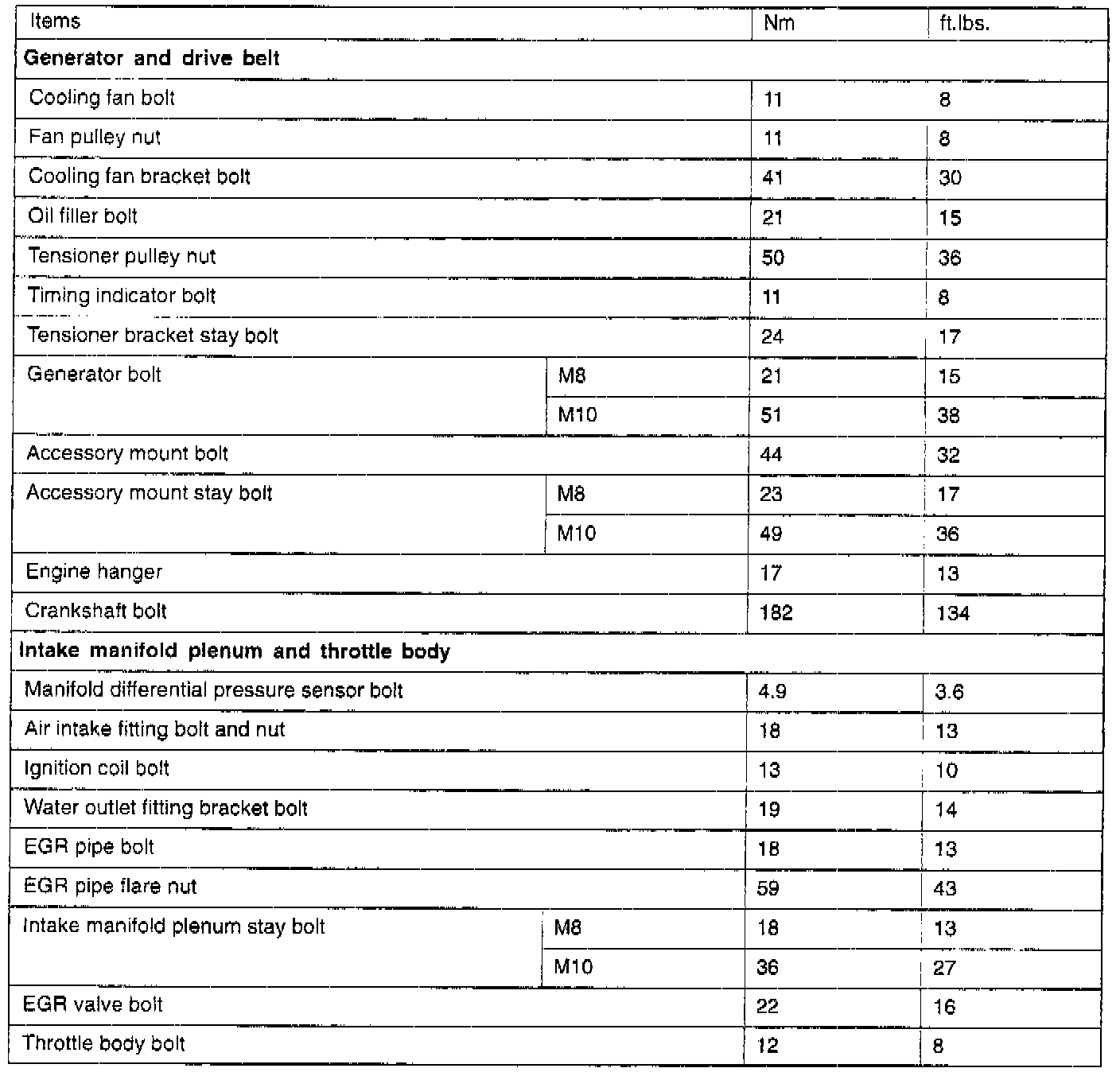

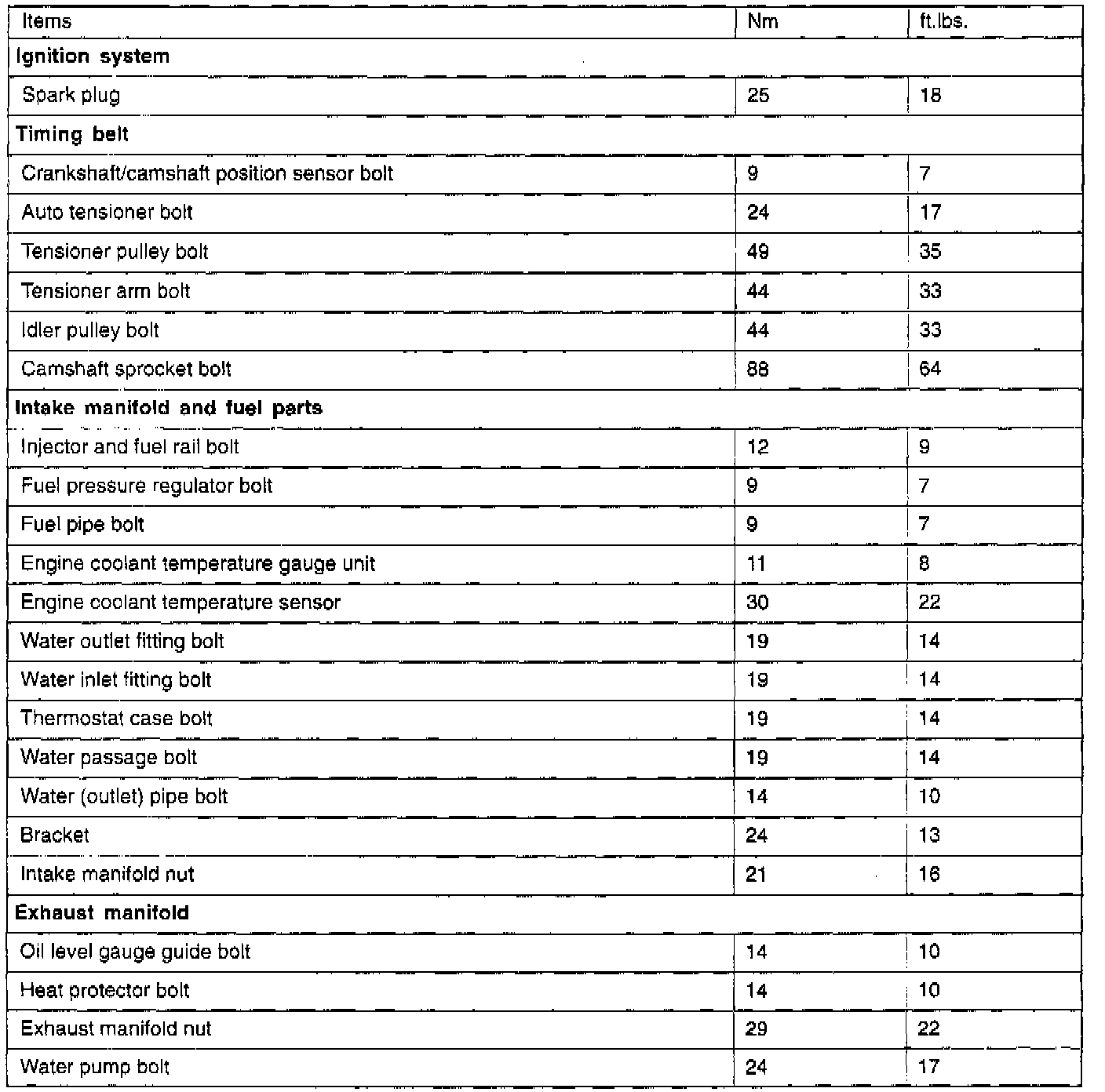

TORQUE SPECIFICATIONS
