Ignition Lock: Testing and Inspection

KEY INTERLOCK MECHANISM CHECK
Completely stop the vehicle and switch off the engine before making the check.





1. Check that the selector lever cannot be moved from the P position to any other position under the following conditions.

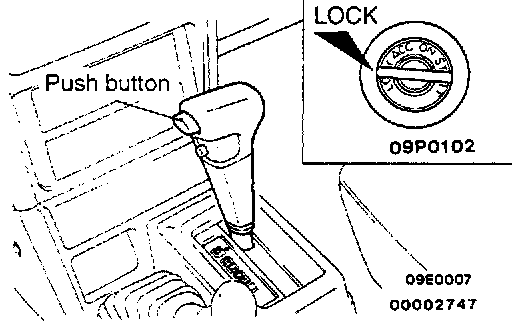

At the same time, check that the button cannot be pressed.

Ignition key position: LOCK or removed
Brake pedal: Depressed





2. Check that the selector lever can be moved smoothly from the position to any other position under the following conditions.
Press the button a few times and check that the selector lever moves smoothly.

Ignition key position: ACC
Brake pedal: Depressed
Button pressed





3. Check that the ignition key cannot be turned to the LOCK position at all positions of the selector lever other than P.
Check that the ignition key turns smoothly to the LOCK position when the selector lever is set to the P position and the button is released.





4. If the above checks are not okay, adjust the key interlock cable mechanism as follows.
1) Remove the front console assembly.
2) Move the selector lever to the P position.
3) Turn the ignition key to the LOCK position.
4) Loosen the nut clamping the key interlock cable.

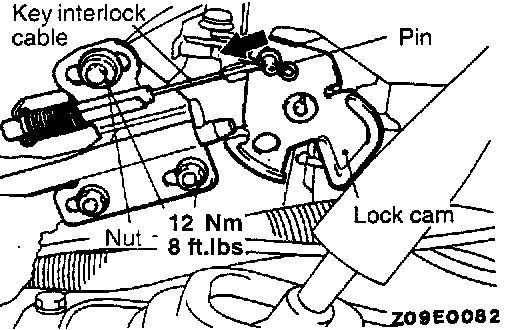

5) Gently push the lock cam until the pin stops in the direction of the arrow mark as shown in the illustration, and then tighten the nut to the specified torque to clamp the key interlock cable.
6) Install the front console assembly.
