System Diagram

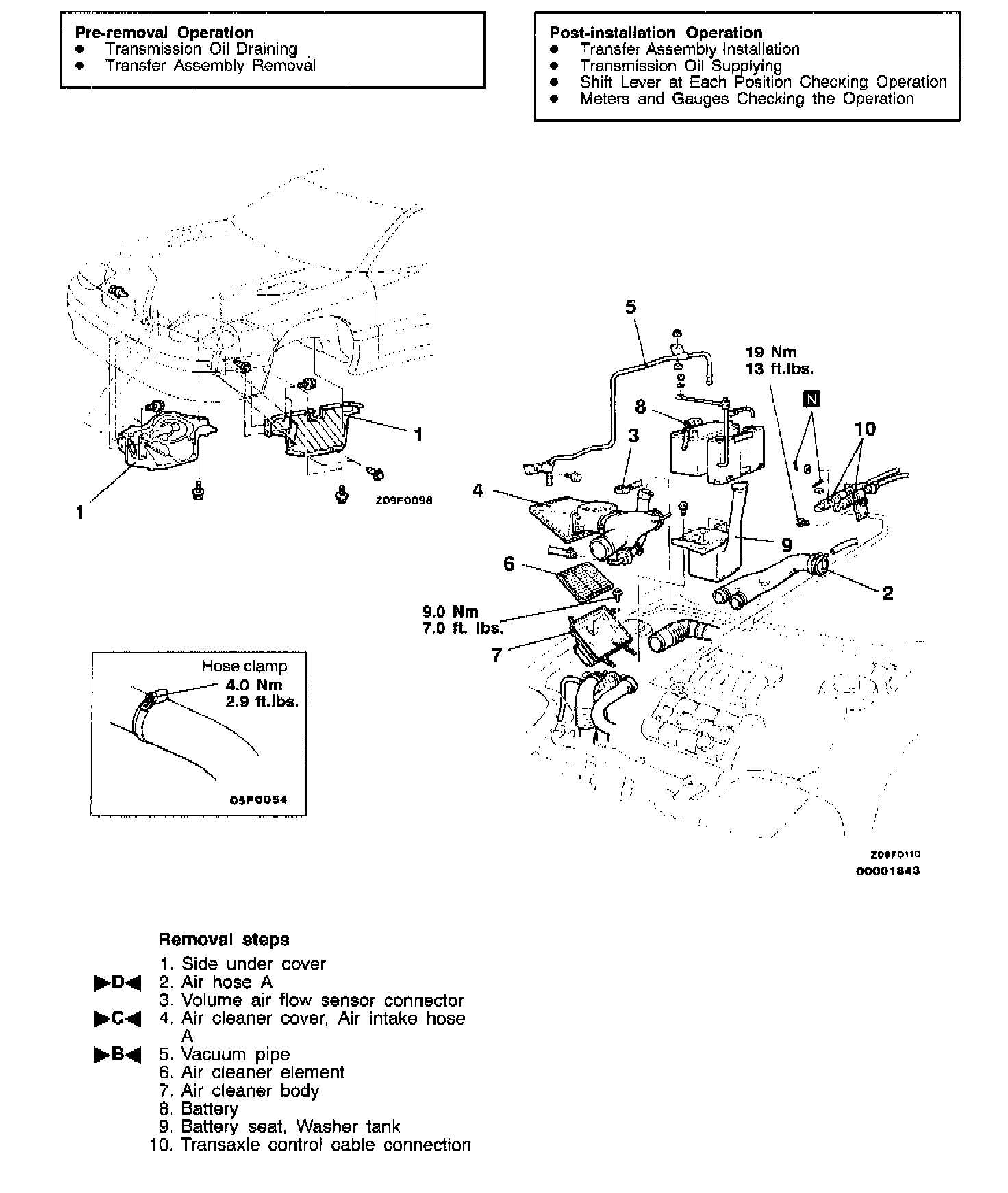

Part 1 Of 2:




Part 2 Of 2:





TRANSAXLE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
