Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1999
>>
3000GT VR-4 AWD V6-2972cc 3.0L DOHC MFI Twin Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>

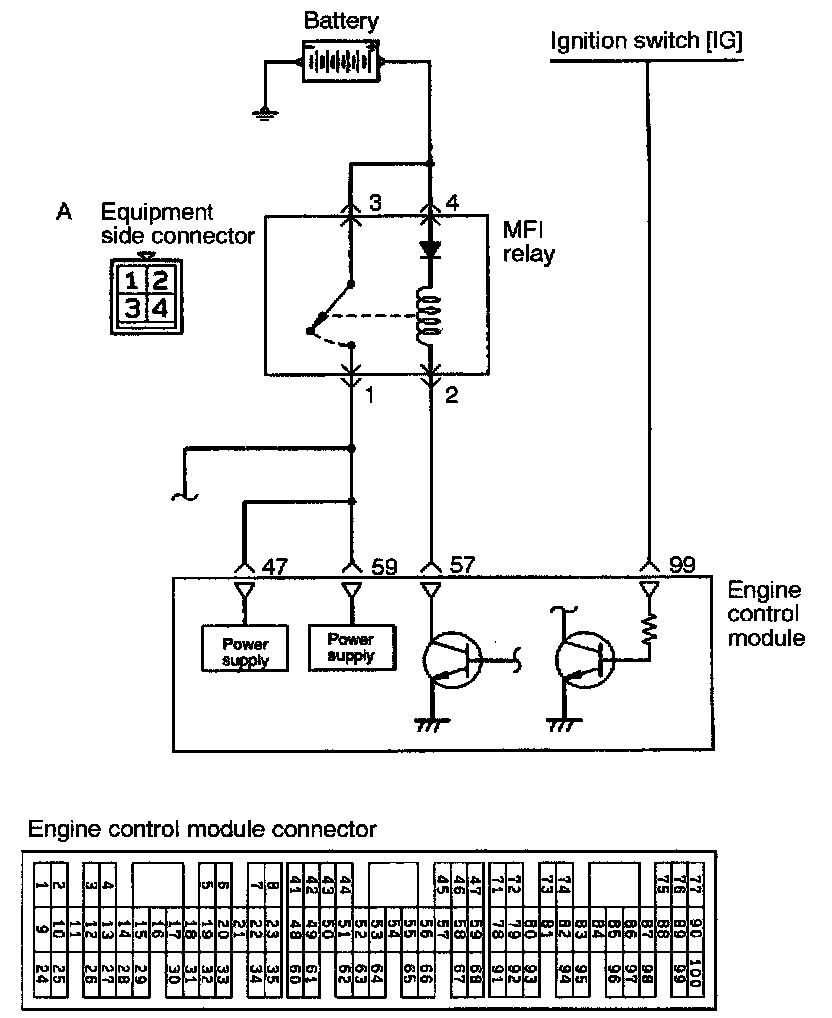

Main Relay (Computer/Fuel System)
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
