Electrical Diagrams

Power Seat (Part 1 Of 10):

J/B
R/B

Power Seat (Part 2 Of 10):

J/B
- ETACS-ECU
Instrument Panel ECM
Vehicle Speed Sensor

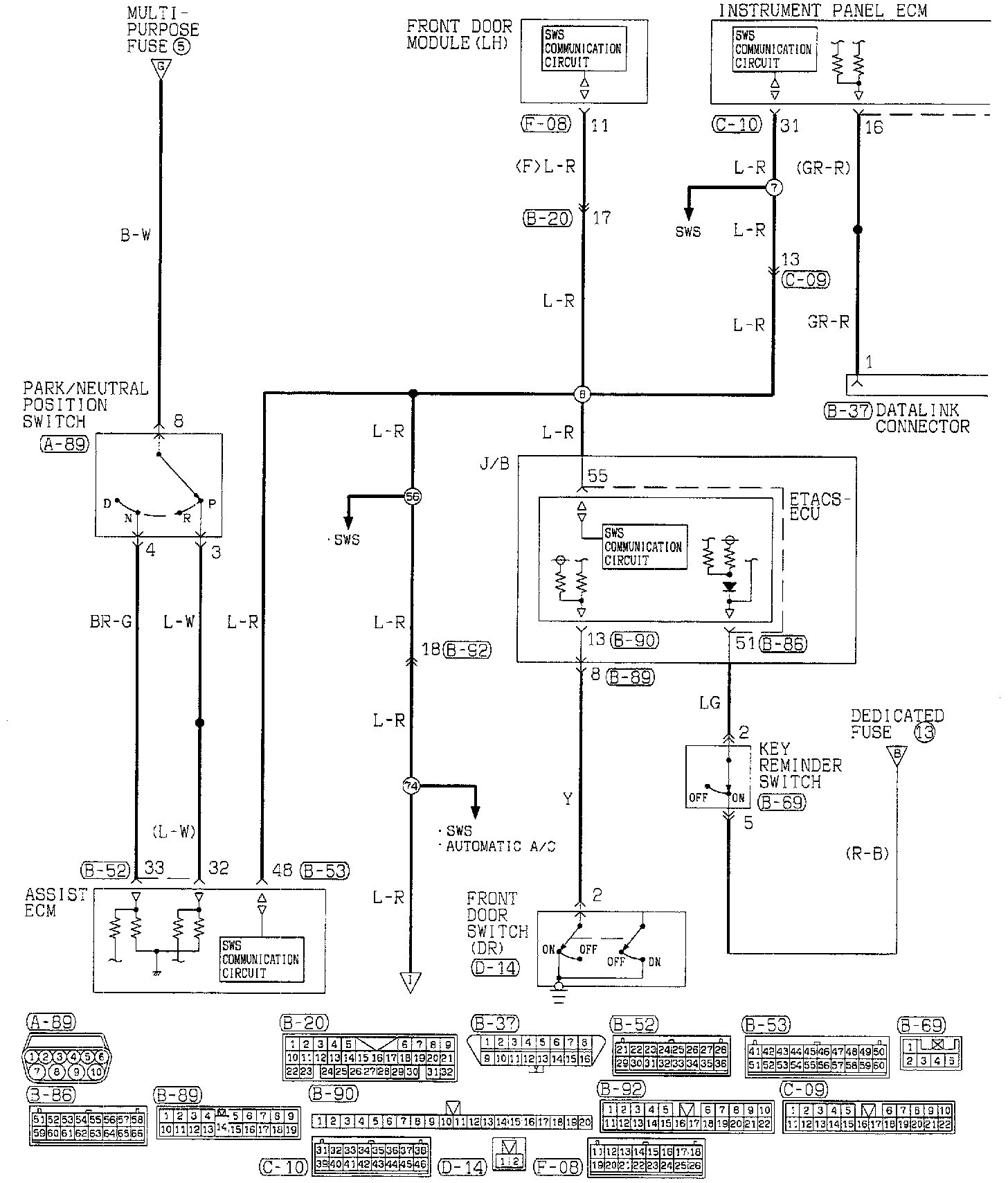

Power Seat (Part 3 Of 10):

Assist ECM
Datalink Connector
Front Door Module (LH)
Front Door Switch (DR)
Instrument Panel ECM
J/B
- ETACS-ECU
Park/Neutral Position Switch
Key Reminder Switch

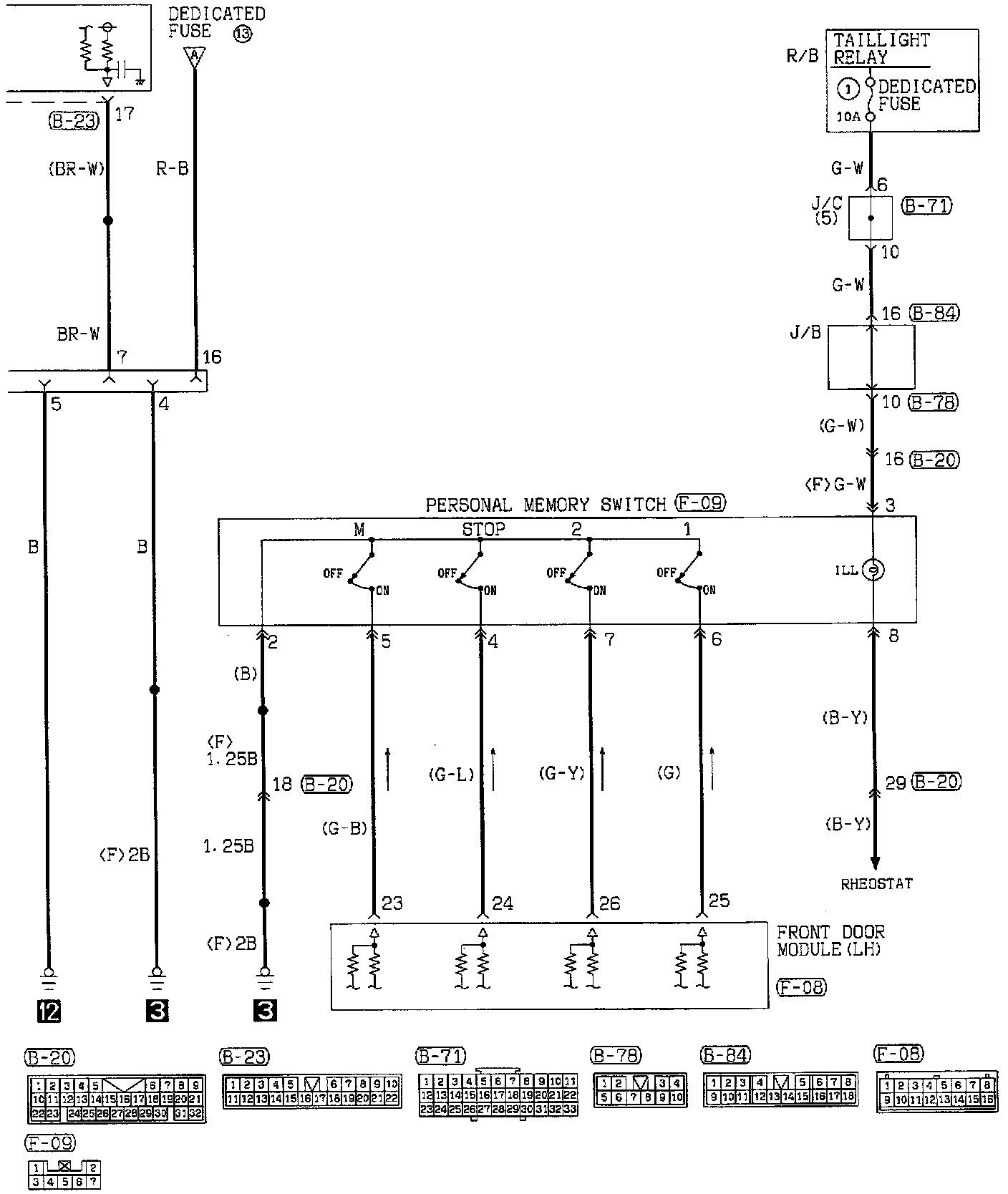

Power Seat (Part 4 Of 10):

Datalink Connector
Front Door Module (LH)
J/B
J/C (5)
Instrument Panel ECU
Personal Memory Switch
R/B

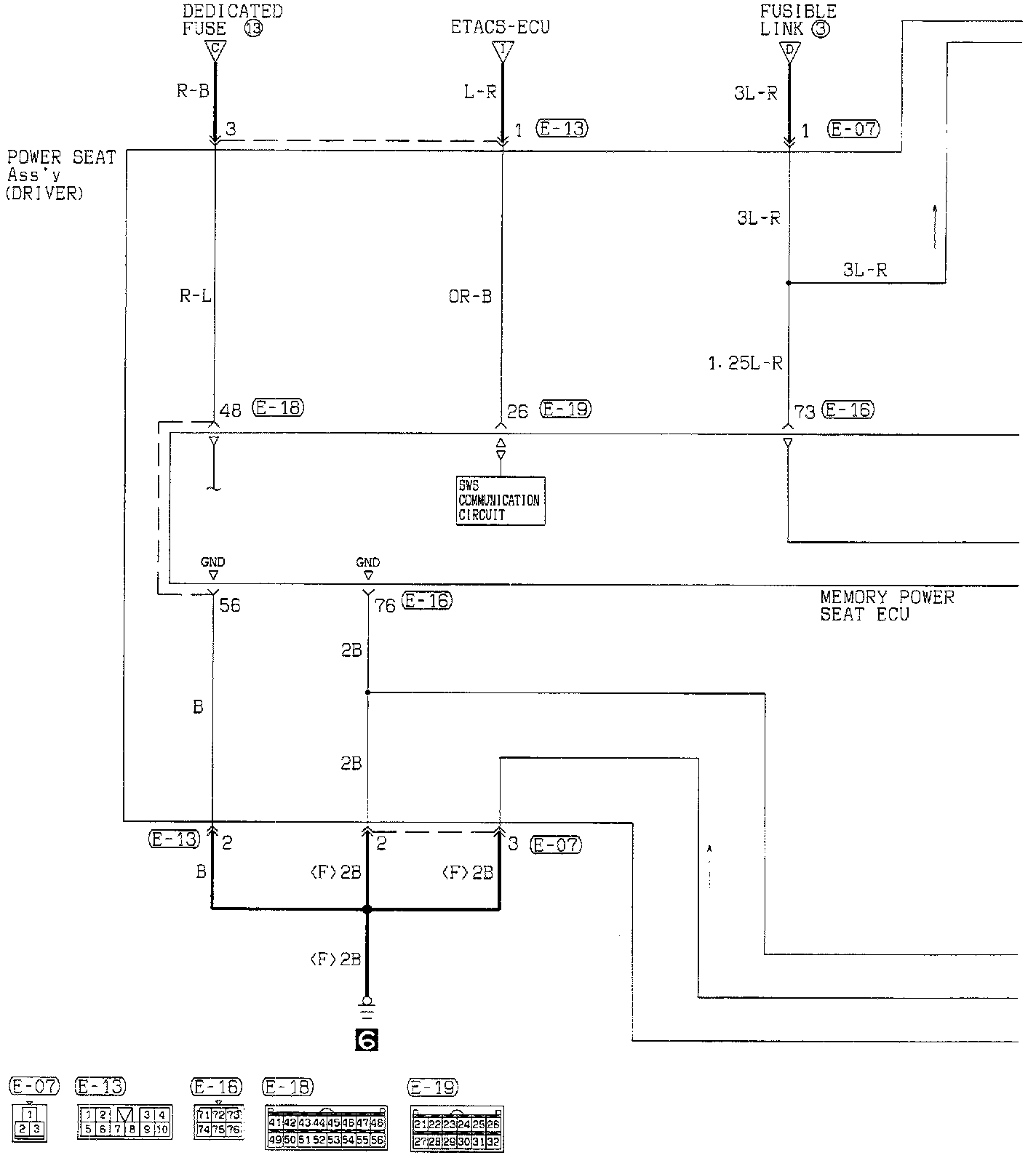

Power Seat (Part 5 Of 10):

Power Seat Assembly (Driver)
- Memory Power Seat ECU

Power Seat (Part 6 Of 10):

Power Seat Assembly (Driver)
- Seat Back Reclining Motor
- Seat Back Reclining Limit Switch
- Seat Cushion Slider Motor
- Seat Cushion Slider Limit Switch
- Manual Power Seat Switch
- Memory Power Seat ECU

Power Seat (Part 7 Of 10):

Power Seat Assembly (Driver)
- Front Height Motor
- Front Height Limit Switch
- Manual Power Switch
- Memory Power Seat ECU
- Rear Height Motor
- Rear Height Limit Switch

Power Seat (Part 8 Of 10):

Power Seat Assembly (Driver)
- Check Connector
- Front Height Position Sensor
- Memory Power Seat ECU
- Rear Height Position Sensor
- Reclining Position Sensor
- Slide Position Sensor

Power Seat (Part 9 Of 10):

Power Seat Assembly (Passenger)
- Front Height Motor
- Front Height Limit Switch
- Manual Power Seat Switch
- Rear Height Motor
- Rear Height Limit Switch

Power Seat (Part 10 Of 10):

Power Seat Assembly (Passenger)
- Manual Power Seat Switch
- Reclining Motor
- Slide Motor
