Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1999
>>
Diamante Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters

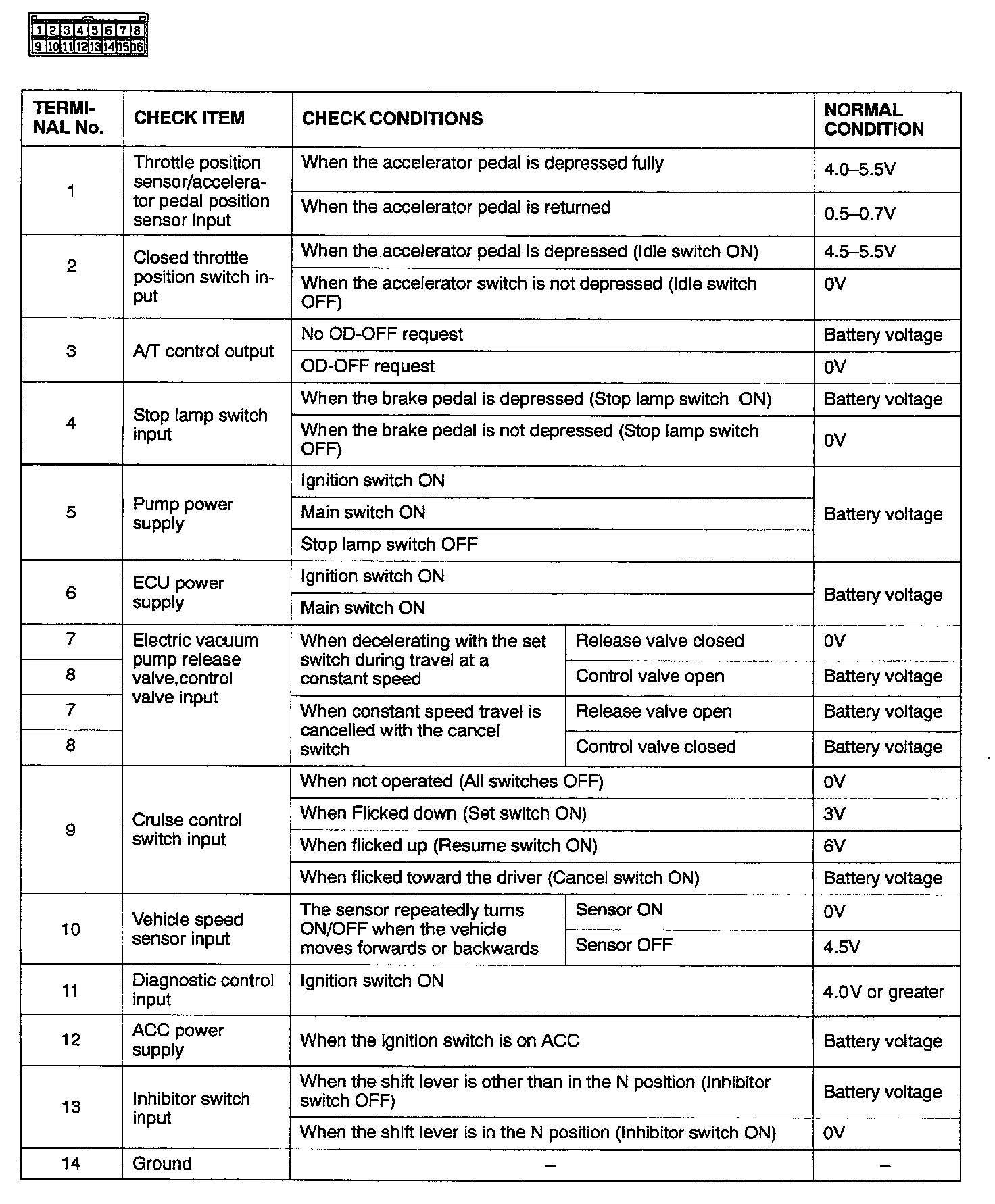

Pinout Values and Diagnostic Parameters
CHECK AT ECU TERMINALS
