Galant LS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Tape Player
>>

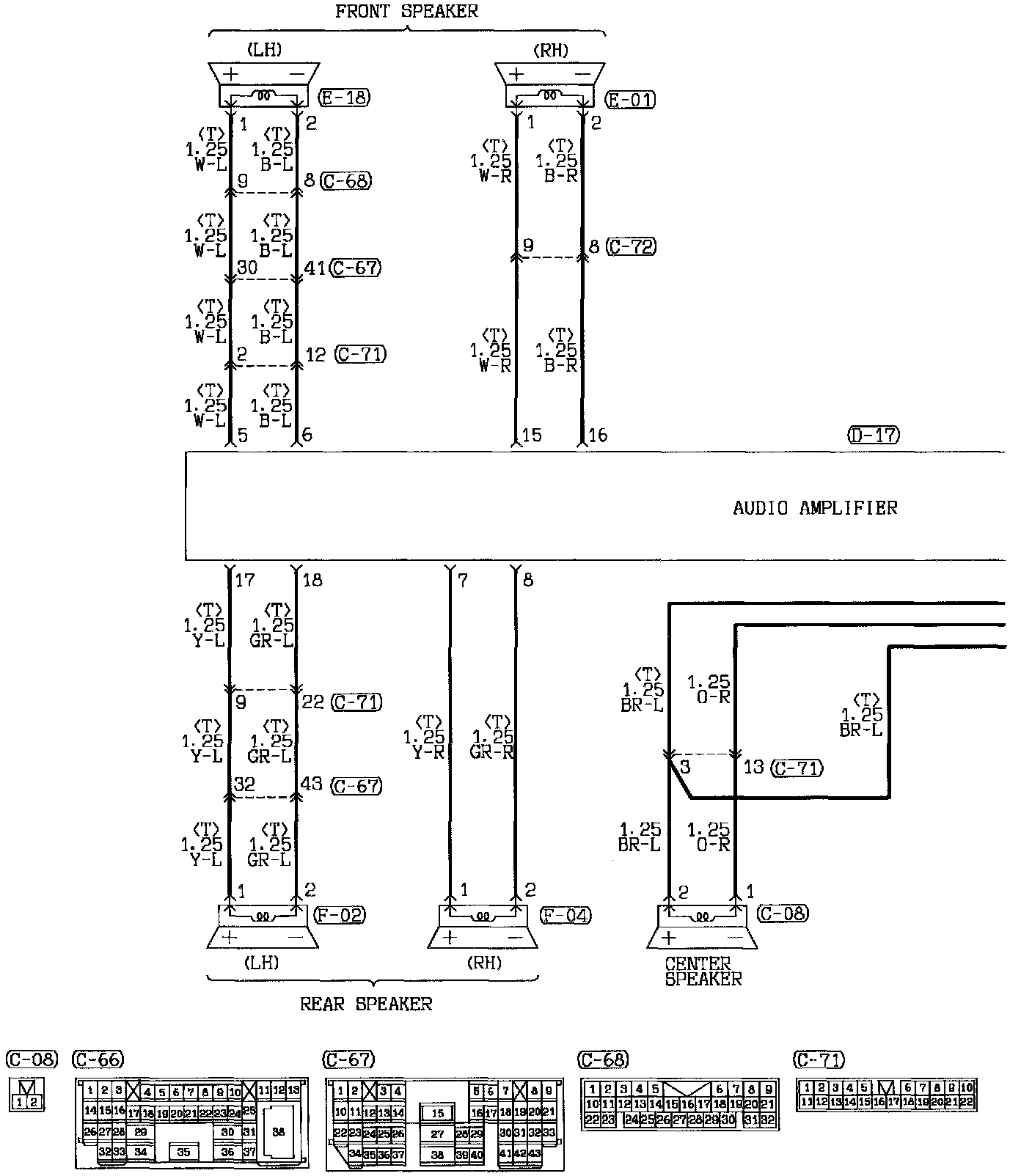

Seven Speaker System
Seven Speaker System
Radio And Tape Player (Part 1 Of 4):
Radio And Tape Player (Part 2 Of 4):
Radio And Tape Player (Part 3 Of 4):
Radio And Tape Player (Part 4 Of 4):
