Turn Signals: Service and Repair




REMOVAL AND INSTALLATION

WARNING:
- Before removal of the air bag module, refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.

REMOVAL SERVICE POINT




REAR COMBINATION LIGHT REMOVAL

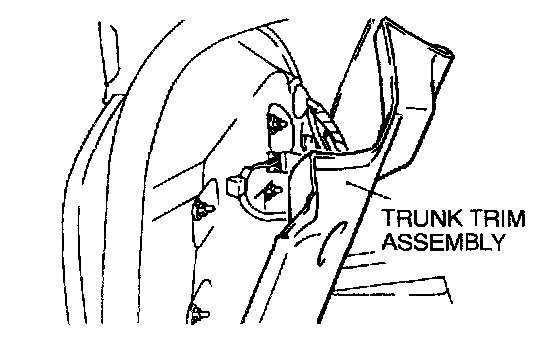

1. Remove the plastic stud cap, then turn up the trunk trim assembly as shown in the illustration. Remove the rear combination light mounting nuts and disconnect the connector.
2. Remove the rear combination light.
