10. Idle Speed Is Low (Improper Idle Speed)
COMMENT- In cases such as the above, the cause is probably that the intake air volume during idle is too small.
TROUBLESHOOTING HINTS
The most likely causes for this case:
- Malfunction of the IAC system.
- Malfunction of the throttle body.
DIAGNOSIS
Required Special Tools:

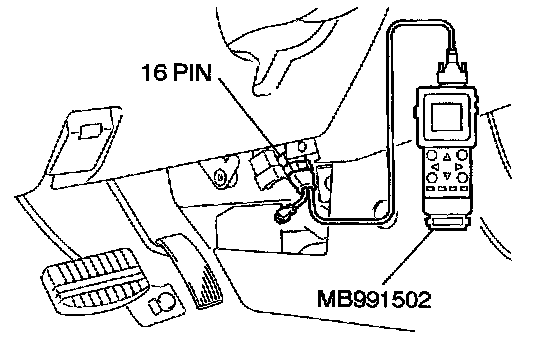

MB991502: Scan Tool (MUT-II)
CAUTION: To prevent damage to the scan tool, turn the ignition switch "OFF" before connecting or disconnecting the scan tool.
STEP 1. Using scan tool MB991502, read the diagnostic trouble code (DTC).
If DTC is not output, go to Step 2.
If DTC is output, refer Diagnostic Trouble Code Chart.
STEP 2. Check the idle air control (IAC) motor operation sound.
1. Check that the engine coolant temperature is 20° C (68° F) or below.
NOTE: Disconnecting the engine coolant temperature sensor connector and connecting the harness side of the connector to another engine coolant temperature sensor that is at 20° C (68° F) or below is also okay.
2. Check that the operation sound of the IAC motor can be heard after the ignition is switched "ON" (but without starting the engine).
- An operation sound should be heard. If a sound is heard, go to Step 3.
If no sound is heard, refer to DTC P0505 - Idle Control System Malfunction.
CAUTION: To prevent damage to the scan tool, turn the ignition switch "OFF" before connecting or disconnecting the scan tool.
STEP 3. Using scan tool MB991502, check data list.
1. Check the following items in the data list.
Data List Reference Table & Normal Scan Data Values
a. Item 21: Engine Coolant Temperature Sensor.
If the checks above meet the specifications, go to Step 4. If the checks above do not meet the specifications, repair or replace. Then confirm that the malfunction symptom is eliminated.
STEP 4. Adjust the basic idle speed.
Refer to Basic Idle Speed Adjustment for the adjustment procedure. Adjustments
Standard value: 750 ± 50 r/min
Check the malfunction symptom, and if not resolved, go to Step 5. Check the malfunction symptom, and if resolved, the check is completed.
STEP 5. Check the following items.
1. Carry out the following cleaning or adjustment.
a. Clean the throttle valve area. After cleaning or adjusting, confirm that the malfunction symptom is eliminated.
