Wire Color Codes

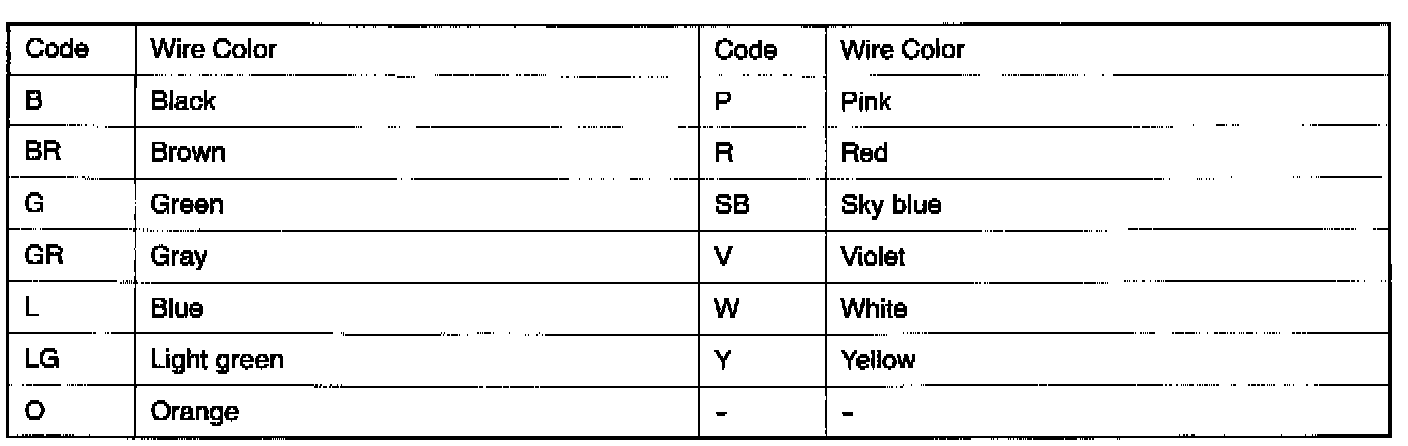

Wire Color Codes:

If a cable has two colors, the first of the two color code characters indicates the basic color (color of the cable coating) and the second indicates the marking color.

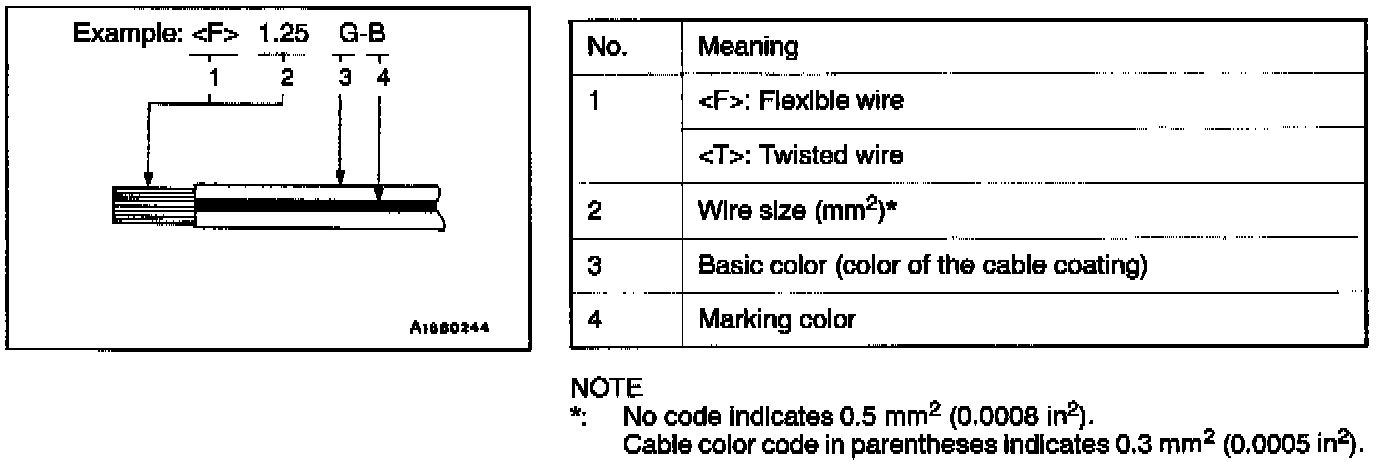

Example of Wire Color Code
