Keyless Entry Module: Testing and Inspection

KEYLESS ENTRY CONTROL UNIT INSPECTION
1. Remove the combination meter.

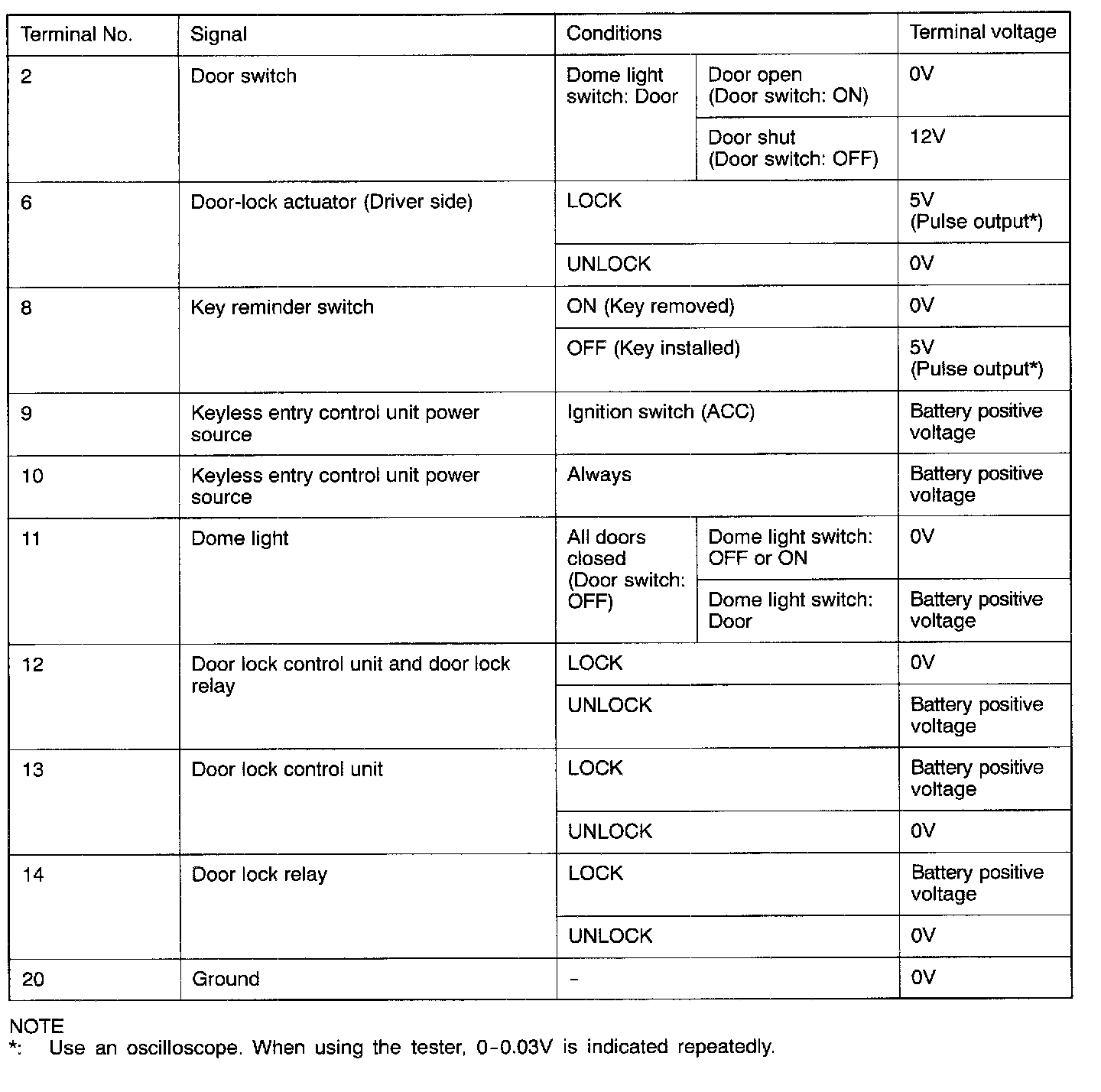

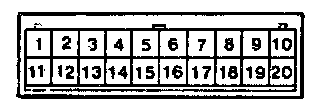

2. Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart below.
